2 Pole On-off Machinery Toggle Switch Wth Waterproof,Three Pole TPST 3-way Toggle Switch

2 Pole On-off Machinery Toggle Switch Wth Waterproof,Three Pole TPST 3-way Toggle Switch photo-1
2 Pole On-off Machinery Toggle Switch Wth Waterproof,Three Pole TPST 3-way Toggle Switch photo-2
2 Pole On-off Machinery Toggle Switch Wth Waterproof,Three Pole TPST 3-way Toggle Switch photo-3
2 Pole On-off Machinery Toggle Switch Wth Waterproof,Three Pole TPST 3-way Toggle Switch photo-4
2 Pole On-off Machinery Toggle Switch Wth Waterproof,Three Pole TPST 3-way Toggle Switch photo-5
2 Pole On-off Machinery Toggle Switch Wth Waterproof,Three Pole TPST 3-way Toggle Switch photo-6
Negotiable MOQ: 500 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
CHZJCZ
Model Number:
CZ806-D06
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Zhejiang, China
Brand Name CHZJCZ
Model Number CZ806-D06
Max. Current 20A
Max. Voltage 250V
Mechanical Life 10000times



SPECIFICATIONS OF OUR TOGGLE SWITCH :



  • The contact resistance :≤ 30mΩ
  • Dielectric  strength:1500VAC/MIN
  • Insulation Resistance:500V  AC  1000mΩ/MIN
  • Rated : 15A  125V AC
  •              20A  250V AC
  • Temperature -25~85.c
  • Mechanic life :≥10000cycles

 Drawing for this toggle switch:



 2 pole on-off machinery toggle switch wth waterproof,Three pole TPST 3-way toggle switch.

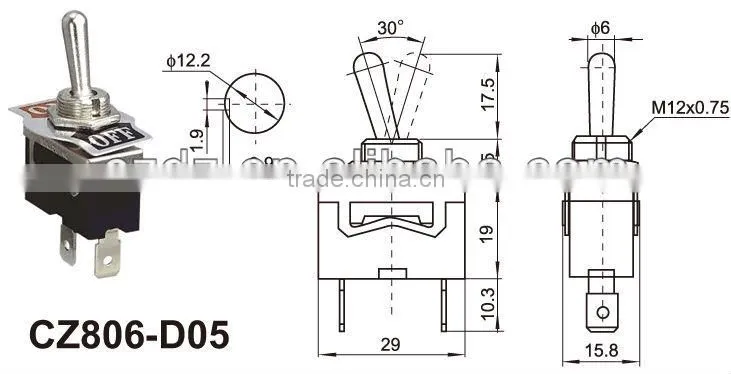

  • Toggle switch structure drawings

             2 pole on-off machinery toggle switch wth waterproof,Three pole TPST 3-way toggle switch.

    16

    Screws

    6

    Steel

    LQ235

    15

    Terminal

    6

    Brass

    H62

    14

    Case

    1

    Bakelite

    PF2C3-431J

    13

    Rivet

    2

    Copper

    T3

    12

    Plunger

    2

    PC

    L-1250

    11

    Plunger Holder

    1

    PC

    L-1250

    10

    Spring

    2

    Steel

    T9A

    9

    Bracket

    2

    Brass

    H62

    8

    Rivet

    4

    Copper

    2#

    7

    Contactor

    4

    AgSnO2

    2#

    6

    Movable Terminal

    2

    Brass

    H62

    5

    Housing

    1

    Steel plate

    08F

    4

    Nameplate

    1

    Aluminium

    A1-1

    3

    Nut

    2

    Steel plate

    08F

    2

    Bushing

    1

    Steel

    LQ235

    1

    Handle

    1

    Steel

    LQ235

    No

    Name

    Number

    Material

    Remark

    2 pole on-off machinery toggle switch wth waterproof,Three pole TPST 3-way toggle switch

  • Waterproof can be choose for this type 2 pole on-off machinery toggle switch wth waterproof,Three pole TPST 3-way toggle switch

  • Application

         They are widely used in household appliances, electric force, telecommunications, machine tool, vessel, textile, printing, Mining machine, Mustic Instrument, etc.



  • Others



             1.Heavy duty type,panel mounting.
          2.Can used with waterproof cover or safety guard.
          3.Free sample is available !

          4.If you need any parts, please kindly send us your drawings or sample for quotation.
