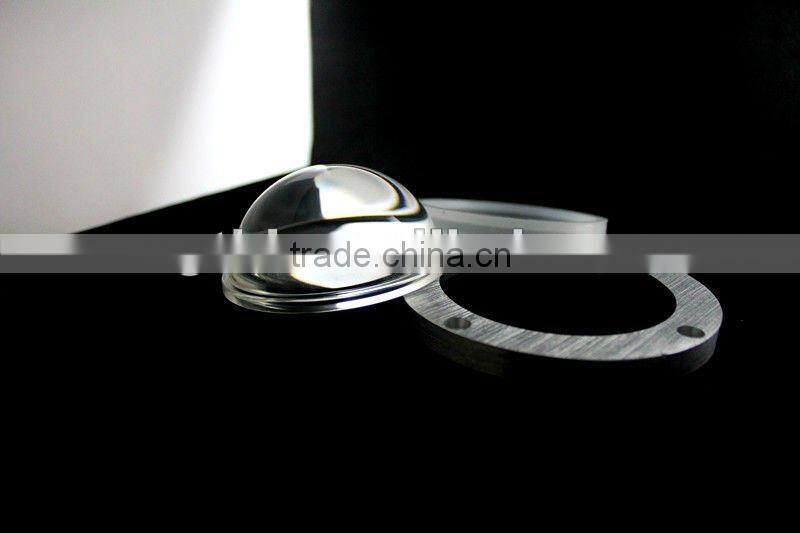

60 degree high bay lens ,high bay lighting lens /high power led lens

Specifications

1) 60 glass led lens
2)apply for 20w.30w COB Led
3) optical glass (bososilicate ) material
4) 60 degree high bay light len

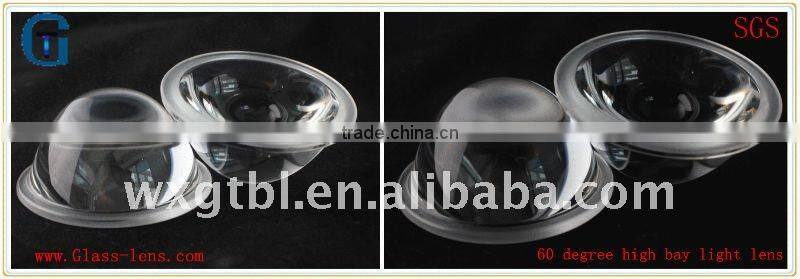

  glass led lens 60 degree    (GT-66-6-1NA)



Products Parameters











Led lens, led glass lens, led industrial light lens
1,Part Number: GT-66-6

2,Material:Optical grade glass
3,Beam Angle: 60 degree, transparent surface
4,Transmittance:97%
5,Working Temperature: -35 to 500°C
6,Dimension: Dia 66mm / Height 33.68mm
7,Suitable led brand: 30~100W COB led.

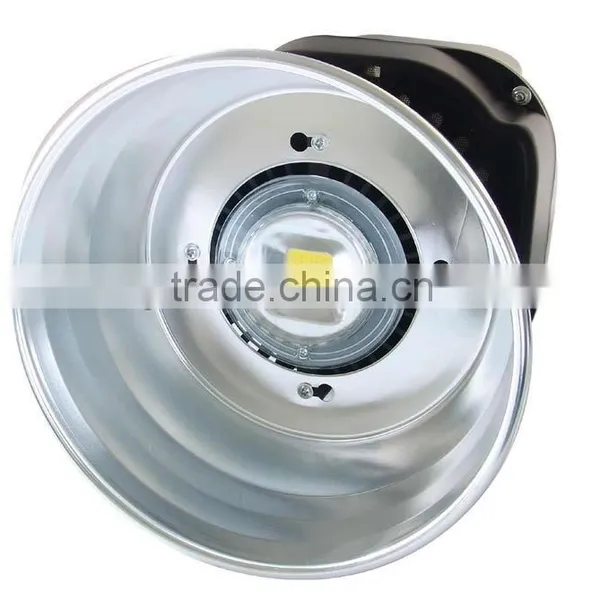

8,Suitable led light: led high bay light, led streetlight, car light etc.
9,Certificates: SGS, ROHS

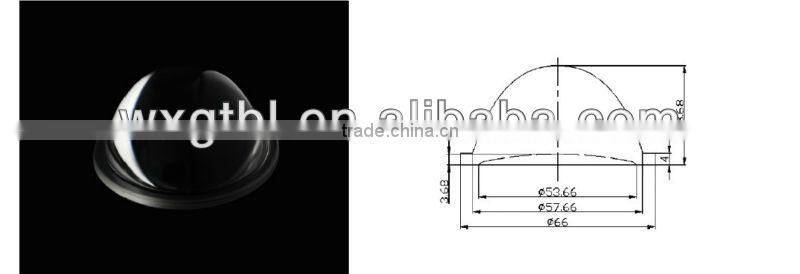

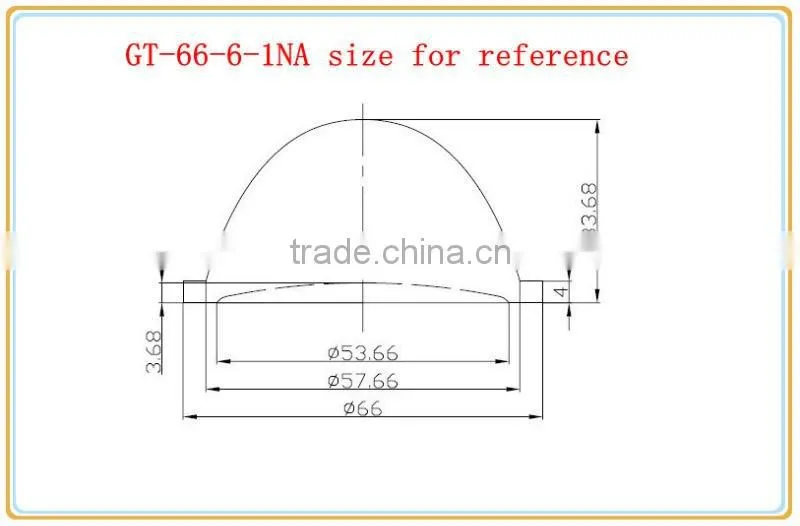

glass led lens  Dimension for your reference :



we have about more than 200 type glass lens for different application .

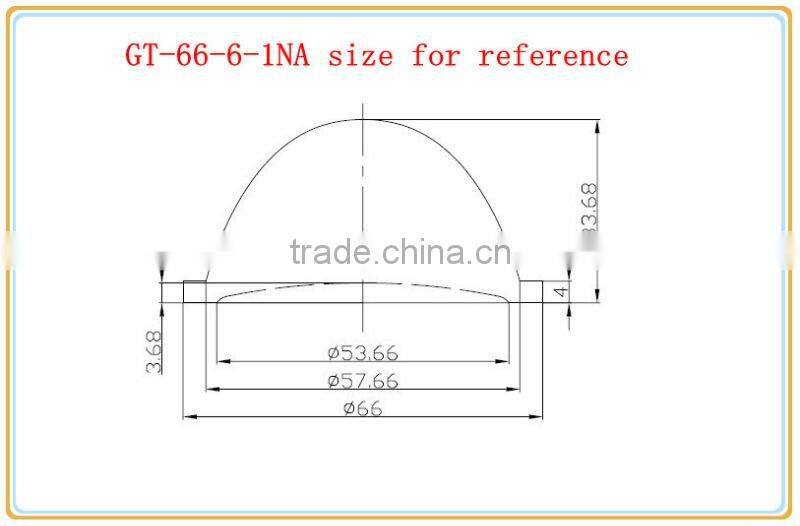

here is the size for GT-66-6,60degree



Dia 66mm / Height 33.68mm









out   diameter	inner   diameter	inner concave diameter	height	edge thick	inner concave height
66mm	57.66mm	53.66mm	33.68mm	4mm	3.68m

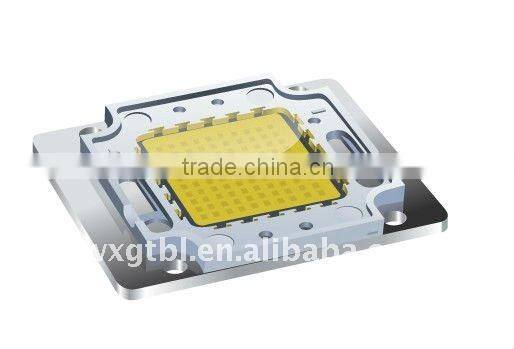

3suitable for 30w-100w and above high power led

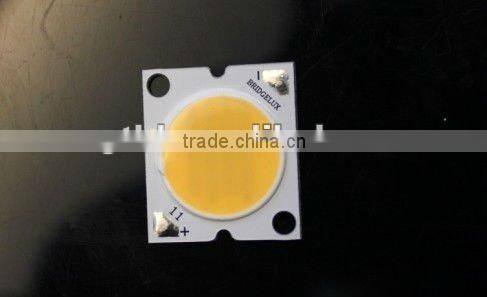

professionally advice you to use led chip  Die area  :< 53MM  ,If you want to use larger chip ,pls refer to our 78MM high bay lighting  lens and 100 mm high bay lighting lens







 8)

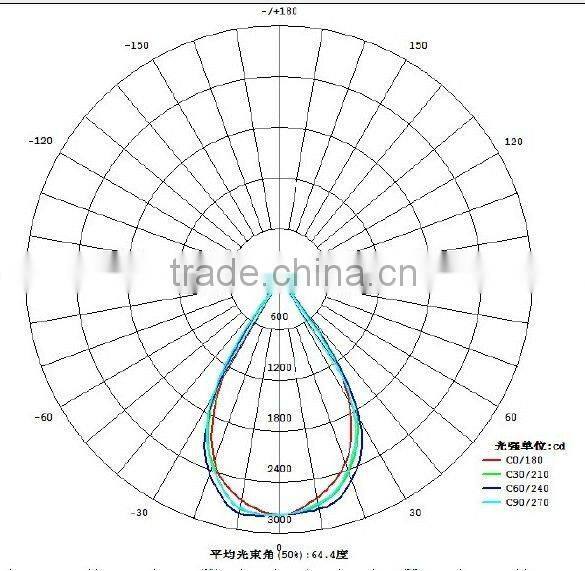

GT-66-6-1NA light distribution











GT lens feature



1)clear and transparent, no mould markd,no inside bubble and dirts



2)can match up all kinds of different high power  integrated led ,uniform facula,no collapsar,shadow and dark

3)adopt high precisy aspheric design and superior optical glass, strictly perform ROHS environmental standard

  4)application range: suitable for wokshop,factory,road toll,gas station,supermarket,sadium ,exhibition hall and other led lighting

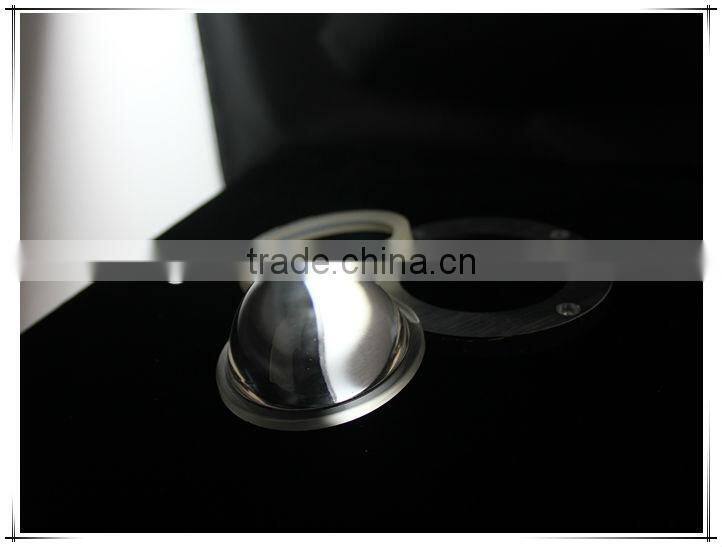

                                                                             GT-66-6-1NA

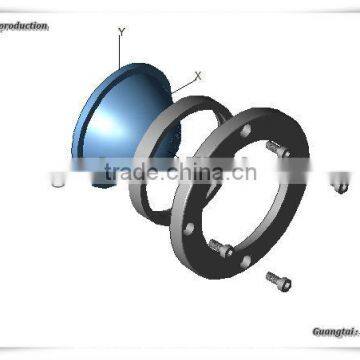

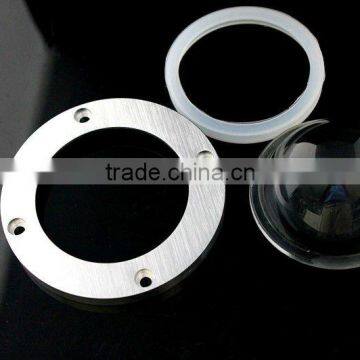

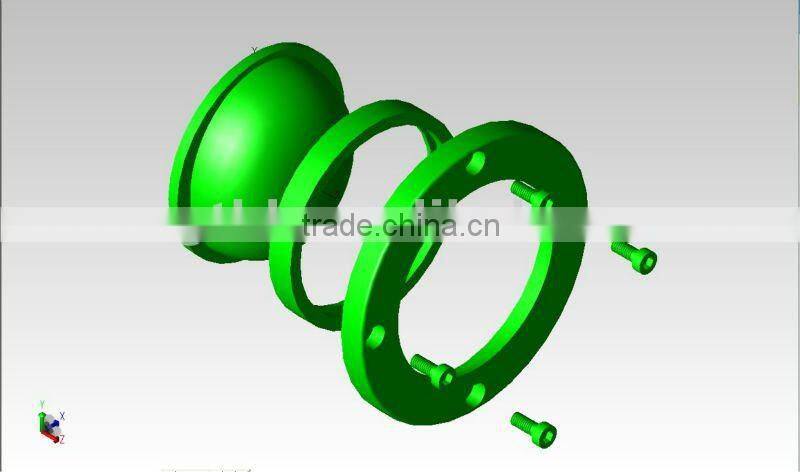

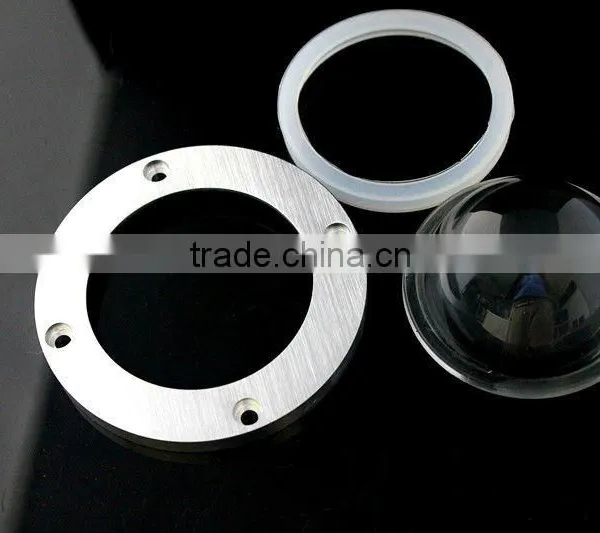

 accessories of the lens:



the standard aceeessbories is silicone gasket and metal holder .

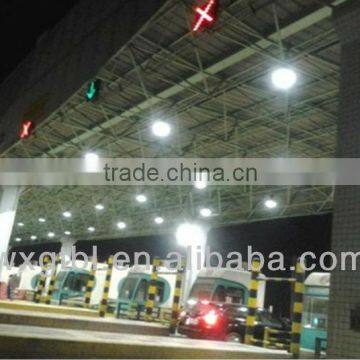

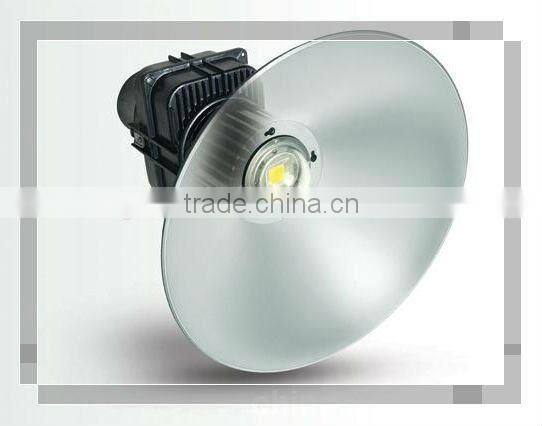

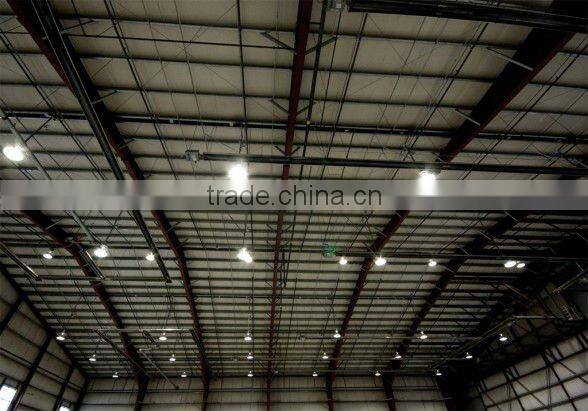

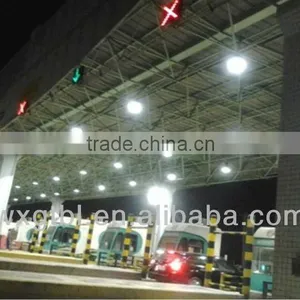

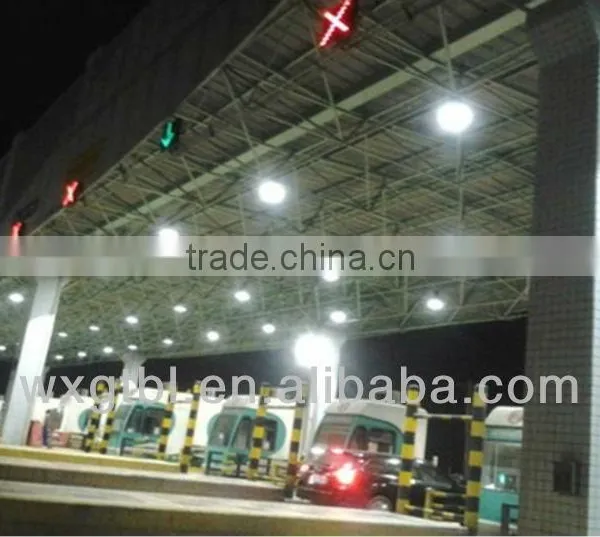

 application

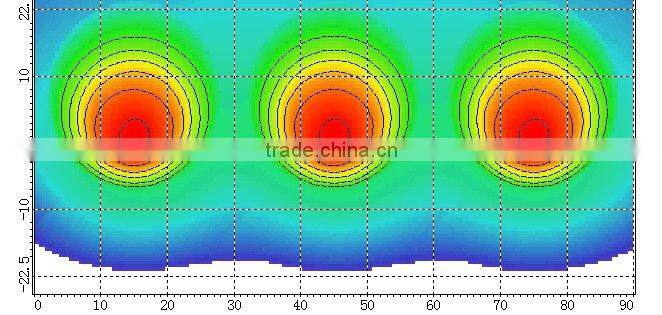

Light energy distribution

the red colour stands for strong power .

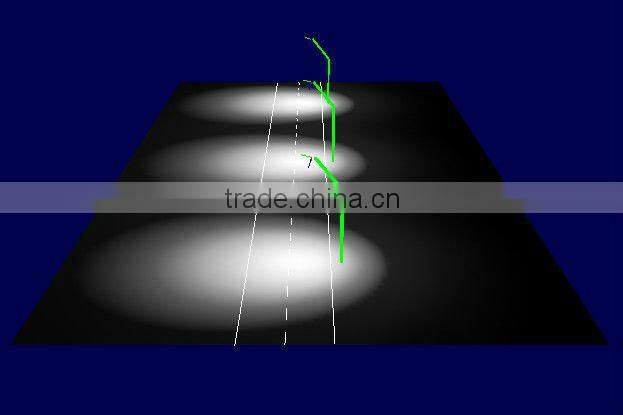

light simulation effect chart

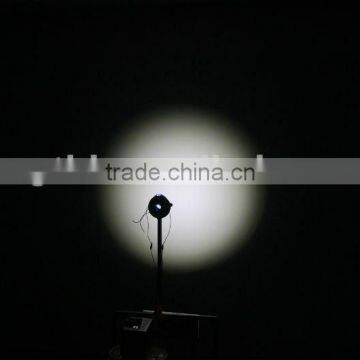

light pattern for GT-66-6





packing information for your reference
