Specifications
1) 109mm glass lens 120 degree2) optical glass (bososilicate ) material
3) 94% light transmittance
4) good light effect

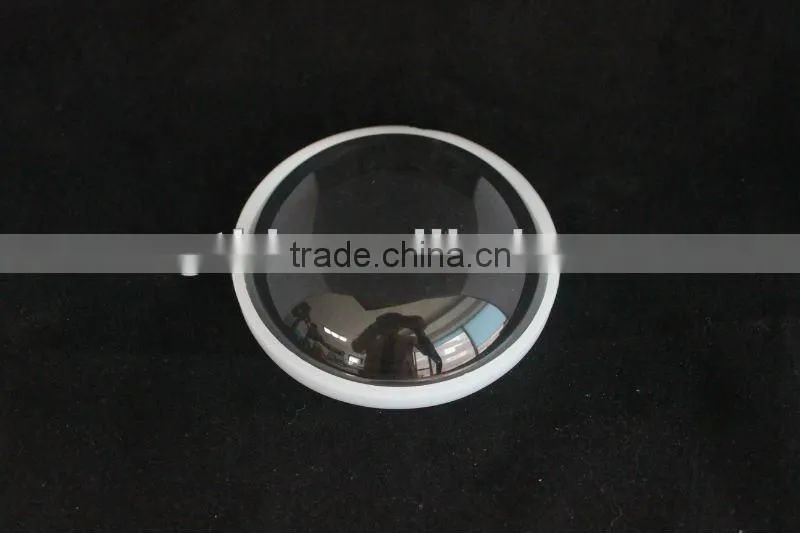

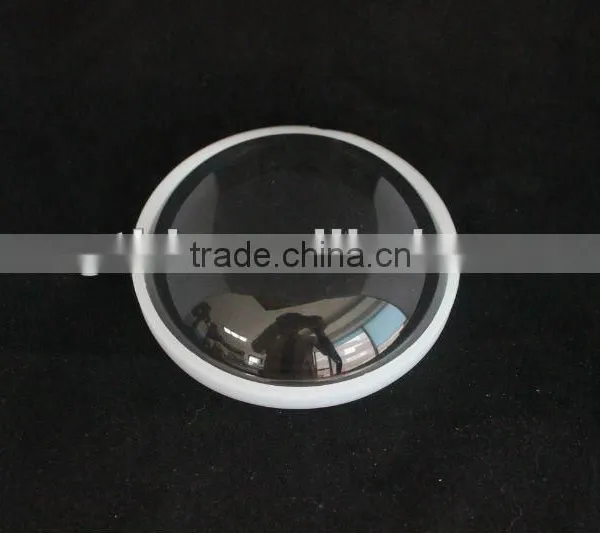

109mm glass lens 120 degree ( GT-109-2-1NA)
1)material: optical glass(borosilicate),K9,BK7,B270
2) light transmittance: 95%( coated lens can up to 97%)
3) refractive index: 1.474
4)working temperature: -50-500 degree
5) angle :120 degree
6) suitable for 50w, 80w, 1000w, 150w, 200w high power led

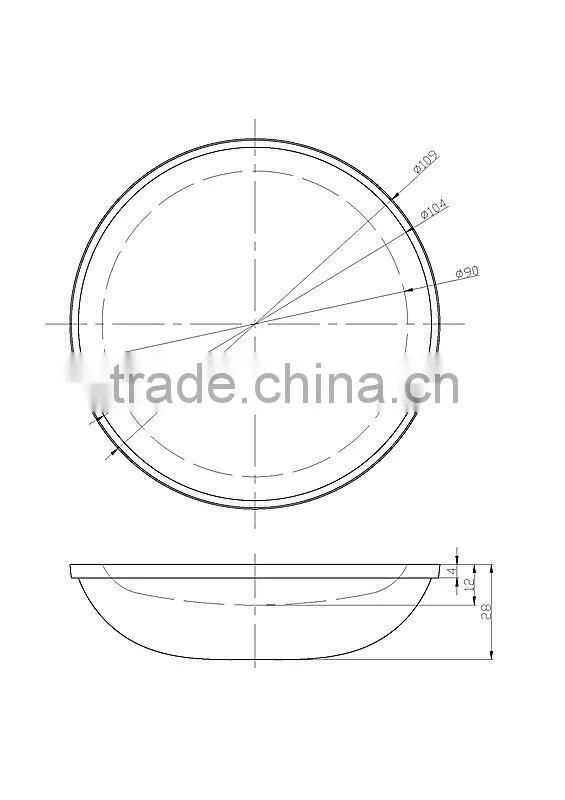

7) GT-109-2-1NA drawing
GT-109-2-1NA Size for reference
| outer diameter | inner diameter | height | edge thickness | inner concave diameter |
| 109MM | 104mm | 28mm | 4mm | 90mm |
GT-109-2-1NA
6) structure: concave-convex, with a groove in bottom
7) we can make based on your samples and drawing
8) main feature
a: can match up all kinds of different high power led (integrated led ),can be suitable for 30w-100w led
b: adopt high precisy aspheric design and superior optical glass, strictly perform ROHS environmental standard
c: clear and transparent, no mould markd,no inside bubble and dirts
9) application range:
Suitable for workshop, factory, road toll, gas station, supermarket, stadium, exhibition hall and other led lighting
Advantages:
1) Made of borosilicate glass, high heat resistant: 500-600 centigrade
2) clear and transparent, no mould markd,no inside bubble and dirts
3) adopt high precision aspheric design and superior optical glass, strictly perform ROHS environmental standard
4) Customized lens available
GT lens company feature:
1) we can provide technical and professional optical system
2) we can supply the lens with advanced optical technology
3) we can offer lens group with different optical lens
4) we have studied out the reflector cup which will offer the well mixed facular and angle
5) we can provide optical modules and accessories.
