DFASY-B Series Rotogravure Printing MachineThis machine is suitable for printing roll plastic, film, OPP,nonwoven cloth, PVC

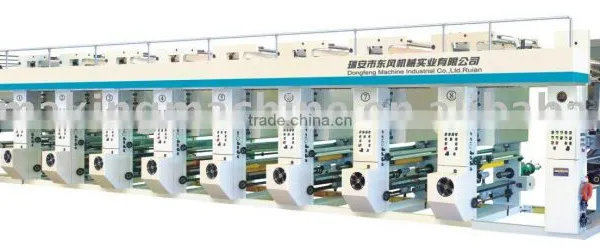

DFASY-B Series Rotogravure Printing Machine
This machine is suitable for printing roll plastic, film, OPP,nonwoven cloth, PVC
PRINTING MACHINE ;ROTOGRAVURE PRINTING MACHINE
FEATURE:
1.The whole set is in permutation and combination style,possible to add reduce color class and add on reverse printing mechanism as required by customers.
2.Frequency conversing synchronic timing is adopted for both main machine drawing and reeling.
3.Pneumatic backpressure moving erasing knife,non-shaft pneumatic conic node printing plate loading,prompt and convenient printing plate changing.
4.Adopting control method of auto permanent tension and magnetic powder brake for unreeling.
5.Adopting pneumatic elements for control of all printing pressure roller,drawing pressure roller and open & close of oven.
6.Sealed type lengthened oven,fast drying with less energy consuming,and auto constant temperature control system.
7.Printing ink circulating system,inflatable type shaft draw in and draw out.
8.High-accuracy gear transmission box,adopting patented technique.
Reeling and unreeling reel by tumbling dual-stationg mechanism,realizing auto material change without machine halt.
10.Adopting superhard aluminum alloy guide roll after anode oxidationg processing and in static balance.
11.Full automatic computer registering devices and computer stilll examining graphics.
12.Diesel oil air-stove system is available for stove heating.
MAIN TECHNICAL PARAMETERS:
| Model | QDASY-B800/Six colors |
| Length of printing | 380-1100mm |
| Width of printing | 800mm |
| Speed of printing | 10-120m/min |
| Precision of overprint | -0.12~0.12mm |
| Total power | 72kw |
| Weight of machine | 22800kg |
| Overall dimension(L x W x H) | 1300mmX2750mmX2800 |
