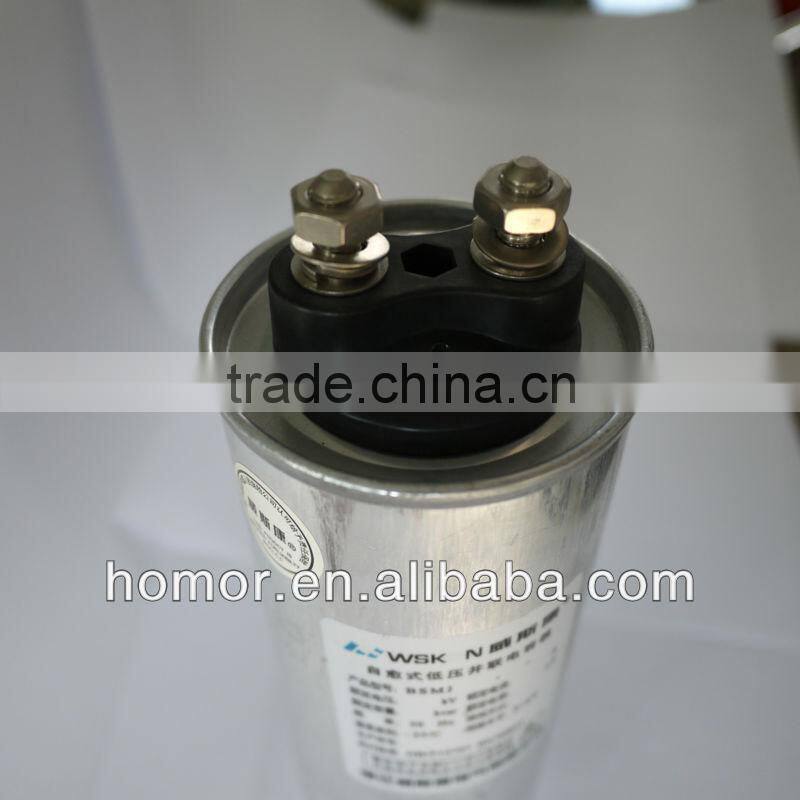

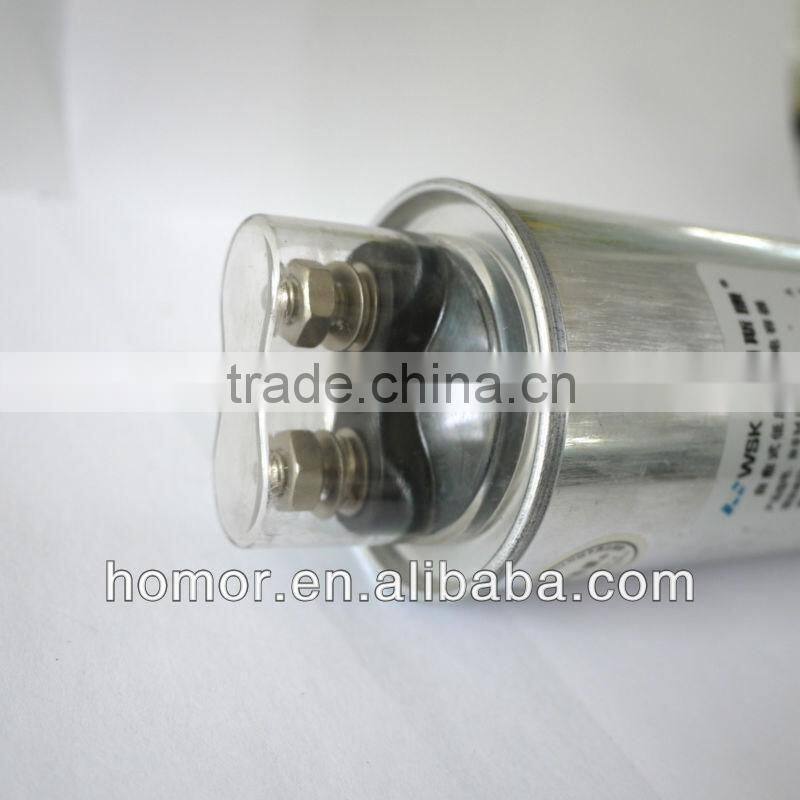

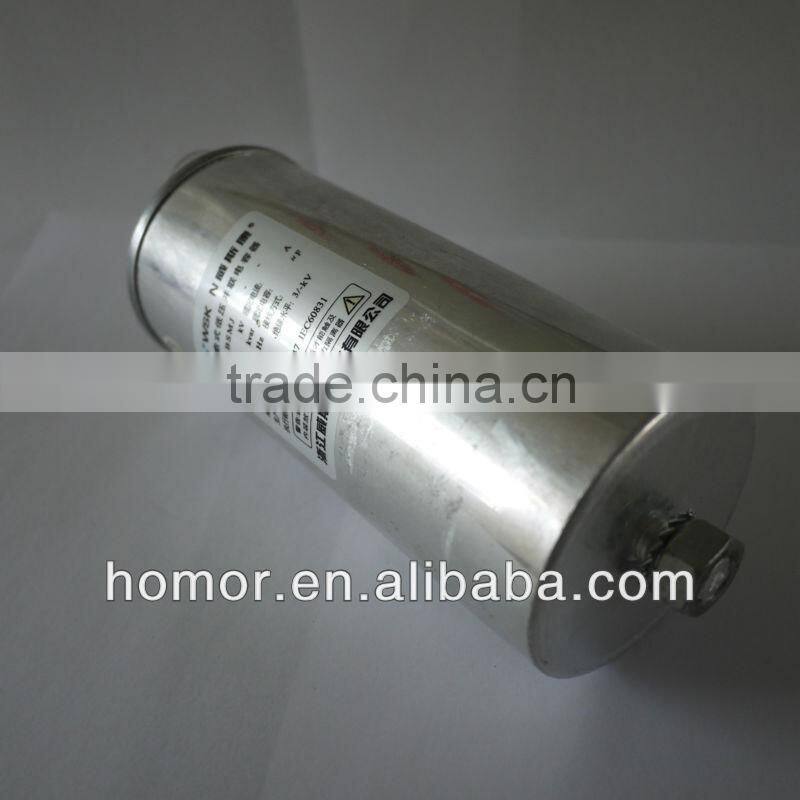

Resistors Capacitors

1.small size, lightweight
2. high reliability
3.High safety
4.Low dielectric loss and perfect self-healing performance

Main features:

1.Use the imported material, with small size, lightweight, and easy installation and maintenance.
2.Adopts fantastic golden and silver metal printing(patent).
3.With high reliability, the market quality satisfaction rate is 99.99%.
4.High safety, with discharge resistance and over-pressure protective device inside.
5.Low dielectric loss and perfect self-healing performance.
6.Adopts nontoxic, environment friendly impregnated material made of solid capacitor wax.

Main Technical Specification:

1,Apply standard:GB12747-2003 IEC60831-1:1996
2,Apply condition:Indoor,-25°C ~ 40°C,humidity:<=80%RH,height<=2000MSL
3,Rated voltage:230VAC,250VAC,400VAC,415VAC,450VAC,525VAC,690VAC,750VAC,1050VAC,1200VAC
4,Rated output:1~100Kvar
5,Capacitance tolence:0~10%
6,Voltage endurance:2Un 10 seconds between T-T,3000VAC 10 seconds between T-C.
7,Insulating resistance:more than 1000MΩ between T-C at 500 VDC in one minute.
8,Loss angle tangent: Less than 0.1%(rated voltage at 20°C).
9,Ceiling voltage:1.1Un(root mean square value )
10,Ceiling current:1.3In(root mean square value )
11,Self-discharge feature: The terminal voltage will reduce below 50V in 3 minutes after disconnecting from power line.
12,The capacitor's temperature rise in normal operation is less than 8°C.
