Home > Products > Bubble Film Making Machine > 7 Layer Air Bubble Film Making Machine

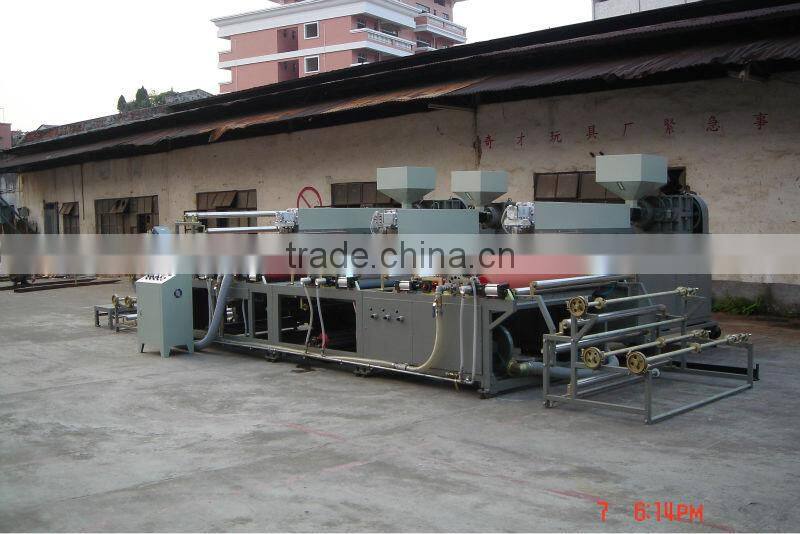

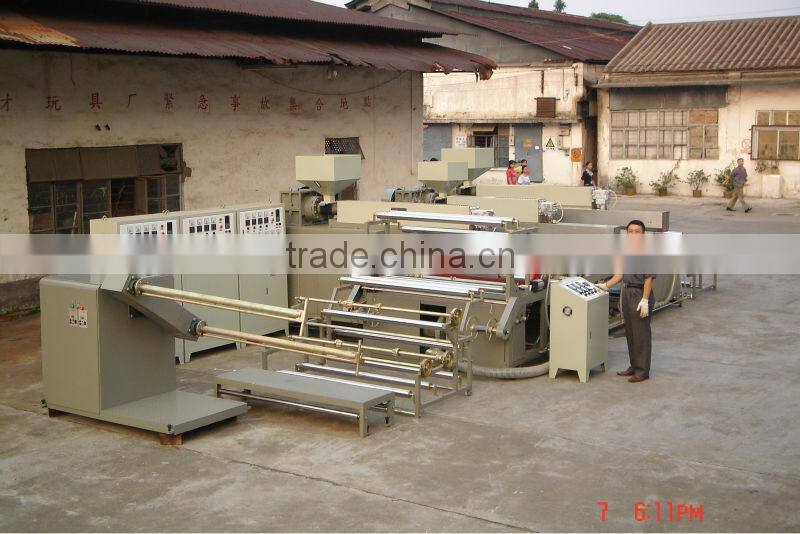

7 Layer Air Bubble Film Making Machine

FOB Price

US$ 1,000 - 80,000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Application	Film
Plastic Processed	PE	Blow Moulding Type	Extrusion Blow Moulding
Automatic	Yes	Place of Origin	Zhejiang, China
Brand Name	Guotai	Model Number	GT-2000
Voltage	380v	Power(W)	30kw
Weight	8000kg	Certification	CE
Warranty	one year	After-sales Service Provided	Engineers available to service machinery overseas

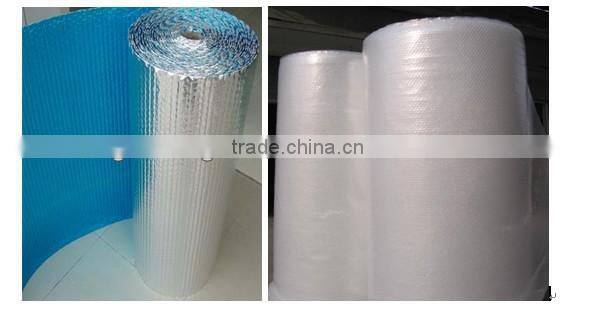

This bubble film laminating machine is mainly used for the construction(e.g.: heat preservation, insulation, fire-proof).

Name:7 layer bubble film laminating machine

Model:	JDFPE-2000
Die Head Width	2100mm
T Die Amount	3 sets
Finished Film Width	2000mm

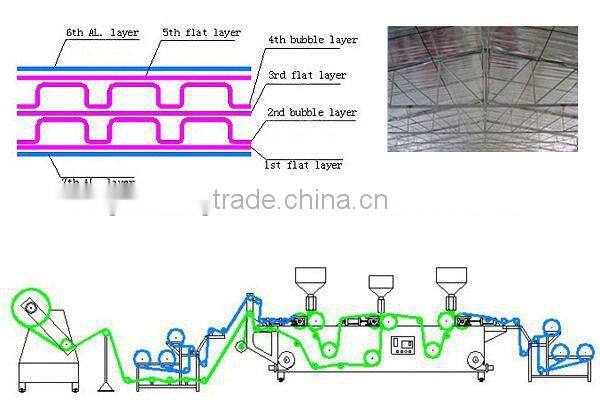

Film Layer Struction:	7 layer
Extruder Amount	3 sets
Screw Diameter	90mm/90mm/80mm
L/D (Screw Length/Diameter)	30: 1
Bubble Size (machine with one size of bubble roller, each extra bubble roller set cost 12,000 USD)	φ10x4.5mm (meet to customer needs)
Capacity:	150-180Kg/h
Motor power	30kw/30kw/22kw
Total Power:	256 kw
Machine Dimension	10.5m9.0m3.8m
Machine Weight	13T
Power Supply	380V/50HZ
