Specifications
The finished bubble film has good cushioning effect, shock resistance and heat-sealing performance, widely used in packing.Product Name: DFPE-1000-2500 Series PE Air Bubble Film Making Machine
Features:
1. Robust and reliable.
2. This model can also be used for films with Two layer film machine.
3. Suitable for a wide spectrum of materials, including LDPE, LLDPE, and recycled PE.
4. Can produce films with various bubble sizes from ø 6- ø 32, by changing the roller.
5. Index revolving winder is easy to operate.
6. Variable speed drive can greatly reduce energy consumption.
Technical Parameter:
Model |
DFPE-1000 |
DFPE-1200 |
DFPE-1500 |
Screw Diameter |
Φ60mm |
Φ60mm |
Φ65mm |
L/D |
30:1 |
30:1 |
30:1 |
Main motor |
15KW |
15KW |
18.5KW |
Gear box |
146 hard tooth gear box |
146 hard tooth gear box |
173 hard tooth gear box |
Film width |
1000mm |
1200mm |
1500mm |
Roller width |
1030mm |
1230mm |
1530mm |
T-die size |
1030mm |
1230mm |
1530mm |
T-die material |
Mould steel material |
Mould steel material |
Mould steel material |
Output |
50kg/h |
60kg/h |
70kg/h |
Total Power |
48kw |
58kw |
68kw |
Bubble cylinder size |
10×4mm or 6×3mm |
10×4mm or 6×3mm |
10×4mm or 6×3mm |

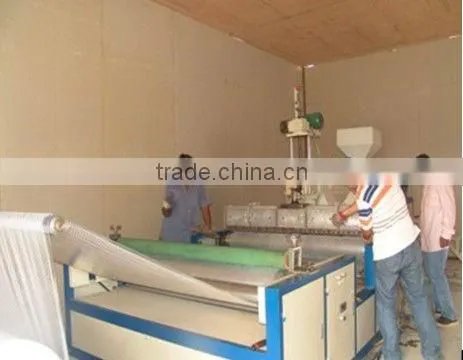

Machine in workshop:

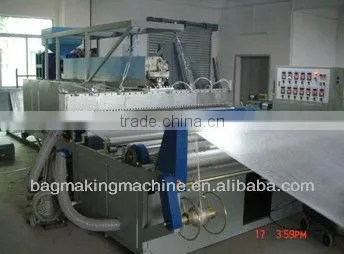

Machine exported
Finished Product Photoes
