Home > Lights & Lighting > LED Encapsulation Series > COB LED > High CRI 7W 10W 11W 17W 20W 26W 30W 50W White Epistar Chip 50000 Lumens Cob Led

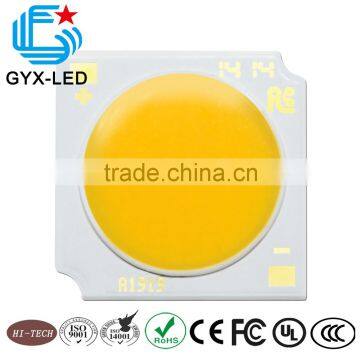

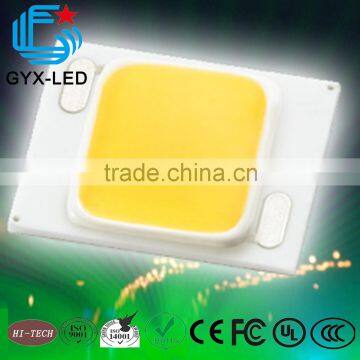

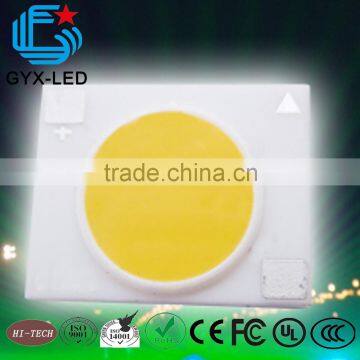

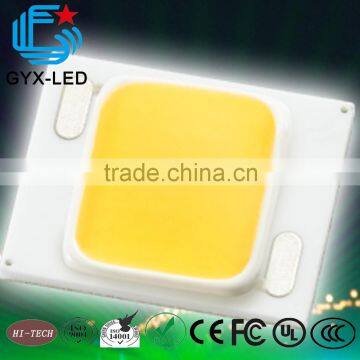

High CRI 7W 10W 11W 17W 20W 26W 30W 50W White Epistar Chip 50000 Lumens Cob Led

High CRI 7W 10W 11W 17W 20W 26W 30W 50W White Epistar Chip 50000 Lumens Cob Led thumbnail-1
High CRI 7W 10W 11W 17W 20W 26W 30W 50W White Epistar Chip 50000 Lumens Cob Led thumbnail-2
High CRI 7W 10W 11W 17W 20W 26W 30W 50W White Epistar Chip 50000 Lumens Cob Led thumbnail-3
High CRI 7W 10W 11W 17W 20W 26W 30W 50W White Epistar Chip 50000 Lumens Cob Led thumbnail-4
High CRI 7W 10W 11W 17W 20W 26W 30W 50W White Epistar Chip 50000 Lumens Cob Led thumbnail-5
High CRI 7W 10W 11W 17W 20W 26W 30W 50W White Epistar Chip 50000 Lumens Cob Led thumbnail-6
High CRI 7W 10W 11W 17W 20W 26W 30W 50W White Epistar Chip 50000 Lumens Cob Led photo-1
High CRI 7W 10W 11W 17W 20W 26W 30W 50W White Epistar Chip 50000 Lumens Cob Led photo-2
High CRI 7W 10W 11W 17W 20W 26W 30W 50W White Epistar Chip 50000 Lumens Cob Led photo-3
High CRI 7W 10W 11W 17W 20W 26W 30W 50W White Epistar Chip 50000 Lumens Cob Led photo-4
High CRI 7W 10W 11W 17W 20W 26W 30W 50W White Epistar Chip 50000 Lumens Cob Led photo-5
High CRI 7W 10W 11W 17W 20W 26W 30W 50W White Epistar Chip 50000 Lumens Cob Led photo-6
US$ 0.02 - 0.1 MOQ: 10000 Pieces
Key Specifications
Get Latest Price
Model Number:
GYX-COB1919WW-13
Chip Material:
Other, GaN
Emitting Color:
Warm White
Contact Supplier Request Quote Chat Now
Shenzhen GYX Optoelectronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen Hk
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Model Number GYX-COB1919WW-13
Chip Material Other, GaN
Emitting Color Warm White
Luminous Intensity 90-120Lm/W
Luminous Flux(lm) 700-6200lm
Optical Attenuation(%) 1
Power Other, 4w/7w/9w/10w/11w/13w/17w/20w/26w/30w/50w
Power Dissipation 80
Color Rendering Index(Ra) 90
Color Temperature 2700K/3000K/4000K/6500K
Operating Temperature(℃) -40, 85
Storage Temperature(℃) -40, 85
Place of Origin Guangdong, China
Brand Name GYX
Certification CE

High CRI 7W 10W 11W 17W 20W 26W 30W 50W white Epistar Chip 50000 lumens cob led

Features

1, RoHS Compliant

2, High luminous intensity output

3, Excellent character appearance

4, Low voltage and current operating

5, Ultra-low power consumption

6, Solid-state LED chip based

7, Long life-span

8, Easy mounting on printed circuit board and sockets

9, IC compatible

10, Certificates: RoHS and Reach compliant

11, Type:  cob led

 High CRI 7W 10W 11W 17W 20W 26W 30W 50W white Epistar Chip 50000 lumens cob led

Product Details



COB 1916 SERIES
Part Number Color
Temperature		 Vf(V) Test
Condition(mA)		 Power
(W)		 Luminous
Flux(lm)		 Lm/W Thermal
Resistance		 CRI
RF-W5ZM16T09 5000 K 34-40 320  9  1000-1250 110  1.8  >80
RF-W4ZM16T09 4000 K 34-40 320  980-1200 108  1.8  >80
RF-W3ZM16T09 3000 K 34-40 320  900-1100 100  1.8  >80
RF-W2ZM16T09 2700 K 34-40 320  820-1050 95  1.8  >80

RF-W5ZM16T11 5000 K 34-40 400  11  1250-1500 110  1.8  >80
RF-W4ZM16T11 4000 K 34-40 400  1200-1450 107  1.8  >80
RF-W3ZM16T11 3000 K 34-40 400  1100-1350 100  1.8  >80
RF-W2ZM16T11 2700 K 34-40 400  1030-1250 92  1.8  >80



                                COB 1512 A SERIES

Part Number Color
Temperature		 Vf(V) Test
Condition(mA)		 Power
(W)		 Luminous
Flux(lm)		 Lm/W Thermal
Resistance		 CRI
RF-W5ZM15T04-S 5000 K 9-10 360  4  360-430 105  1.8  >80
RF-W4ZM15T04-S 4000 K 9-10 360  350-420 102  1.8  >80
RF-W3ZM15T04-S 3000 K 9-10 360  325-390 95  1.8  >80
RF-W2ZM15T04-S 2700 K 9-10 360  310-370 91  1.8  >80

RF-W5ZM15T07-S 5000 K 11-14 540  7  730-940 112  1.8  >80
RF-W4ZM15T07-S 4000 K 11-14 540  710-910 109  1.8  >80
RF-W3ZM15T07-S 3000 K 11-14 540  690-860 106  1.8  >80
RF-W2ZM15T07-S 2700 K 11-14 540  620-760 95  1.8  >80




RF-W5ZM15T11-S 5000 K 34-40 400  11  1275-1400 110  1.8  >80
RF-W4ZM15T11-S 4000 K 34-40 400  1245-1350 105  1.8  >80
RF-W3ZM15T11-S 3000 K 34-40 400  1145-1200 100  1.8  >80
RF-W2ZM15T11-S 2700 K 34-40 400  1020-1150 95  1.8  >80



RF-W5ZM15T09-S 5000 K 34-40 320  9  1040-1250 110  1.8  >80
RF-W4ZM15T09-S 4000 K 34-40 320  1000-1200 105  1.8  >80
RF-W3ZM15T09-S 3000 K 34-40 320  930-1150 100  1.8  >80
RF-W2ZM15T09-S 2700 K 34-40 320  850-1070 95  1.8  >80




COB 1512 B SERIES

Part Number Color
Temperature		 Vf(V) Test
Condition(mA)		 Power
(W)		 Luminous
Flux(lm)		 Lm/W Thermal
Resistance		 CRI
RF-W5ZM15T04-S 5000 K 9-10 360  4  360-430 105  1.8  >80
RF-W4ZM15T04-S 4000 K 9-10 360  350-420 102  1.8  >80
RF-W3ZM15T04-S 3000 K 9-10 360  325-390 95  1.8  >80
RF-W2ZM15T04-S 2700 K 9-10 360  310-370 91  1.8  >80

RF-W5ZM15T07-S 5000 K 11-14 540  7  730-940 112  1.8  >80
RF-W4ZM15T07-S 4000 K 11-14 540  710-910 109  1.8  >80
RF-W3ZM15T07-S 3000 K 11-14 540  690-860 106  1.8  >80
RF-W2ZM15T07-S 2700 K 11-14 540  620-760 95  1.8  >80
RF-W5ZM15T09-S 5000 K 34-40 320  9  1040-1250 110  1.8  >80
RF-W4ZM15T09-S 4000 K 34-40 320  1000-1200 105  1.8  >80
RF-W3ZM15T09-S 3000 K 34-40 320  930-1150 100  1.8  >80
RF-W2ZM15T09-S 2700 K 34-40 320  850-1070 95  1.8  >80

RF-W5ZM15T11-S 5000 K 34-40 400  11  1275-1400 110  1.8  >80
RF-W4ZM15T11-S 4000 K 34-40 400  1245-1350 105  1.8  >80
RF-W3ZM15T11-S 3000 K 34-40 400  1145-1200 100  1.8  >80
RF-W2ZM15T11-S 2700 K 34-40 400  1020-1150 95  1.8  >80



COB 1919 SERIES

Part Number Color
Temperature		 Vf(V) Test
Condition(mA)		 Power
(W)		 Luminous
Flux(lm)		 Lm/W Thermal
Resistance		 CRI



RF-W5ZM19T13 5000 K 34-40 360  13  1500-1840 115  1.8  >80
RF-W4ZM19T13 4000 K 34-40 360  1450-1800 112  1.8  >80
RF-W3ZM19T13 3000 K 34-40 360  1350-1620 104  1.8  >80
RF-W2ZM19T13 2700 K 34-40 360  1250-1570 96  1.8  >80



RF-W5ZM19T17 5000 K 34-40 480  17  1900-2330 110  1.8  >80
RF-W4ZM19T17 4000 K 34-40 480  1830-2280 106  1.8  >80
RF-W3ZM19T17 3000 K 34-40 480  1690-2040 98  1.8  >80
RF-W2ZM19T17 2700 K 34-40 480  1570-1970 91  1.8  >80



Applications
  • Downlights
  • Spot lights
  • Track lights
  • Flood lights
  • Street lights
  • And so on
