high quality china 3d cnc router/6060 milling metal CNC router
- 200 Set / Sets per Month
- Qingdao
- T/T L/C D/P D/A Credit Card PayPal
- engraving cnc router,1325 woodworking cnc router 1300*2500*200
- engraving and milling machine,1325 woodworking cnc router 1300*2500*200
- engraver router,1325 woodworking cnc router 1300*2500*200
- dsp control cnc machine,1325 woodworking cnc router 1300*2500*200
- cnc woodworking router machine,1325 woodworking cnc router 1300*2500*200
- cnc woodworking router,1325 woodworking cnc router 1300*2500*200
Product Details
Condition: | New | CNC or Not: | CNC | Place of Origin: | Shandong, China |
Brand Name: | DEXIAN | Model Number: | DX 6060 | Voltage: | 220v or 380v |
Power(W): | 1500w or 2200w | Dimension(L*W*H): | 600*600*180mm | Weight: | 490kgs |
Certification: | CE FDA ISO CIQ | Warranty: | 12 months | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
High quality china 3d cnc router/6060 milling metal CNC router
According to your working area, machine could be customized.
We have 300x400mm, 400x400mm, 400x600mm, 600x600mm, 600x900mm, or bigger.
Features
This machine is specially designed for metal engraving, metal mould making.
1. Cast iron structure very heavy and stable, Net weight 400kgs. Even four adult can not move it.
2. Taiwan Hiwin linear guide and Taiwan TBI ballscrew, makes the machine with high working accuracy.
3. Table moving type, very suitable for mold making, with high precision.

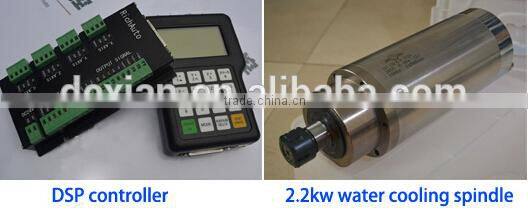

4. DSP control system, you can use it offline.
Technical Parameters
NO. | Description | Parameter |
1 | X,Y,Z Working Area | 600mmx600mmx120mm |
2 | Table Size | 720mmX720mm |
3 | X,Y,Z Traveling Positioning Accuracy | ±0.01mm/300mm |
4 | X,Y,Z Repositioning Accuracy | ±0.01mm |
5 | Table Surface | T-slot and vacuum working Table |
6 | Frame | Cast iron Structure |
7 | X,Y, Z Structure | Taiwan TBI Ball Screw, Taiwan HIWIN linear guide |
8 | Max. Power Consumption | 0.8KW |
9 | Max. Rapid Travel Rate | 10000mm/min |
10 | Max. Working Speed | 8000mm/min |
11 | Spindle Power | 2.2 KW water Cooling Spindle |
12 | Spindle Speed | 0-18000RPM |
13 | Drive Motors | Stepper System |
14 | Working Voltage | AC220V/50/60HZ,1Phs |
15 | Command Language | G code |
16 | Operating System | Ncstudio (options:DSP /Mach3 PC Software) |
17 | Computer Interface | USB |
18 | Flash Memory | 128M(U Disk) |
19 | Collet | ER16 |
20 | X,Y Resolution | <0.01mm |
21 | Software Compatibility | Type3/UcancameV9 software/Artcam software |
Details

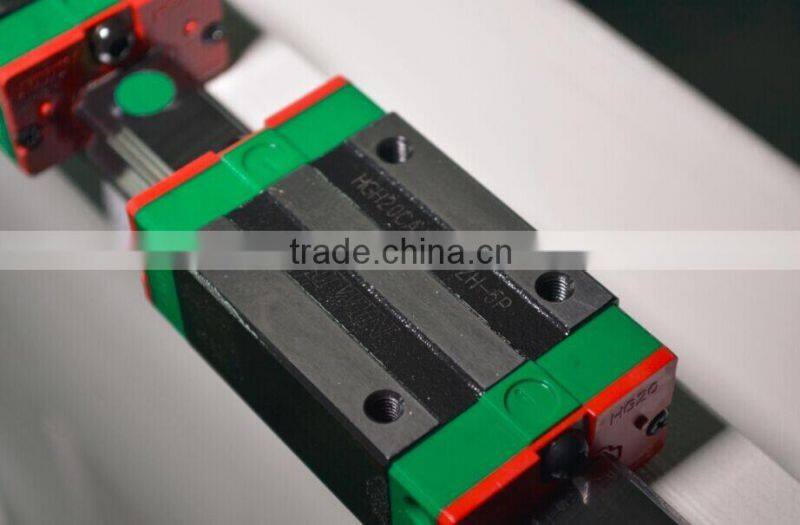

Taiwan Hiwin linear guide

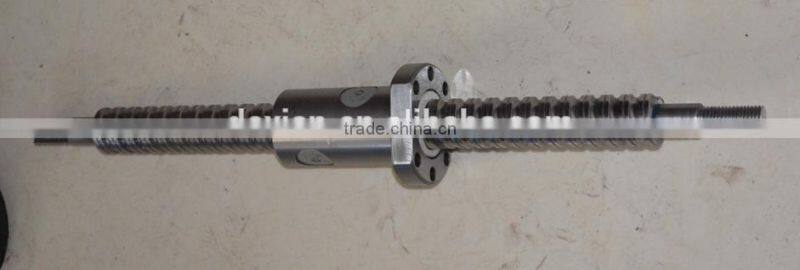

Taiwan TBI ballscrew transmission
Samples
Our Factory
Jinan Dexian Machinery Co.,Ltd.
We are 5 year Gold Supplier and we support Trade Assurance
Guaranty
1.One year quality guaranty, the machine with main parts (excluding the consumables) shall be changed free of charge if there is any problem during the warranty period.
2.Lifetime maintenance free of charge.
3.Free training course at our plant.
4.We will provide the consumable parts at an agency price when you need replacement. 5.24 hours on line service each day, free technical support.
6.Machine has been adjusted before delivery , operation disk is included.
