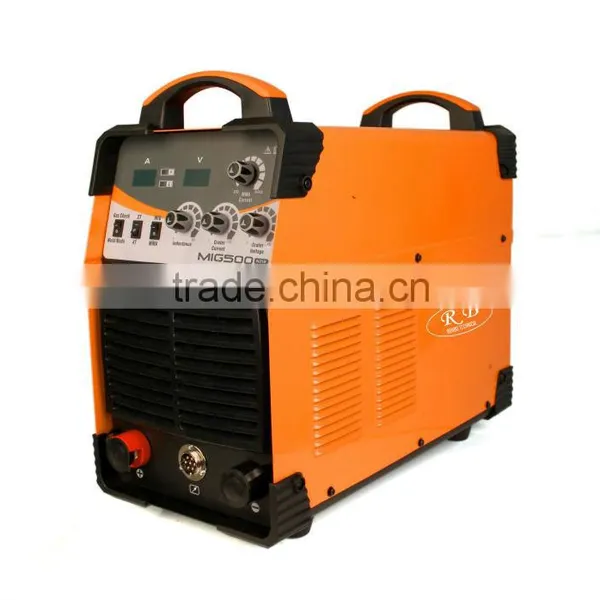

Help CenterAdvanced IGBT Inverter Welding Machine/welder Wire Feeder Inside With MMA MIG Functions(MIG500N215)
Related Products
-
BMC Reflector 150w 200w Led Gas Station Light Shell for WholesalesUS$ 80 - 250MOQ: 20 Pieces -
AC, MFDC Heavy Duty Welding GunUS$ 50 - 50MOQ: 1 Set
-
Capacitor Discharge SpotPress WelderUS$ 50 - 50MOQ: 1 Set
-
Indoor Lighting Ceiling Light With Heat-resisstant Imported Silicone Sealing Ring 40WNegotiableMOQ: 10 Pieces
-
5000K 150W High Lumen High Induction Grow Light Induction LightingUS$ 80 - 250MOQ: 1 Piece
Specifications
IGBT inverter with MIG, MMA functionsHigh duty cycle allows welding over longer duration
High welding efficiency
Features
·IGBT inverter with MIG, MMA functions
·High duty cycle allows welding over longer durations
·Our advanced control circuitry increases the MIG welding function
·Stable welding arc,minimal spatter and beautiful shaping
·Excellent welding results due to our adjustable welding current feature that precisely matches the voltage
·High welding efficiency
Standard:
·1pc of 3m MB36 MIG torch, 1 set of 500A Earth clamp +3m 50mm² Cable +Lug,
,5m50mm²connecting cable for MIG 500(N215)+1pc gas meter
Specifications
Standard:
·MIG
Crater current knob
Crater voltage knob
Inductance knob
·MMA
Current knob
Digital display V/A
·2T/4T
·Gas check switch
·Alarm indicator O.C and over –load indicator
·Wire feeder WF 23A
Input Voltage(V) |
AC230V±15%(singlephases) 50/60Hz |
Rated input current(A) |
39 |
Rated output(MIG) |
350A/39A |
Output voltage range(V.MIG) |
0.8~22.5 |
Output current range(A.MIG) |
30~500 |
Arc force range(A,MMA) |
0~250 |
Wire feed speed range(m/min) |
0.8~22.5 |
Duty cycle imax(40℃) |
60%(MMA,MIG) |
Duty cycle 100%(40℃) |
390A(MMA,MIG) |
Electrod diameter applicable(mm) |
1.0/1.2/1.6 |
Protection Class |
IP21S |
Size (mm) |
675*350*665 |
Weight(KG) |
55 |
