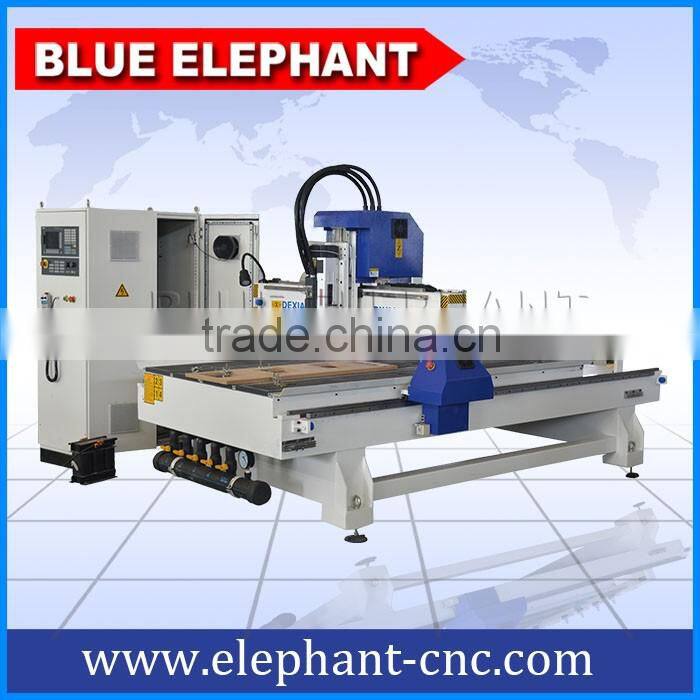

automatic wood cutting machine atc cnc router 1325 with germany motor
other model:1325 linear atc, 1836 acarousel atc, 1530 linear atc, 1325 carousel atc, etc
Technical Datas
Model | DX-1325 atc cnc router | DX-1530 atc cnc router | DX-1836 atc cnc router | |
X,Y,Z travel( mm) | 1300x2500 x 200 | 1500 x 3000 x200 | 1800 x 3600 x200 | |
Spindle power | Italy 9kw air cooling spindle | |||
Spindle rotation speed | 0-24000RPM | |||
Tool collet | ISO30 | |||
Max. Rapid Travel Rate | 60000mm/min | |||
Max. Working Speed | 25000mm/min | |||
X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm | |||
X,Y,Z Repositioning Accuracy | ±0.03mm | |||
Table Surface | Vacuum and T-slot Combined | |||
X, Y Structure | Gear and rack transmission, Taiwan HIWIN Linear Rail | |||
Z Structure | Taiwan TBI Ball Screw, Taiwan HIWIN Linear Rail | |||
Drive Motors | Japan YASKAWA servo (Taiwan DELTA servo for optional) | |||
Controlling system | SIEMENS(SYNTEC, LNC for optional) | |||
Working Voltage | AC380V,3PH,50/60Hz (Option: 220V) | |||
Tool change type | Carousel auto tool change system | Linear auto tool change system | ||
Tools number | 8 Positions ATC | |||
More details
Safety Level:
1, Soft limit switch (Shock absorption pad)
2, Japanese Omron limit switch
3, French Schneider electronics
4, French Schneider rotary safety switch on the control box
5, Wires, high soft shielding twisted-pair cable, fire-resistant and with low failure rate, could be bent min 30,000,000 times
Application and samples:
1. WoodFurniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2.Advertising industry: advertising identification, sigh making, Acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
3.die industry:A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.
4.relief sculpture and 3D engraving
Welcome to visit our factory for more information.
Skype: elephantcnc
WhatsApp/Mobile: 0086-15064026772
Web:
