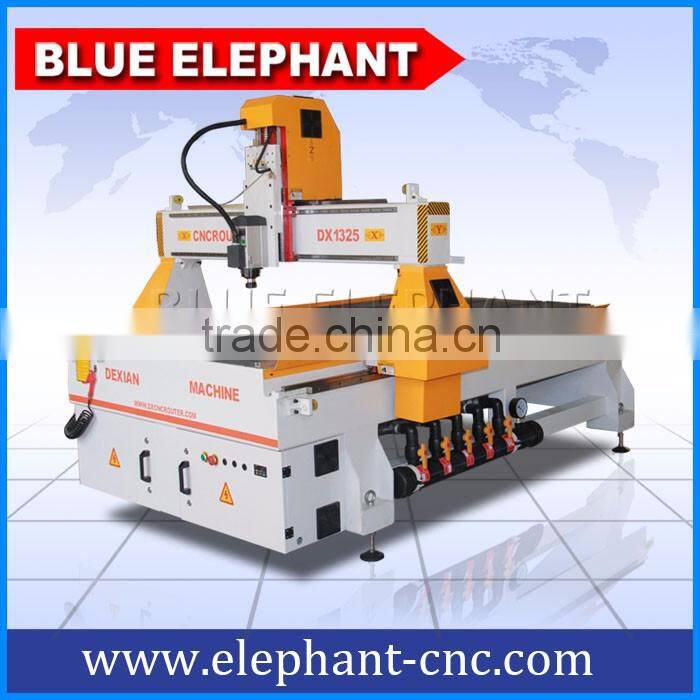

low cost price cnc router furniture machine with big discount
Features of stone cnc router:
1 with steel flume and water mist cooling sprayer, the 1325 cnc router is very excellent for cutting and engraving aluminium, copper, glass or other similar metrials.
2 big power stepper motor and YAKO driver, to make sure 25m/min working speed.
3 High quality Taiwan Linear guide has much longer life 10 times of life-time than round guide; It is stable and hard to distort.
4, easy to operate DSP hand controller with USB port, no need to connect to computer.

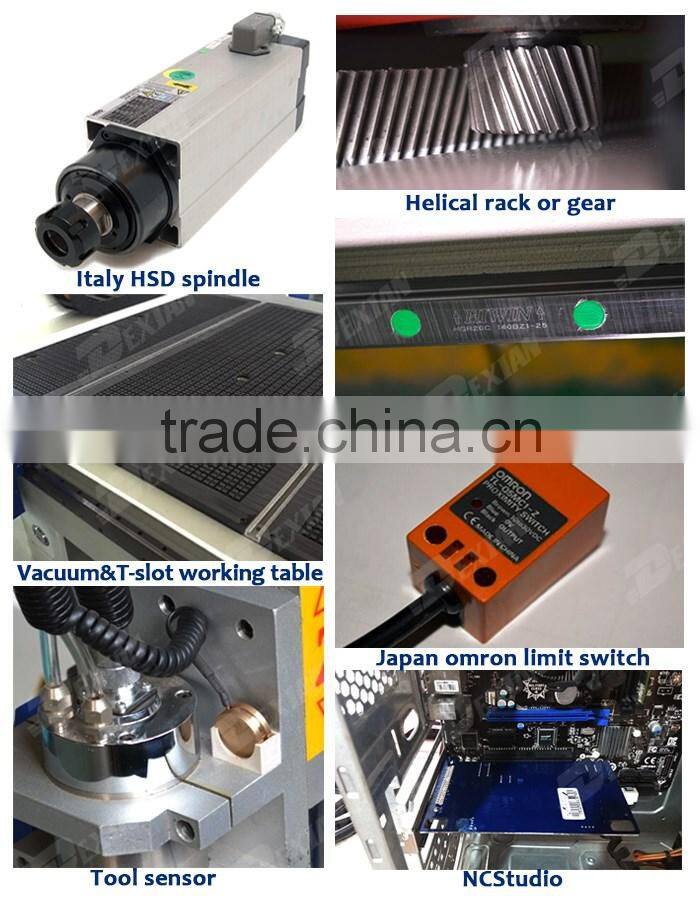

Machine Details:

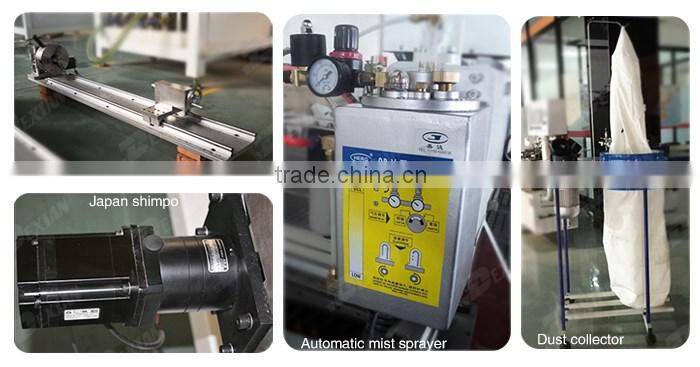

Optional Parts for 1325 cnc router:
Technical Parameters of stone cnc router:
Number | Description | Parameter |
1 | X,Y,Z Working Area | 1300x2500x200mm |
2 | X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm |
3 | X,Y,Z Repositioning Accuracy | ±0.03mm |
4 | Table Surface | Vacuum&T-slot Table |
5 | Frame | Welded Structure |
6 | X, Y Structure | Rack and Pinion Drive, Hiwin Rail Linear Bearings |
7 | Z Structure | Hiwin Rail Linear Bearings and Ball Screw |
8 | Max. Power Consumption | (Without Spindle) 2.5kw~3Kw |
9 | Max. Rapid Travel Rate | 33000mm/min |
10 | Max. Working Speed | 25000mm/min |
11 | Spindle Power | 3KW water cooling spindle |
12 | Spindle Speed | 0-24000RPM |
13 | Drive Motors | Stepper System |
14 | Working Voltage | AC380V/50/60Hz,3PH (Option: 220V) |
15 | Command Language | G Code |
16 | Operating System | DSP System (Options: Ncstudio/Mach3 PC Software) |
17 | Computer Interface | USB |
18 | Flash Memory | 128M(U Disk) |
19 | Collet | ER25 |
20 | X,Y Resolution | <0.01mm |
21 | Software Compatibility | Type3/UcancameV9 Software, (Option: Artcam Software) |
22 | Running Environment Temperature | 0 - 45 Centigrade |
23 | Relative Humidity | 30% - 75% |
Application and samples:
1. WoodFurniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2.Advertising industry: advertising identification, sigh making, Acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
3.die industry:A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.
4.relief sculpture and 3D engraving.
Technical Support:
24 Hours technical support by email or calling
user friendly English manual and Video CD for machine operation and maintain

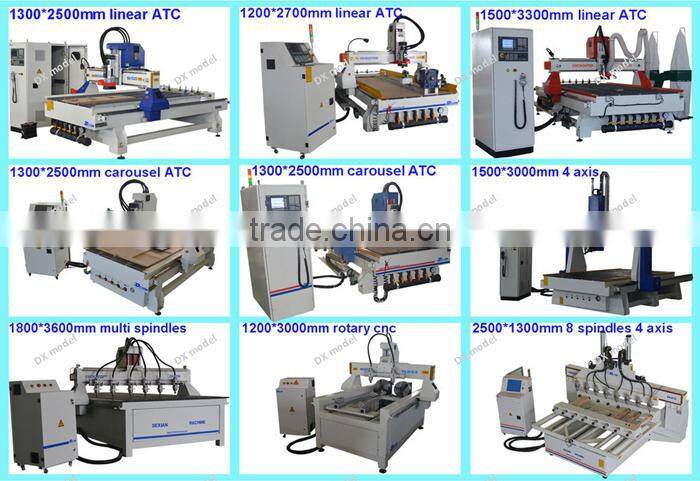

More pictures of 1325 cnc router:
After-sale service:
1, 18 months warrantry for the whole machine.
2, Normal machine is properly adjusted before dispatch. You will be able to use the mchines immediately.
3, we offer you free training towards the machine in our factory.
4, free suggestion and consultation, technical support and service by email/fax/tel and lifetime technical support for the machine.
5, Free training course in our factory

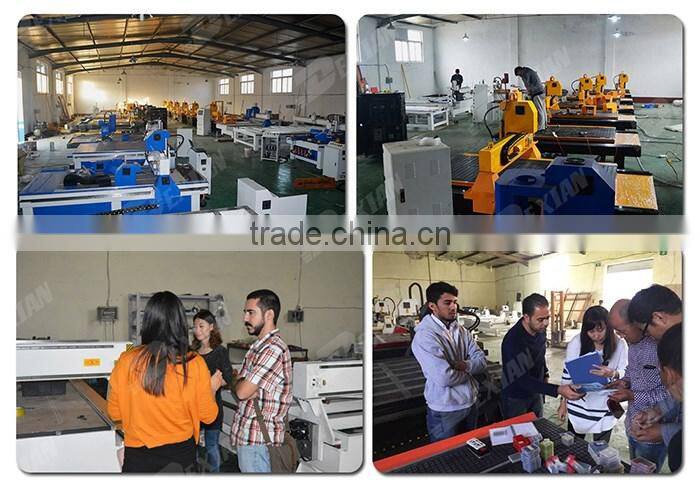

Welcome to visit our factory for more information.
If you need any price, details or videos, please contact me .
Skype: elephantcnc
WhatsApp/Mobile: 0086-15064026772
