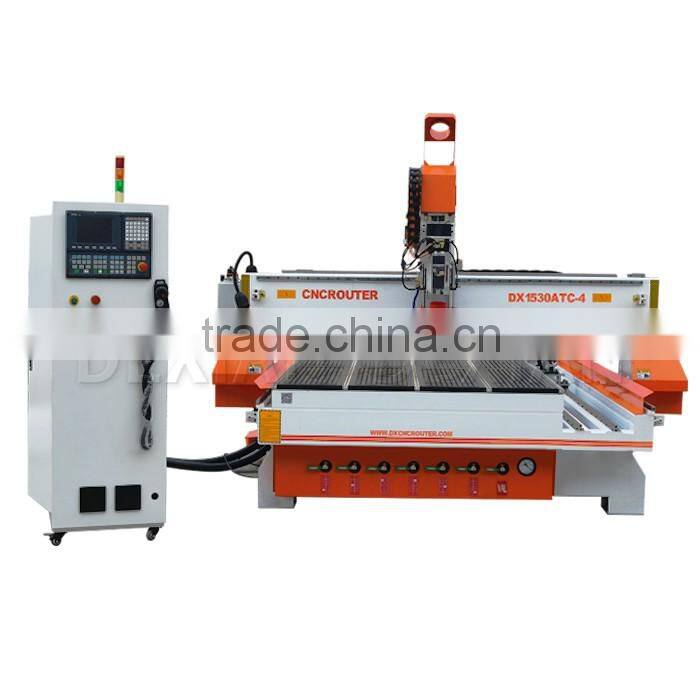

DX1530 Rotary Device ATC cnc router machine 1530 4 axis with CE, ISO 9001, SGS
Standard configuration
|
1.9kw Italy HSD air cooling spindle 2.11KW Taiwan DELTA inverter 3. Taiwan SYNTEC control system 4. Japan YASKAWA servo motor and driver 5. Taiwan HIWIN #25 linear guide for X Y Z axis 6. Taiwan TBI #2510 ball screw 7. Vacuum & T-slot combined worktable 8. France Schneider safety switch 9. Taiwan SYNTEC MPG handle wheel 10. Manual lubrication system 11. Automatic tool sensor calibration 12. Japan OMRON limit switch for X,Y,Z axis 13. Shanghai Cardiff Highly flexible towline,fire-resitant double-sheathed cable 14. Type3 or Art cam software 15. Rotary device: 300mm diameter with 2400mm working length 16. 3kw double packet dust collector 17. auto oil mist cooling sprayer 18. 7.5kw air vacuum pump 19. Japan Shimpo Planetary drive |

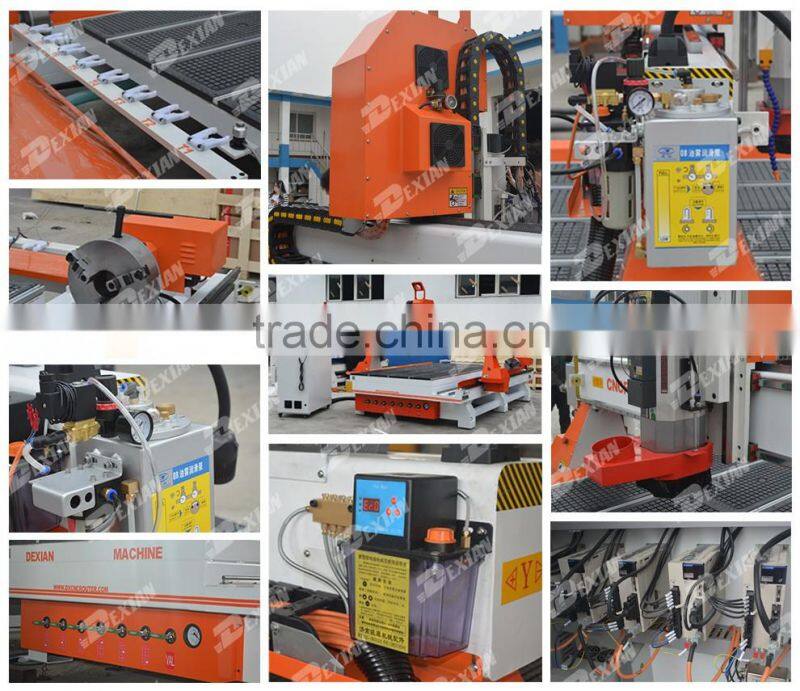

Machinery Parts:
Wood carving machine Technical specification:
Model |
DX1530-4 axis |
||||
X,Y,Z Working Area |
1500*3000*300mm |
||||
Z axis travel |
200mm-700mm(according to your requests) |
||||
Table Surface |
Vacuum and T-slot Combined(double use) |
||||
Frame |
Thicken steel Square Tube Heavy structure , 8mm thicken steel gantry with T type |
||||
X, Y Structure |
Helical Gear and rack transmission, Taiwan HIWIN Linear Rail |
||||
Z Structure |
Taiwan TBI Ball Screw, Taiwan HIWIN Linear Rail |
||||

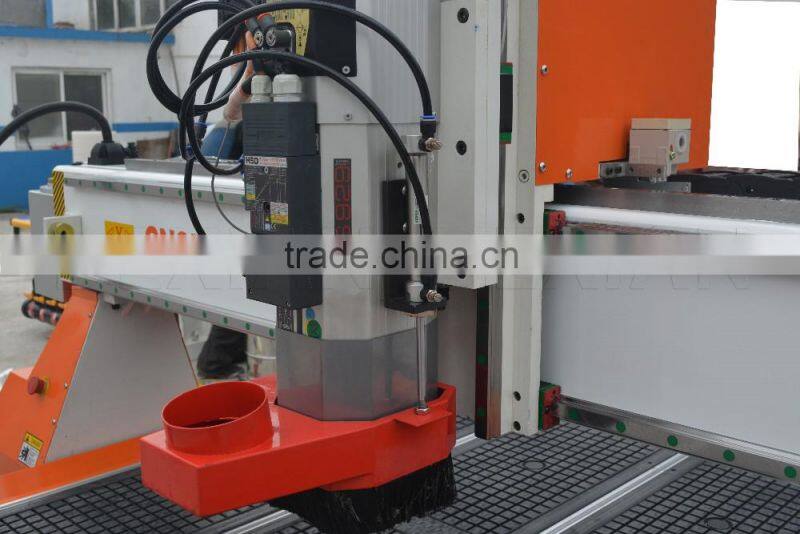

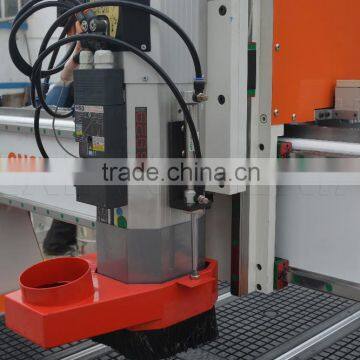

Spindle Power |
9.0kw Italy HSD Air cooling spindle(optional:China top brand Water cooling spindle) |
||||
Spindle Speed |
0-24000RPM |
||||
Drive Motors |
Japan YASKAWA Servo Motor and Driver |
||||
Working Voltage |
AC220V/380V 1PH/3PH 50/60Hz, |
||||
Command Language |
G Code |
||||
Operating System |
Taiwan SYNTEC 6MB control system |
||||
Computer Interface |
USB port |
||||
Flash Memory |
521M |
||||
Collet |
ER32 |
||||
Inverter |
11kw Taiwan Delta inverter |
||||
Software Compatibility |
Type 3 /Artcam |
||||
PS:All the working area and specifications can be customized according to your requests.
The advantage of wood carving machine:

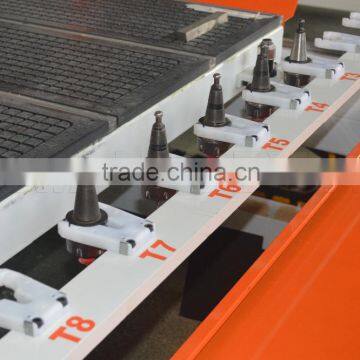

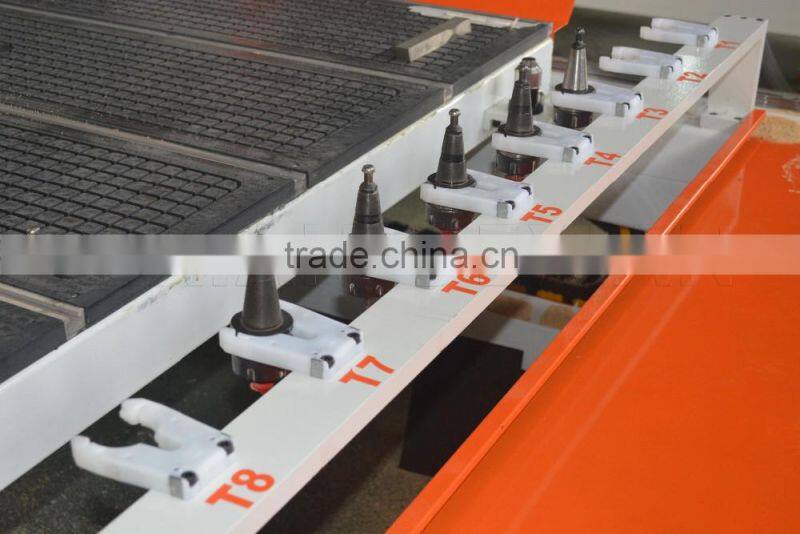

1)ATC cnc router machine: auto tool changer, save time and high efficiency. Carve on different tools, no need change tools manually.

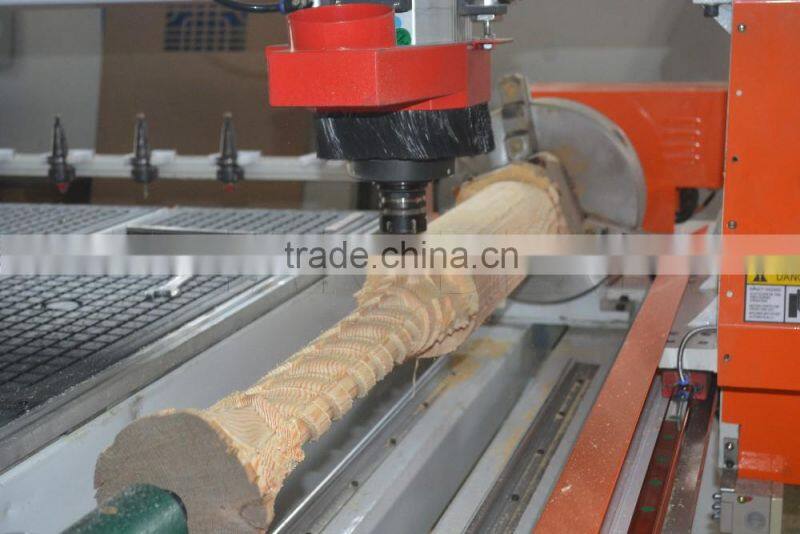

2.) 4 axis cnc router machine:Compared with 3 axis cnc router,4 axis woodworking cnc router machine can engrave material with carved surface, like the arched door carving, the side door lock slot milling and the simple car or other models with regular arc surface.
3) If compared with 5 axis cnc router machine, the machine is more economical, affordable and popular.

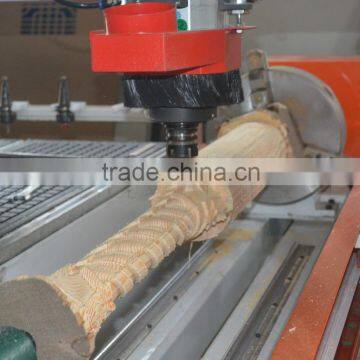

4) ATC with 4 axis, can auto tool changer, process on cylinder. High performance, high efficiency.
Our Service:
12 months for the whole machine .
1, Technical support by phone , email or MSN/Skype around the clock
2, Friendly English version manual and operation video CD disk
3, Engineer available to service machinery overseas
Applications:
1.Wood furniture industry: Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2.Advertising industry: Advertising indentification, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
3.Die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic sheeting, PVC pipe, wooden planjs and other non-metallic mold.
4.Relief sculpture and 3D engraving.
5.Cylindrical object.

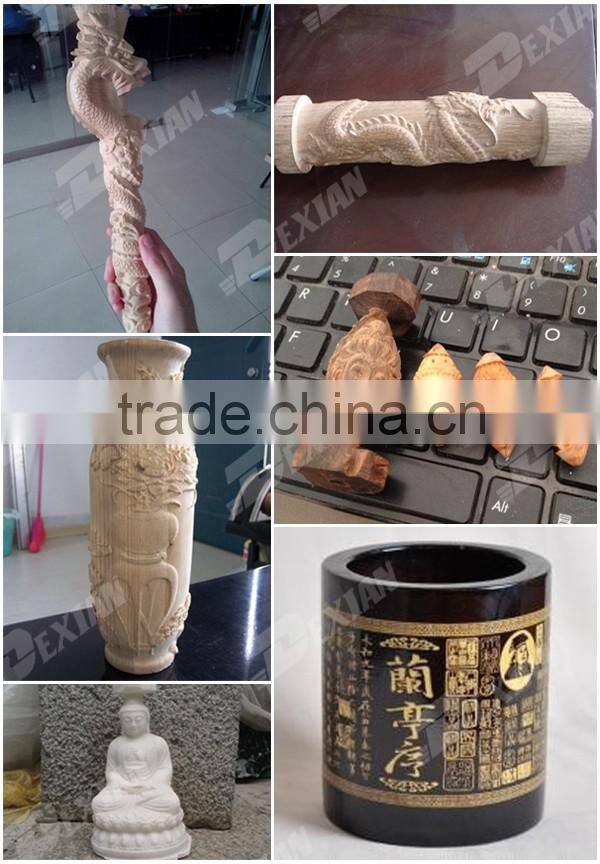

Samples:
Packaging & Delivery:
Packaging Details: 1.Outside package:Standard marine export plywood case.
2.inner package:Stretch film and plastic film for humidity.
We can package according to your requests.
Delivery Detail: Shipped in 20 working days after payment.
FAQ:
1.Are you a factory or trading company?
We are the manufacturer and we have 10 years factory experience .As only the machine made by ourself ,quality can be trusted, and most important thing is we can do better service after sales. we know how to fix the problem in each parts easliy. so welcome to visit to our factory
2. How long is the delivery time?
For standard machines, it would be 7-10 days; For non-standard machines and customized machines according to client s specific requirements, it would be 15 to 30 days.
3. How should I pay for my order ? what is the procession of this purchase ?
You can do 30% prepayment at first, then we will start to make production. when the machine is ready , we will take pictures to you, and then you can do the ballance.
after we got your payment. We will send the machine to you.
4. How about your service after sales ? can your engineer speak fluent english ?
We offer the service from you got the machine, including how to install the machine, how to use machine. how to let machine work. and so on. Usually we will teach you how to do by email or by skype .our engineer has many years of experience for cnc machine service . he can speak very good english , so he can slove the problem in short time.
Contact us:
Manager: Jack
Contact: Emma Lee
Skype: emmadexian
Mobile/whatsapp: 0086-15866602105
Web:
dexian.en.china.cn
