Home > Products > 2. ATC cnc router > DX2040 China atc cnc router with vacuum table for wood furniture, MDF, PVC, PCB, Acrylic

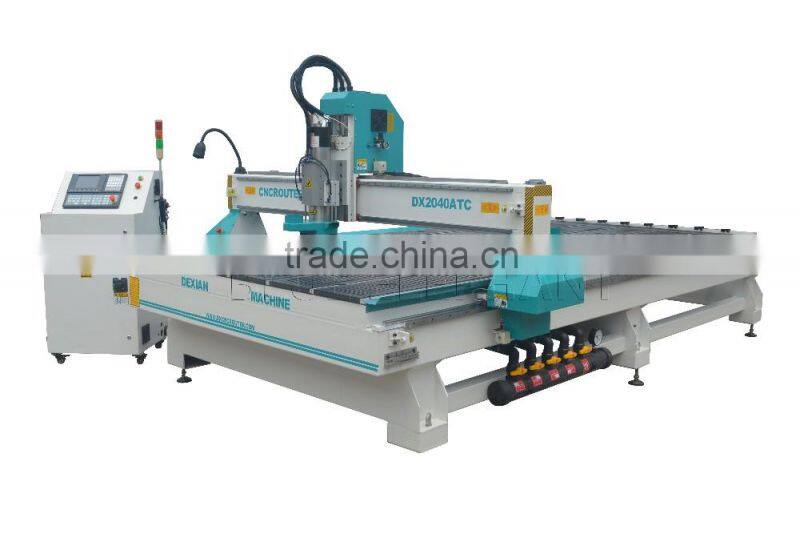

DX2040 China atc cnc router with vacuum table for wood furniture, MDF, PVC, PCB, Acrylic
- 200 Set / Sets per Month
- Qingdao Tianjin etc.
- T/T D/P D/A Credit Card PayPal
- engraving cnc router,1325 woodworking cnc router 1300*2500*200
- engraving and milling machine,1325 woodworking cnc router 1300*2500*200
- engraver router,1325 woodworking cnc router 1300*2500*200
- dsp control cnc machine,1325 woodworking cnc router 1300*2500*200
- cnc woodworking router machine,1325 woodworking cnc router 1300*2500*200
- cnc woodworking router,1325 woodworking cnc router 1300*2500*200
Product Details
Condition: | New | CNC or Not: | CNC | Place of Origin: | Shandong, China |
Brand Name: | DEXIAN | Model Number: | DX2040ATC | Voltage: | AC380V/50/60Hz,3PH (Option: 220V) |
Power(W): | 12.5kw | Dimension(L*W*H): | 2000*4000*200mm(can be customized) | Weight: | 1600~2400kg |
Certification: | CE ISO9001 SGS | Warranty: | 12 Months | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
DX2040 China atc cnc router with vacuum table for wood furniture, MDF, PVC, PCB, Acrylic

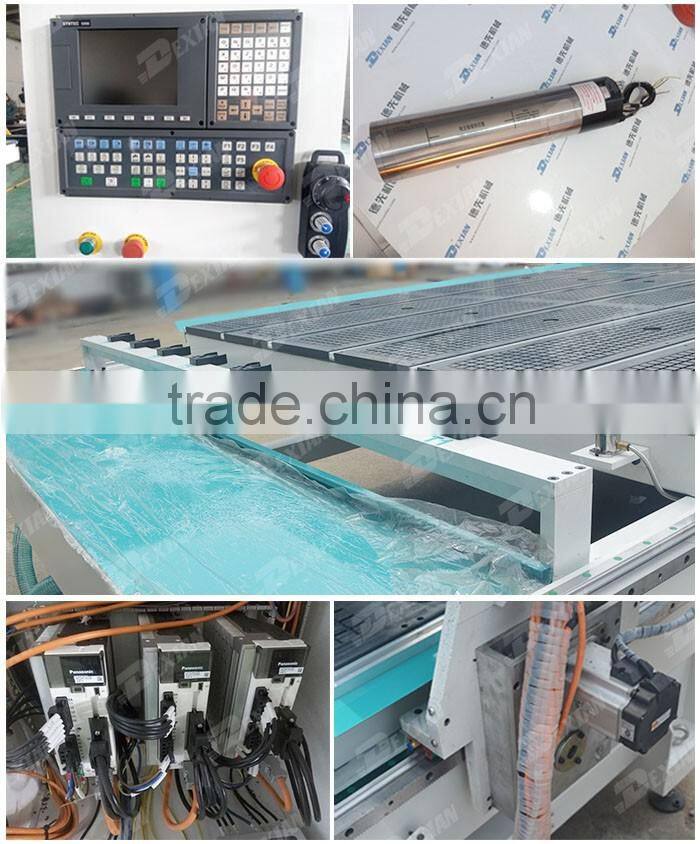

Standard configurations of 2040 China atc cnc router:
1. 7.5kw HQD Water cooling ATC spindle, 24000rpm
2. Taiwan SYNTEC 6MB control system,
3. Japan Panasonic servo motor and driver, more stable and stonger.
4. 8*position, also can choose 6pcs, 10pcs, 12pcs etc.
5. XY axis transmission is Taiwan HIWIN linear guide with Helical rack, high performance.
6. Zaxis transmission is Taiwan TBI Ball Screw with Taiwan HIWIN linear guide, high precision.

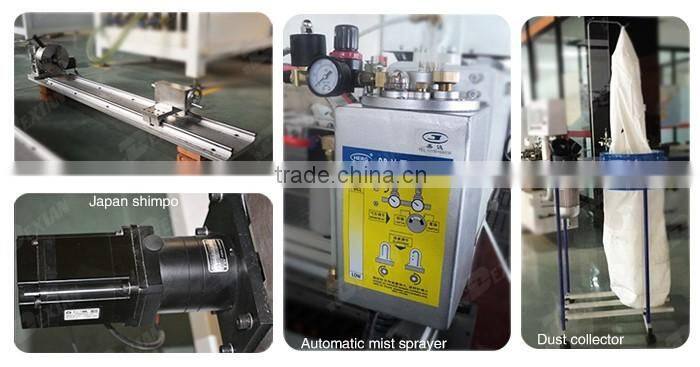

Optional of 2040 China atc cnc router:
Parameters of 2040 China atc cnc router:
Model | DX2040ATC |
X,Y,Z Working Area | 2000*4000*200mm effective working area |
X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm |
X,Y,Z Repositioning Accuracy | ±0.03mm |

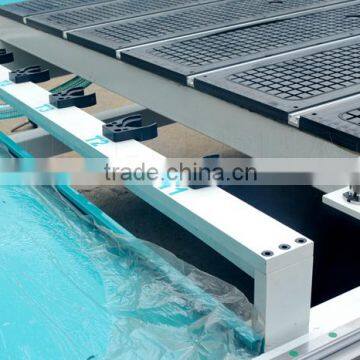

Table Surface | Vacuum and T-slot Combined (Option: T-slot Table) |
Frame | Thicken steel Square Tube Heavy structure , 8mm thicken steel gantry with T type |
X, Y Structure | Gear and rack transmission, Taiwan HIWIN Linear Rail |
Z Structure | Taiwan TBI Ball Screw, Taiwan HIWIN Linear Rail |
Max. Power Consumption | (Without Spindle) 4.5KW |
Max. Rapid Travel Rate | 60000mm/min |
Max. Working Speed | 25000mm/min |
Spindle Power | 7.5kw HQD Water cooling ATC spindle (China top brand) |
Spindle Speed | 0-24000RPM |
Drive Motors | Japan PANASONIC servo motor and driver
|
Working Voltage | AC380V/50/60Hz,3PH (Option: 220V) |
Command Language | G Code |
Operating System | Taiwan SYNTEC 6MB control system
|
Computer Interface | USB interface |
Collet | ISO30 |
Inverter | Taiwan DELTA 11kw |
Software Compatibility | Type 3 /Artcam /Ucancam |
PS:All the working area and specifications can be customized according to your requests.
Applications of 2040 China atc cnc router:
* Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and windows.
* The wood products: voice box, game cabinets, computer tables, sewing machines table, instruments.
* Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling tracks, stairs, anti-Bate board, epoxy resin, ABS, PP, PE and other carbon mixed compounds.
* Decorate industry: Acrylic, PVC,MDF, artificial stone, organic glass, plastic and soft metals such as copper, aluminum plate engraving and milling process.
Samples:
Our Service:
1, Within 7 days since your local customs clearance: if the cnc router’s any parts has any problems, we will change it free.
2, Exceed 7 days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.
3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
4, We offer 24 hours technical support by call, and email.
5, Our technician can give you remote guide online(Skype or MSN) if you have any question.
6, We can record videos of operating the laser machine.
7, Free training course in our factory.
8.Machine will be adjusted before it is delivered, operation disk/CD was included.
Jinan Dexian Machinery Co.,Ltd
---10 years factory experience
---Professional CNC machinery manufacturer
---very professionally produce 3 axis,4 axis, 5 axis, ATC cnc router,laser cutting machine
---The price will be 20% off in 2016
Looking forward for the agents from all over the world! Welcome to contact us!
