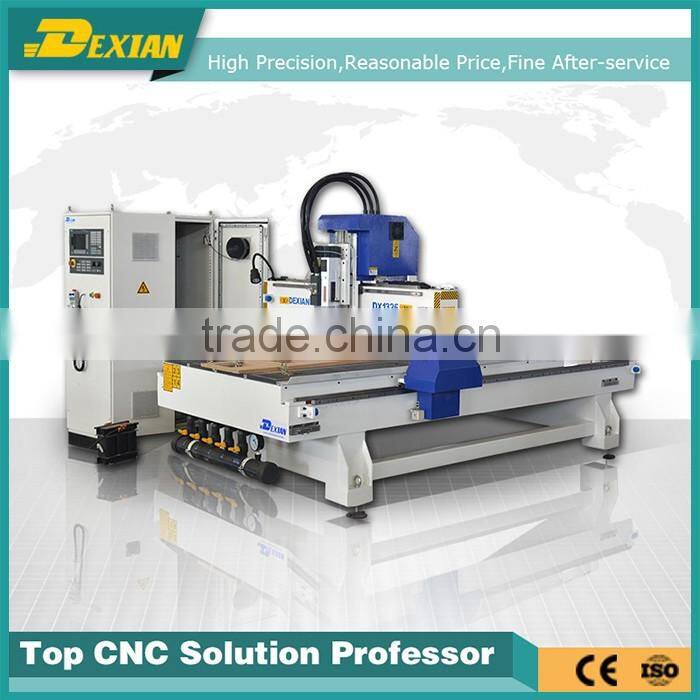

cnc router for wood, aluminium mitre cutting machine,rubber tube cutting machine
Features:
1. 9kw Italy HSD ATC air cooling spindle
2.11kw Taiwan DELTA inverter
3.Germany SIEMENS Servo Motor Driver
4.Germany SIEMENS control system
5.Taiwan TBI Ball Screw, Taiwan HIWIN Linear Rail
Details:

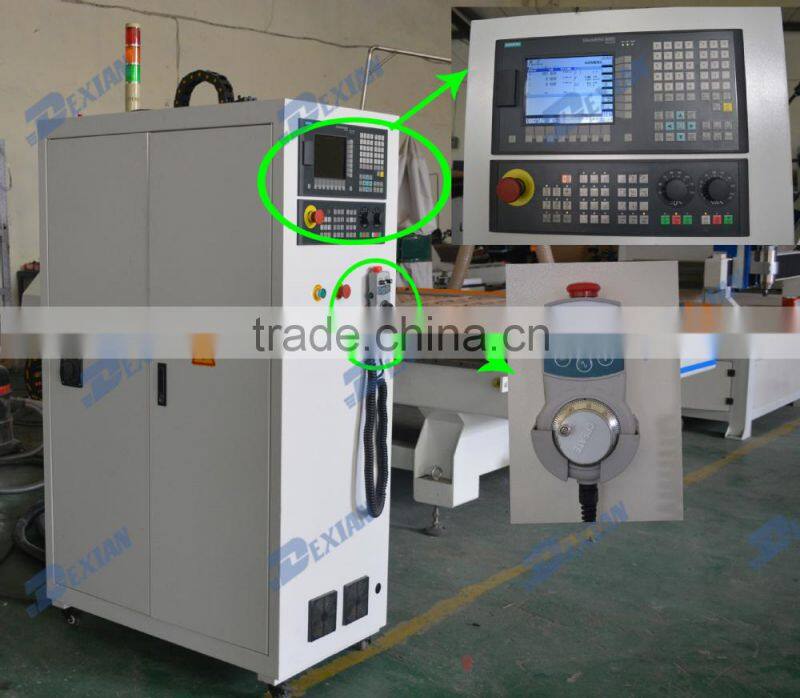

1. Germany Siemens Control system
Siemens 808D, with MPG handle control system and Control panel

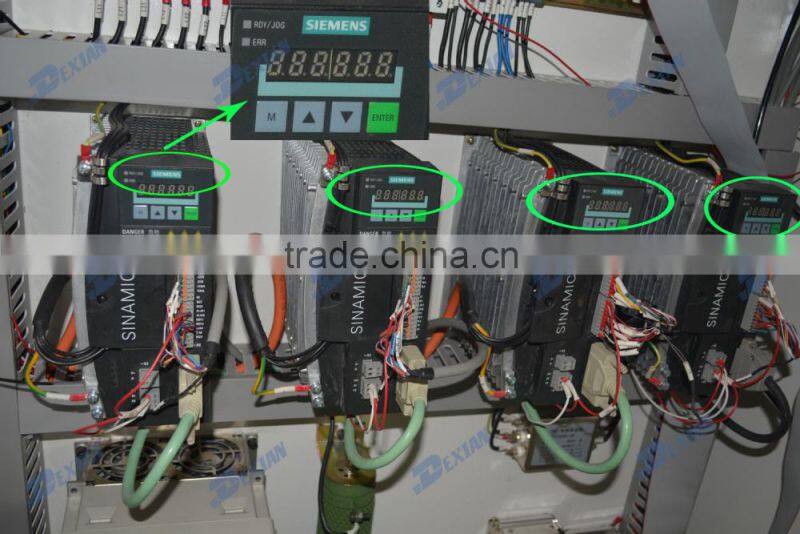

2. Germany Siemens Servo motor and driver
Totally 5 sets of servo motor and driver, serves well with Siemens control system.

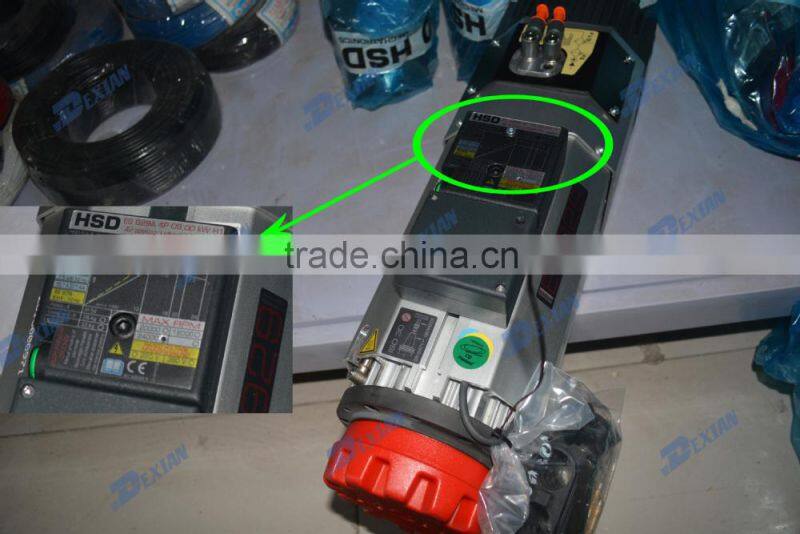

3. Italy HSD ATC spindle
9kw automatic tool changer HSD spindle, Originally imported in Italy. It has after sale service all over the world.
Parameters:
1 |
Model |
DX-1325ATC/DX-1530ATC/DX-1825ATC/DX-1836ATC/DX-2030ATC |
2 |
X,Y,Z Working Area |
1300*2500mm/1500*3000mm/1800*2500mm/1800*3600mm/2000*3000mm Z axis:200mm |
3 |
X,Y,Z Traveling Positioning Accuracy |
±0.03/300mm |
4 |
X,Y,Z Repositioning Accuracy |
±0.03mm |
5 |
Table Surface |
Vacuum and T-slot Combined (Option: T-slot Table) |
6 |
Frame |
Thicken steel Square Tube Heavy structure , 8mm thicken steel gantry with T type |
7 |
X, Y Structure |
Gear and rack transmission, Taiwan HIWIN Linear Rail |
8 |
Z Structure |
Taiwan TBI Ball Screw, Taiwan HIWIN Linear Rail |
9 |
Max. Power Consumption |
(Without Spindle) 4.5Kw |
10 |
Max. Rapid Travel Rate |
60000mm/min |
11 |
Max. Working Speed |
25000mm/min |
12 |
Spindle Power |
9KW HSD ATC spindle from Italy |
13 |
Spindle Speed |
0-24000RPM |
14 |
Drive Motors |
Germany SIEMENS Servo Motor Driver(optional:Japan YASKAWA Servo Motor Driver) |
15 |
Working Voltage |
AC380V/50/60Hz,3PH (Option: 220V) |
16 |
Command Language |
G Code |
17 |
Operating System |
Germany SIEMENS control system (Optional:SYNTEC control system from Taiwan) |
18 |
Computer Interface |
USB interface |
20 |
Collet |
ISO30 |
21 |
Inverter |
Taiwan DELTA 11kw |
22 |
Software Compatibility |
Type 3 /Artcam /Ucancam |
Application and Samples:
* Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and windows.
* The wood products: voice box, game cabinets, computer tables, sewing machines table, instruments.
* Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling tracks, stairs, anti-Bate board, epoxy resin, ABS, PP, PE and other carbon mixed compounds.
* Decorate industry: Acrylic, PVC,MDF, artificial stone, organic glass, plastic and soft metals such as copper, aluminum plate engraving and milling process.
Guarantee and After-sale service:
12 months for the whole machine .
1, Technical support by phone , email or MSN/Skype around the clock
2, Friendly English version manual and operation video CD disk
3, Engineer available to service machinery overseas
Assembly Processe:
FAQ:
Question 1: I want to buy this machine,what suggestion can you give?
Answer: Please tell me:what material do you process? What's the size of your material?(Better show me your product picture)
Question 2: What's the delivery cost & time?
Answer: Please tell me your sea port name,i check shipping cost. After production,we'll deliver ASAP.
Question 3: Have you exported to our country?
Answer: We have been in this field for 11 years,we have CE,CO,ISO,FDA certificates,have exported to Europe,South America,Arab,Asia,Russia,Spain,Australia and many more countries.
Question 4: This is the first time I use this kind of machine, is it easy to operate?
There are english manual or guide video that show how to use machine.
If there is still have any question, please contact us by e-mail / skype/ phone /trademanager online service at any time.
Question 5: If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period if machine have any problem.
If the parts less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
MOQ ?
1 set machine, mixed order is also welcomed.
Welcome to contact with us!
Looking for agents and wholesale from all over the world!
Any questions,please feel free to contact me !
-----------------------------------------------------------------------------------------
