DX-1325 ATC cnc router, automatic woodworking cnc router for linear tool magazine
NO. |
Description |
Parameter |
1 |
X, Y,Z working area |
1300mmx2500mmx200mm(can be customized) |
2 |
Table size |
1360mmx2550mm |
3 |
X,Y,Z Traveling Positioning Accuracy |
±0.03/300mm |
4 |
X,Y,Z Repositioning Positioning Accuracy |
±0.03mm |
5 |
Table Surface |
Vacuum and T-slot combined table |
6 |
Frame |
Welded structure |
7 |
X, Y Structure |
Rack and Pinion Drive Hiwin Rail Linear |
8 |
Z Structure |
TBI Ball Screw |
9 |
Max. Power Consumption (Without spindle) |
4.5Kw |
10 |
Max. Rapid Travel Rate |
60000mm/min |
11 |
Max.Working Speed |
25000mm/min |
12 |
Spindle Power Motor |
9.0kw ATC spindle |
13 |
Spindle Speed |
0-24000RPM |
14 |
Drive Motors |
YASKAWA/DELTA servo |
15 |
Working Voltage |
AC380V |
16 |
Command Language |
G Code, PLT... |
17 |
Operating System |
SYNTEC control system from Taiwan |
18 |
X, Y Resolution |
<0.02mm |
19 |
Software Compatibility |
Type3 software (Option: Art cam software) |
20 |
Packing Size |
3800X2300X1900mm |
21 |
Gross Weight |
1700KG |
Optional sizes:(can be customized)
DX-3040 300*400mm DX-4040 400*400mm DX-6090 600*900mm
DX-0915 900*1500mm DX-1212 1200*1200mm DX-1218 1200*1800mm
DX-1325 1300*2500mm DX-2030 2000*3000mm DX-2040 2000*4000mm

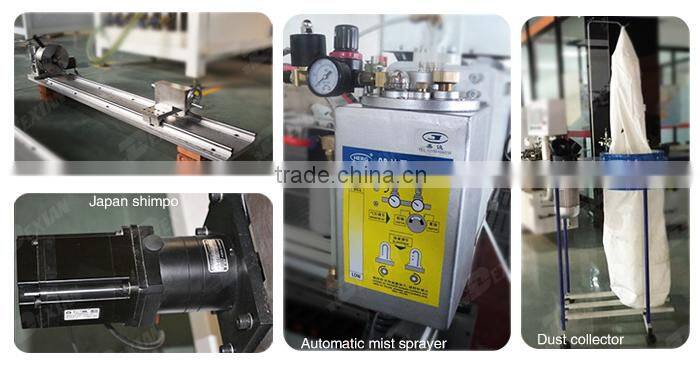

Optional parts:
1. WoodFurniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2. Advertising industry: advertising identification, sigh making, Acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
3. Die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.
4. Relief sculpture and 3D engraving
5. Cylindrical object
1.Are you a factory or trading company?
We are the manufacturer and we have 10 years factory experience .As only the machine made by ourself ,quality can be trusted, and most important thing is we can do better service after sales. we know how to fix the problem in each parts easliy. so welcome to visit to our factory
2. How long is the delivery time?
For standard machines, it would be 7-10 days; For non-standard machines and customized machines according to client s specific requirements, it would be 15 to 30 days.
3. How should I pay for my order ? what is the procession of this purchase ?
You can do 30% prepayment at first, then we will start to make production.
when the machine is ready , we will take pictures to you, and then you can do the ballance.
after we got your payment. We will send the machine to you.
4. How about your service after sales ? can your engineer speak fluent english ?
We offer the service from you got the machine, including how to install the machine,
how to use machine. how to let machine work. and so on. usually we will teach you how to do by email or by skype .our engineer has many years of experience for cnc machine service . he can speak very good english ,
so he can slove the problem in short time.
5. How about the documents after shipment?
Aftershipment, we ll send all original documents to you by DHL, including Packing List, Commercial Invoice, B/L, and other certificates as required by client.
Jinan Dexian Machine Co.,Ltd
---10 years factory experience
---very professionally produce 3 axis,4 axis, 5 axis, ATC cnc router,laser cutting machine
---The price will be 20% off in this month! Welcome to inquiry!
Manager: Jack
Contact: Emma Lee
Skype: emmadexian
Mobile/whatsapp: 0086-15866602105
Web: dexian.en.china.cn
