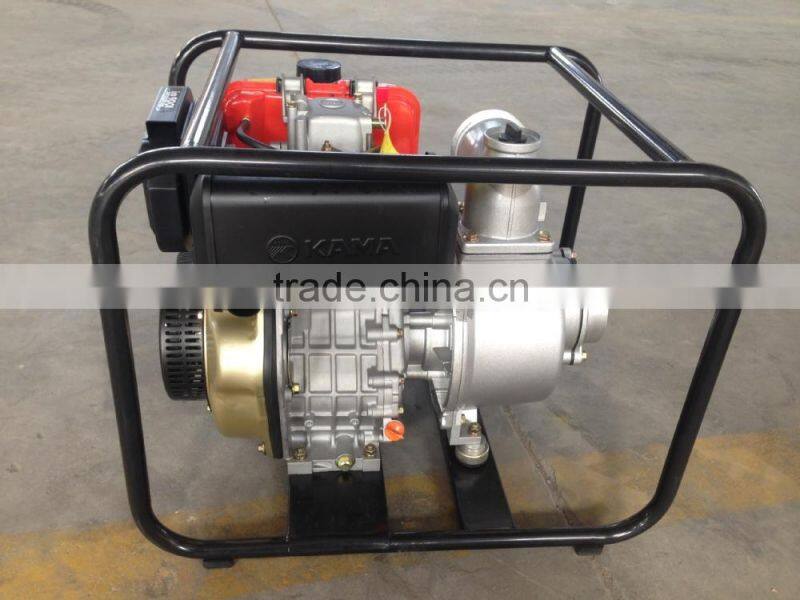

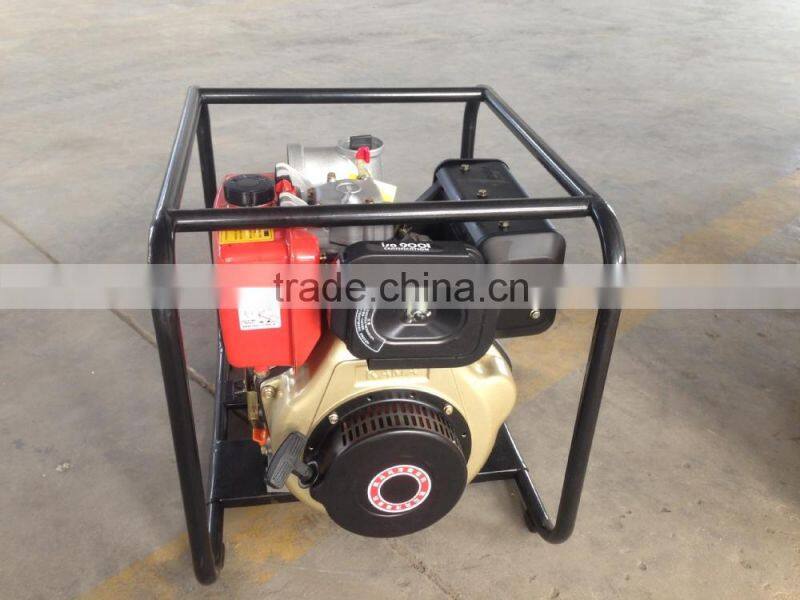

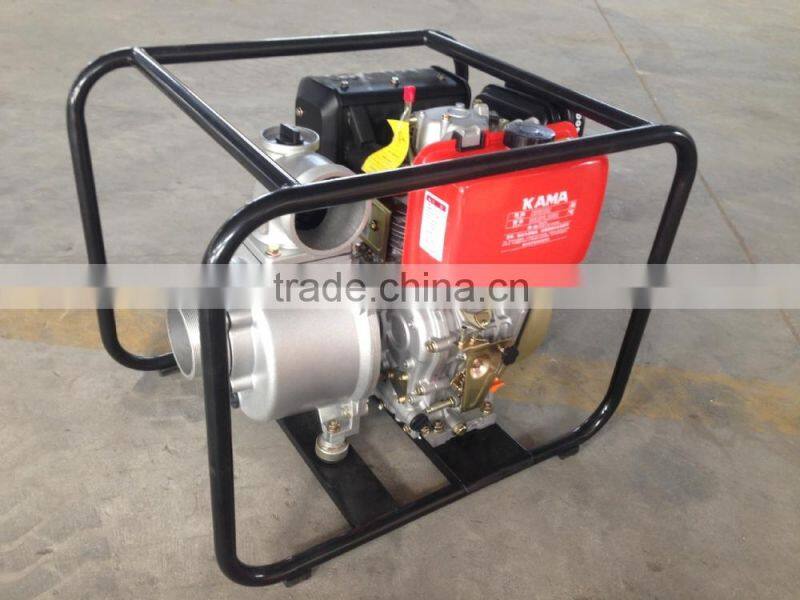

Agricultural Machinery Water Pump/diesel Water Pump/gasoline Water Pump/petrol Water Pump WP30D

Name: Agricultural Machinery Water Pump/diesel Water Pump/gasoline Water Pump/petrol Water Pump WP30D
Brand: FSH or OEM(KAMA engine)
Availability: InStock

FOB Price

US$ 50 - 150 / Set

5 Sets(Min. Order)

Port shanghai
Payment TermsT/T D/P D/A

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Jiangsu, China	Brand Name	FSH or OEM(KAMA engine)
Model Number	WPD20,WPD30,WPD40	Theory	Centrifugal Pump
Structure	Diaphragm Pump	Usage	Water
Power	Electric	Standard or Nonstandard	Standard
Fuel	Diesel	Pressure	Low Pressure
Application	Other, AGRICULTURE IRRIGATION

Product Description

Model	WPD20	WPD30	WPD40
Suction, discharge port diameter[mm (in)]	50 (1.97)	80 (3.15)	100 (3.94)
Discharge capacity [m3/h]	22	30	40
Total head lift [m (ft)]	26 (85.3)	25 (82.02)	28 (91.86)
Max suction head [m (ft)]	8 (26.25)	8 (26.25)	8 (26.25)
Rotation speed [rpm]	3600	3600	3600
Priming time [s/4m]	80	120	180
Overall dimension (LxWxH) [mm]	505x425x540	585x470x575	670x490x625
Dry weight [kg (lbs.)]	35 (77)	52 (114.4)	69 (151.8)
Engine model	SH170F	SH178F	SH186F
Rated power [KW (Hp)]	2.8 (3.8)	4.10 (5.50)	6.30 (8.50)
Rated rotation speed [rpm]	3600	3600	3600
Displacement [ml (cu.in)]	211 (12.88)	296 (18.06)	406 (24.78)
Starting system	Recoil starter/Electric starter	Recoil starter/Electric starter	Recoil starter/Electric starter
Fuel tank capacity [L (gal.)]	Small tank 2.5 (0.55)	Small tank 3.5 (0.77)	Small tank 5.5 (1.21)
Fuel consumption [g(ml)/KW.h]	285 (339.29)	283 (336.9)	280 (333.3)
