Specifications
1.1310nm CATV laser optical transmitter2.With AGC/MGC
3.3~12dBm (2~16mW) output power
4.With CE and RoHS

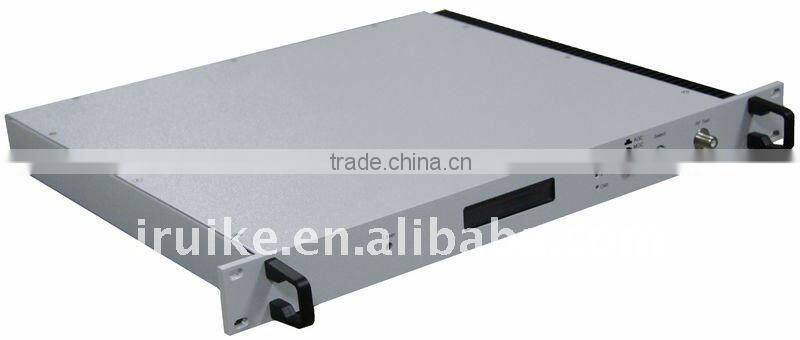

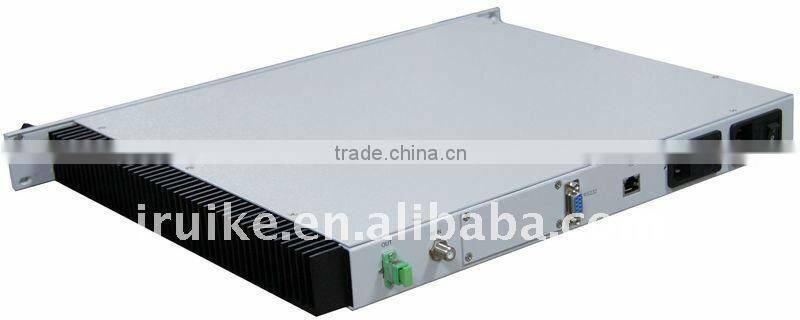

1310nm CATV laser optical transmitter ETX1302
Description:
ETX1300 series 1310nm CATV laser optical transmitter adopts famous brand high linearity DFB laser, and builds-in perfect pre-distortion adjustment circuit. The internal micro-processor software has many functions such as laser monitoring, number display, trouble alarm and on-line management. Once the working parameter of the laser is out of the fixed range, there will be a red light glistening to alarm.
Feature :
1. High-performance DFB laser to provide high quality signal, max output 36mW.
2. Perfect predistortion circuit to guarantee the perfect CTB and CSO when C/N in high standard.
3. With AGC/MGC control to guarantee to the stable output in different RF in.
4. Standard RS232 port for local management and motoring.
5. Standard RJ45 port for remote management.
6. Switch power supply 90V ~265V AC or -48V DC for the user’s choice.
Parameters:
Items |
1300-02 |
13100-04 |
1300-16 |
1300-08 |
1300-10 |
1300-12 |
1300-14 |
1300-16 ~ 36 |
|
Output(mW) |
≥02 |
≥04 |
≥06 |
≥08 |
≥10 |
≥12 |
≥14 |
≥16 ~ 36 |
|
Output(dBm) |
3.0 |
6.0 |
7.8 |
9.0 |
10.0 |
10.8 |
11.5 |
12 ~ 15.6 |
|
Wavelength(nm) |
1310±20 |
||||||||
Fiber Connector |
FC/APC Or SC/APC |
||||||||
Bandwidth(MHz) |
45 ~ 862 |
||||||||
CNR(dB) |
51 |
||||||||
CTB(dB) |
≥65 |
||||||||
CSO(dB) |
≥60 |
||||||||
RF In(dBµV) |
80±5 |
||||||||
Unflatness(dB) |
≤0.75 |
||||||||
Power Consumption |
≤30 W |
||||||||
Power Voltage(V) |
220VAC or -48VDC |
||||||||
Working Temp(°C) |
-20 ~ 85 |
||||||||
Size(″) |
19″×11″×1.75″ |
||||||||
Weight(kg) |
5.0 |
||||||||
Certicificates:
