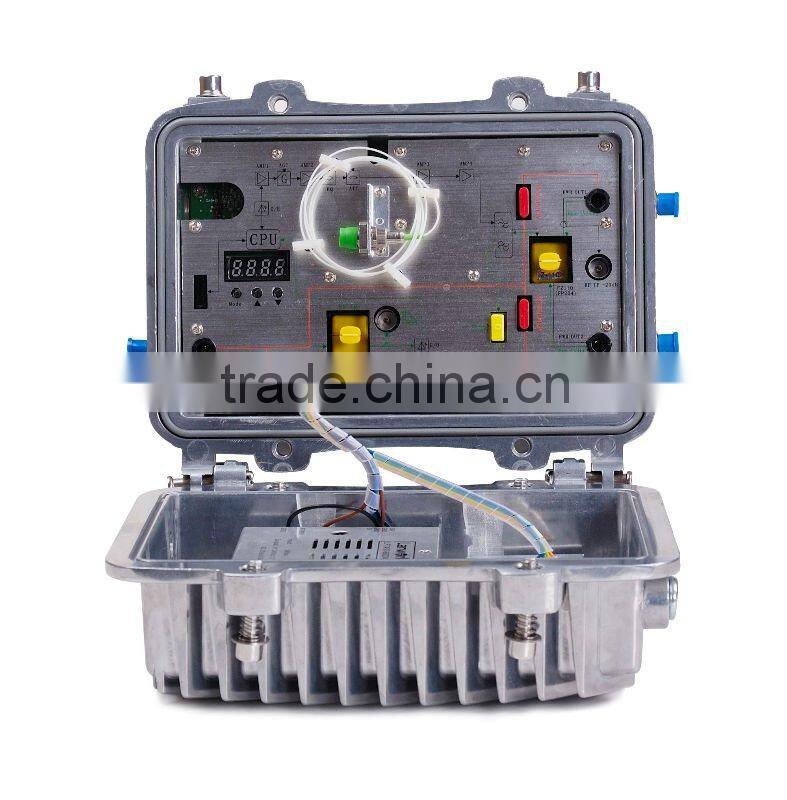

outdoor optical receiver with AGC function
Products Description
ERB802A is the high end 2 output CATV network optical receiver. This type adopt GaAs MMIC amplification in preceding stage, post processing adopt GaAs power double module, built-in AGC design and reserve optical communication interface which can configure standard Class 2 network management responder. This is the main model in large CATV networks.
Forward Path
Optical Parameter
Optical Return Loss |
dB |
≥45 |
Optical Wavelength |
nm |
1100 ~ 1600 |
Optical Fiber Connector Model |
|
FC/APC or chosen by the subscribers |
Received Optical Power |
dBm |
-7 ~ +2 |
RF Parameter
Frequency Range |
MHz |
45 ~ 862 |
Band-in Flatness |
dB |
±0.75 |
Output Level |
dBμV |
≥108 |
Maximum Output Level |
dBμV |
≥112 |
Return Loss |
dB |
≥16 |
Input Impedance |
Ω |
75 |
Electrically-controlled equilibrium range |
dB |
0 ~ 10 |
Electrically-controlled attenuate range |
dBμV |
0 ~ 20 |
Reverse Transmitter
Optical Parameter
Optical Wave Length |
nm |
1310±10 |
Output Optical Power |
mW |
1 ~ 5 |
Optical Fiber Connector Model |
|
FC/APC or chosen by the subscribers |
RF Parameter
Frequency range |
MHz |
5 ~ 65 |
Band-in flatness |
dB |
±1 |
Input Level |
dBμV |
85 ~ 90 |
Supply voltage |
V |
A:AC(150 ~ 265) B:AC(35 ~ 90) |
Working Temperature |
°C |
-40 ~ 60 |
Storage Temperature |
°C |
-40 ~ 60 |
Power Consumption |
VA |
≤30 |
Dimension |
mm |
245(L) X 200(W) X 130(H) |
Link Parameter
CNR |
dB |
≥51(@-2dBm input) |
CSO |
dB |
≥65 |
CTB |
dB |
≥60 |

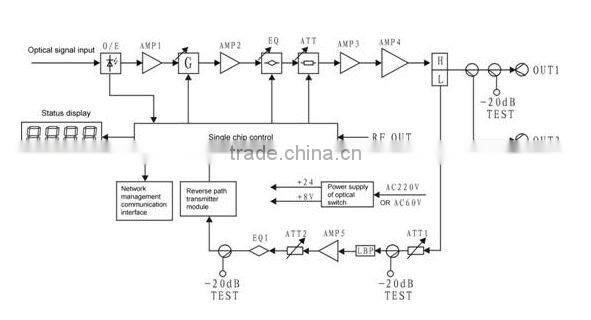

Functional Block Diagram
