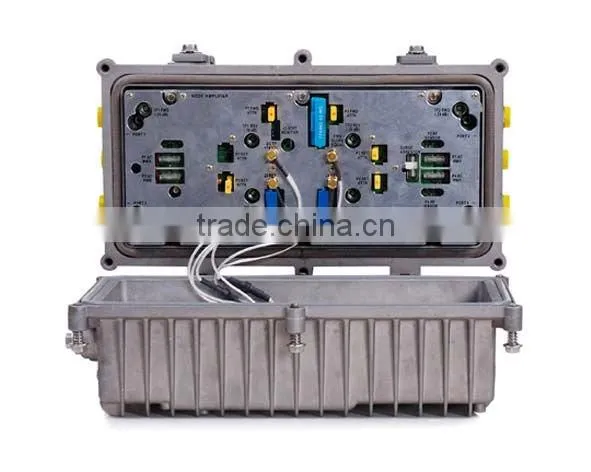

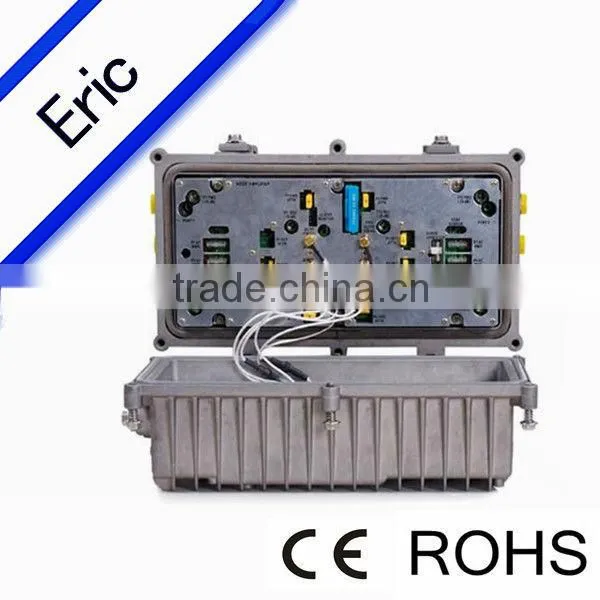

Outdoor Four outputs optic Node
1.0 Product Specification
EN-870 Four Output Optical node is a new exploitative bi-direction broadband optical node which combines the current HFC transferring network and international advanced technology. Main part in device adopt module type, it can be assembled in many different ways according to the user’s needs. It’s considered and solved the noise figure problem in the return channels, and sets up good operating status monitor circuit, obligates the standard network and responder ports. It’s an ideal transferring platform for simulated and digital signals to build the large-scale optical network.
2.0 Optical Parameter
Obverse Receiving |
Reverse Transmitting |
||
Optical Wavelength(nm) |
1100 ~ 1600 |
Optical Wavelength(nm) |
1310±10 |
|
Input Optical Power range (dBm) |
-5 ~ +2 |
Return Transmitting Output power (mw) |
1-5mW |
|
Optical connector Optical tie-in Model |
FC/APC or SC/APC |
Optical connector Optical tie-in Model |
FC/APC SC/APC |
|
Optical return Loss(dB) |
45 |
Optical return Loss(dB) |
45 |
3.0 Link Parameter
Obverse Receiving |
Reverse Transmitting |
CNR(dB) 50 |
CNR(dB) 50 |
CSO(dBc) 62 | |
CTB(dBc) 65 |
Note: Observe path test condition: -1dBm input, RF PAL-D full channels load.
4.0 Other Parameter
Power Voltage |
AC180V ~ 250V/AC60V |
Power Consumption |
80W |
Working Temperature |
-10 ~ 60°C |
Storage Temperature |
-20 ~ 70°C |
Dimension |
400W*230D*200H(mm) |
Weight |
14kg |
5.0 RF Parameter
Item |
Obverse |
Reverse |
Frequency Band(MHz) |
45/87 ~ 750 45/87 ~ 860 |
5 ~ 35/65 |
Flatness In Band(dB) |
± 0.75 |
± 1 |
|
RF Impedance(Ω) |
75 |
75 |
Return Loss(dB) |
16 |
16 |
Middle attenuation(dB) |
Inserter can be chosen (1, 2...) |
Inserter can be chosen (1, 2...) |
Middle slope(dB) |
Inserter can be chosen(3, 6...) |
Inserter can be chosen(3, 6...) |
Port output |
Each port 108 dBµV Output |
85 dBµV Input |

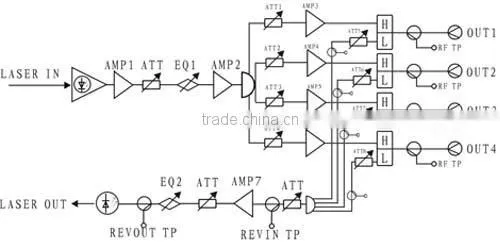

6.0 Functional Block Diagram
