Home > Products > Indoor optical receiver > CATV FTTH Optical Receiver /optical Node/agc Ftth Receiver

CATV FTTH Optical Receiver /optical Node/agc Ftth Receiver

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Port SHANGHAI/NINGBO/SHENZHEN
Payment TermsCredit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China		Brand Name	ERIC
Model Number	ERH1085

Product Description

CATV agc FTTH Optical Receiver ERH1085

Description

ERH1000 Series product is designed for FTTH/FTTB or HFC applications. The general type ERH1085 has a normal output level 85dBuV per-channel for TV. The enhanced type ERH1095 provide higher level, 95dBuV with -7dBm input power and 3.5% optical modulation index.

Feature

1.CATV agc FTTH optical receiver
2.-7~+2dBm input power
3.85dBuV output
4.45MHz~1GHz
5.CE and RoHS

Specification

Downstream signal path		General
Light Wavelength	1260 ~ 1620nm	Power Consumption	3.2W
Optical Input Power Range	-8~ +1dBm	Voltage	12V DC
Frequency Range	45MHz ~ 1GHz	RF Connector(s)	F Female
Output Level	85dBuV(20dB adj.)	Optical Connector(s)	SC/APC
Flatness	±0.5dB	Dimensions(L×W×H)(mm)	100×80×28
Slope	0dB	Weight	0.2kg
Return Loss	16dB	Operating Temp	-20 ~ 65°C
Noise Figure	51dB	ESD(RF) Port	2KV
CTB 59channels	≥60dB
CSO 59channels	≥58dB

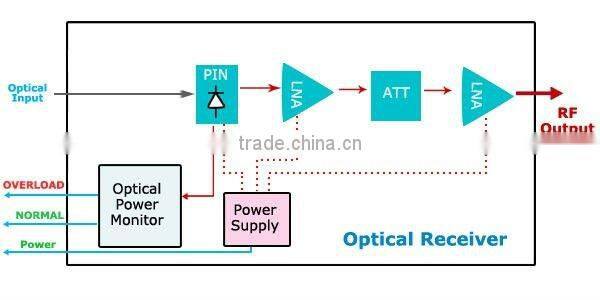

Diagram

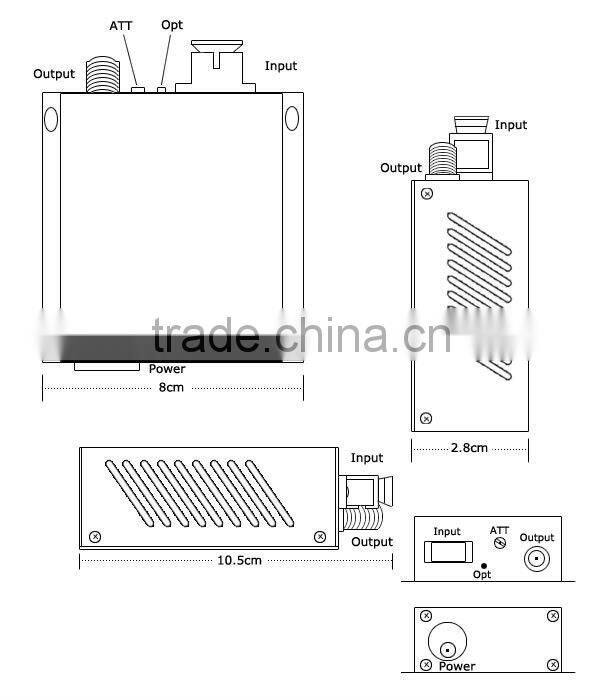

Drawing

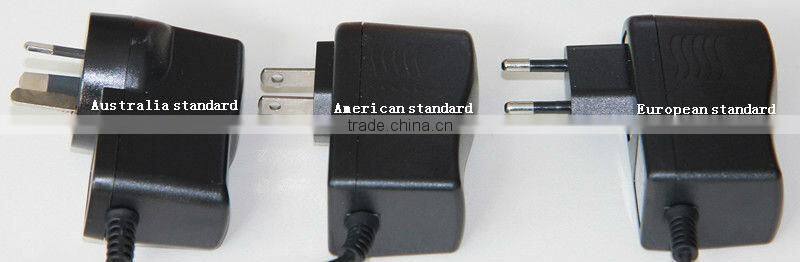

Power adaptor

Contact us

We highly appreciate your any enquiry by email, or instant message ,

We will reply your email within 12 hours .

please feel free to call us at any time if there is any questions.

Transportation

All available shipping ways could be applied. by express,air .

Appointed shipping company or our own forwarders all could be used in shipment.

Full-way tracking the items for you before the goods arrive .

Certificates :
