Mini FTTH AGC Fiber Optic Receiver/mini receiver/strong mini receiver

Name: Mini FTTH AGC Fiber Optic Receiver/mini receiver/strong mini receiver
Brand: ERIC
Price: USD $21 - 35 / Piece

FOB Price

USD $21 - $35 / Piece

1 Piece(Min.Order)

Supply Ability 2000 Piece / Pieces per Month
Port SHANGHAI/NINGBO/SHENZHEN
Payment Terms:Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:

Zhejiang, China

Brand Name:

ERIC

Model Number:

ERH100

Product Description

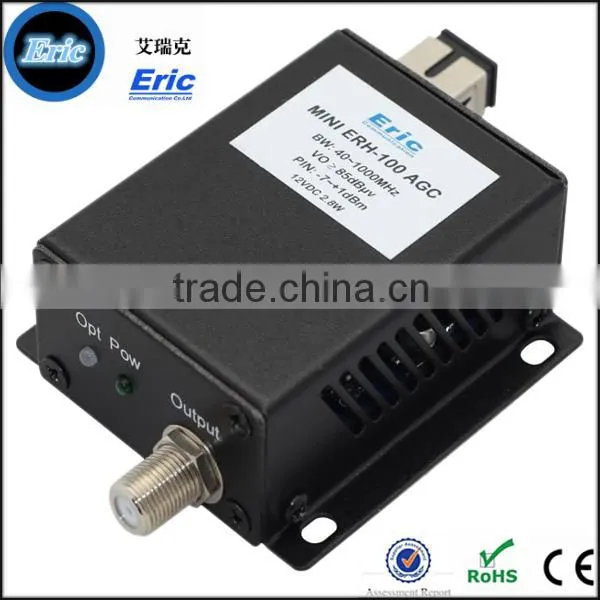

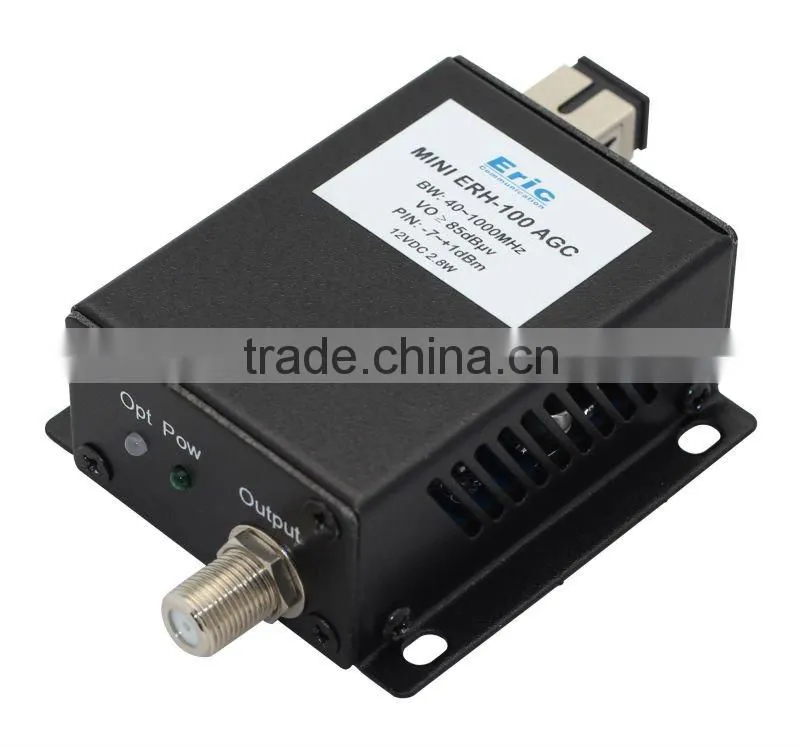

FTTH AGC Strong Mini Fiber Optic Receiver ERH100

Description

ERH-100 Mini AGC FTTH Optical Receiver is designed for PON FTTH broadband analog or digital RF services. Working at extremely low optical input power, ERH-100 still generates excellent broadband RF signals for home subscribers.

Feature

1.Mini FTTH AGC Fiber Optic receiver
2.Small size,good heat output
3.1GHz Bandwidth
4.76dBuV output level
5.Widely used

Specifications

Item	Parameter
Input Optical Wavelength	1290~1600 nm
Working Optical Power	-7 ~ +1dBm AGC
Optical Connector	SC/APC
Optical Return Loss	55dB
RF Bandwidth	40 ~ 1000MHz
RF Connector	F Female
RF Output Impedance	75Ω
RF Output Level	76dBuV @ -7~+1dBm AGC input
RF Output stability in AGC range	±1dB
RF Flatness	± 0.5dB
RF Return Loss	>16 dB
CNR	>50 dB @ -2dBm input
CSO 59channels	≥65dB
CTB 59channels	≥65dB
Power Supply	12 V DC
Power Consumption	< 2.8W
Working Temperature	-10 ~ +60°C
Storage Temperature	-40 ~ +85°C
Dimension (LWH) (mm)	69×64×28
Weight	13g (not including power adapter)

Power adaptor

Contact us

We highly appreciate your any enquiry by email, or instant message ,

We will reply your email within 12 hours .

please feel free to call us at any time if there is any questions.

Transportation

All available shipping ways could be applied. by express,air .

Appointed shipping company or our own forwarders all could be used in shipment.

Full-way tracking the items for you before the goods arrive .
