10Gb/s 1310nm Multi-rate X2 Optical Transceivers

Specifications

1.10Gb/s 1310nm Multi-rate X2 Optical Transceivers1.X2 MSA 2.IEEE802.3ae-2002 compliant
3.GR-253-CORE
4.ROHS compliant

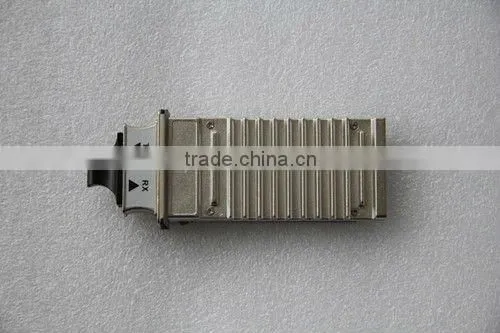

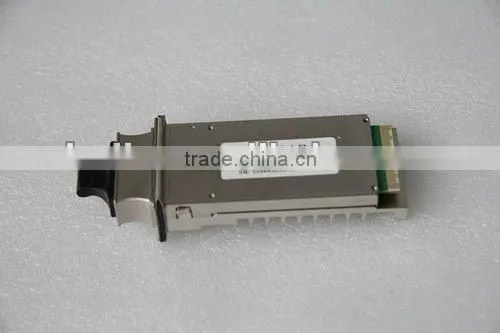

10Gb/s 1310nm Multi-rate X2 Optical Transceivers



Description :

 10GbE X2 transceiver module X2-10GB-LR is a hot pluggable in the Z-direction module that is usable in typical ruter line card applications, Storage, IP network and LAN and compliant to X2 MSA .

 This type is a fully integrated 10.3Gbit/s optical transceiver module that consists of a 10.3Gbit/s optical transmitter and receiver. This version of transceiver line uses a 1550nm EA-DFB Laser Diode to achieve 40km over standard single mode fiber as specified by 10GBASE-ER in the IEEE 802.3ae standard.

 Feature :

 1. Hot Z-pluggable

2. X AUI Electrical Interface : 4lanse @ 3.125Gbit./s

3. Below 4Wpower dissipation

4. SC-Duplex Optical  Receptacle

5. Digital Diagnostic Monitor Interface

6. Very low EMI and excellent ESD protection

7. Uncooled 1310nm DFB laser and PIN ROSA

8. Up to 10KM for single mode fiber

9. Operating temperature range  0°C to 70°C







Absolute Maximum Ratings



Parameter	Symbol	Min.	Max.	Unit
Storage Temperature	TS	-40	85	°C
Case Temperature	Tc	0	70	°C
Power Supply Voltage	VCC3	0	4	V
	Vcc5	0	5.5	V
	Vccaps	0	1.5	V
Operating Relative Humidity	RH		85	%



Optical Characteristics (TOP = 0 to 70 °C)
Transmitter (0~70°C@9.953Gb/s~11.1Gb/s)
Parameter	Symbol	Min.	Typ.	Max.	Unit	Note
Operating Date Rate			10.3125		Gb/s
Ave. Output Power	Po		-2		dBm	1
Output Centre Wavelength	λ	1260		1350	nm
Disable Power	Poff			-30	dBm
Extinction Ratio	ER	3.5			dB	1
Sidemode Supression Ratio		30			dB
Rise/Fall Time (20%~80%)	Tr/Tf			45	ps
Signal Speed Variation from nominal		-100		100	ppm
Receiver (0~70°C@9.953Gb/s~11.1Gb/s)
Parameter	Symbol	Min.	Typ.	Max.	Unit	Note
Operating Date Rate			10.312		Gb/s
Overload	Po	0.5			dBm
Input Centre Wavelength	λ	1260		1350	nm
Receiver Sensitivity	Pmin			-14.4	dBm	1
Stressed Sensitivity in OMA				-11.3	dBm	2
LOS Assert	LosA	-30			dBm
LOS De-assert	LosD			-18	dBm
LOS Hysteresis		0.5		4	dB
Optical Return Loss		14			dB
Jitter Tolerance		GR-253-CORE/ITU-T G.783				1

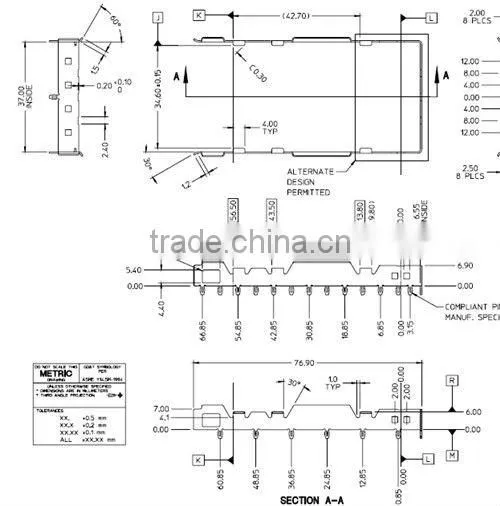

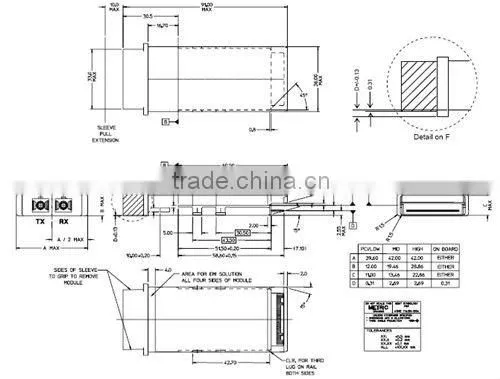

Package Dimensions















 Certificates :
