Specifications
1.Media converter2.Multi mode and single mode typs optional
3.It has RJ45 port and SC/ST port
Click here !

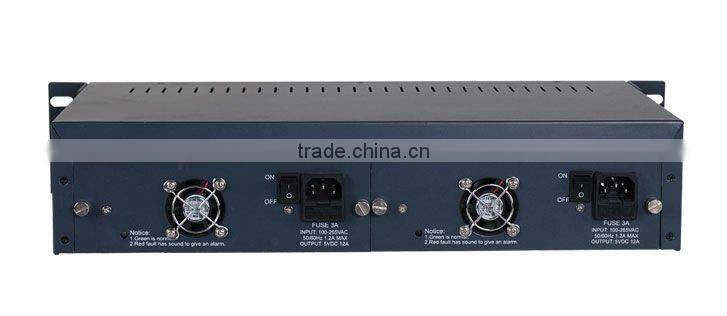

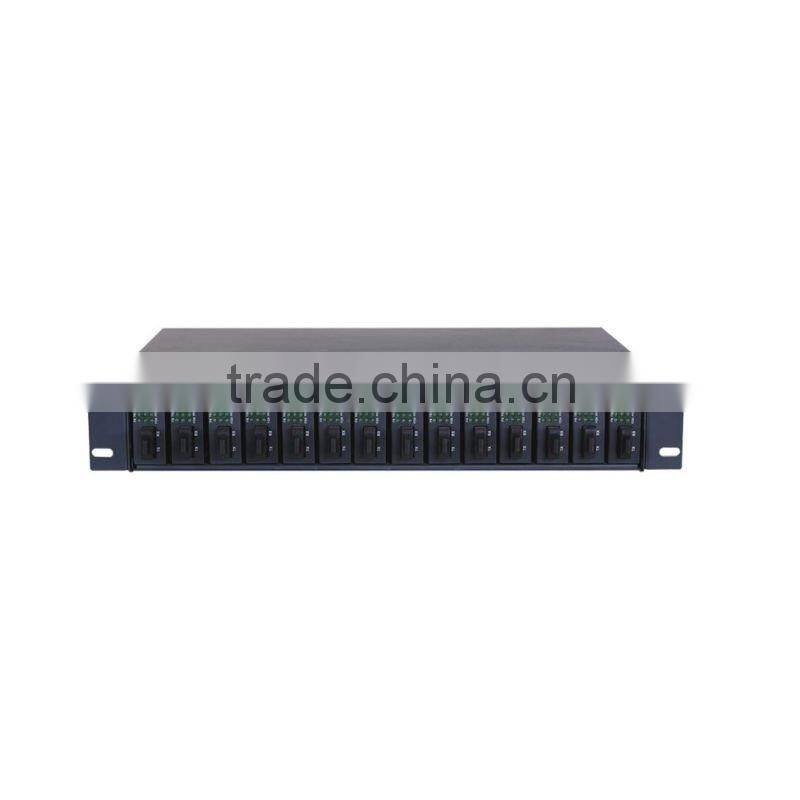

Fiber Media converter
Features
Optical fiber transceiver is a kind of optical electricity signal convertor that is used to change the electrical signal into the optical signal in the network;
ER-RACK-14 Series 10/100M self adapt optical fiber transceivers totally reach the standards of IEEE802.310BaseT, IEEE802.3U 100BaseTx, 100Base-Fx;
10/100M self adapt optical fiber transceivers can be divided into multi-mode optical fiber transceivers and single-mode optical fiber transceivers;
It has 1RJ45 port used in connecting twisted-pair, and 1SC/ST port used in connecting optical fiber.
It has 6LED indicator lamps: POWER, FX100, TX100, FX Link/Act, TX Link/Act, Fdx.
Technology Parameter
Standard |
IEEE802,3 10BaseT,IEEE802,3u100Base-TX,100Base-FX |
Duplex Mode |
Whole duplexer/Semi-duplexer |
Port |
Twisted-pair;RJ45 Optical Fiber; SC or ST |
||
Transferring Speed |
Twisted-pair;10Mbps,100Mbps |
Power Voltage |
AC220V(175 ~ 250V),50H DC5V,1A |
Optical Fiber;100Mbps |
Operating Temperature |
0 ~ 50°C |
|
Twisted-pair |
CAT 5, 5E |
Storage Temperature |
-20 ~ 70°C |
Optical Fiber |
Multi-module;50/125,62.5/125µm |
Humidity |
5% ~ 90% |
Single-module;8.3/125,9/125,10/125µm |
Dimension |
26H*70W*95Lnn |
3.0 Optical Fiber Parameter
Item |
YRT-M |
YRT-S-A |
YRT-S-B |
YRT-S-C |
Port |
SC/ST |
SC |
SC |
SC |
Type |
Multi-module |
Single-module |
Single-module |
Single-module |
Central Wavelength |
850/1310nm |
1310nm |
1310nm |
1310nm |
Transferring Distance |
2knm |
25knm |
40knm |
60knm |
Minimum Power |
-19.0dBm |
-15.0dBm |
-9.0dBm |
-4.0dBm |
Maximum Power |
-12.0dBm |
-9.0dBm |
-5.0dBm |
0dBm |
Receiving Sensitivity |
<30 dBm |
<-32 dBm |
<-35 dBm |
<-38 dBm |
Permitted Link Consumption |
11.0 dBm |
17.0 dBm |
26.0 dBm |
34.0 dBm |
