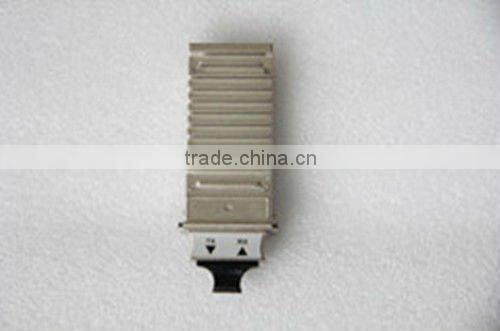

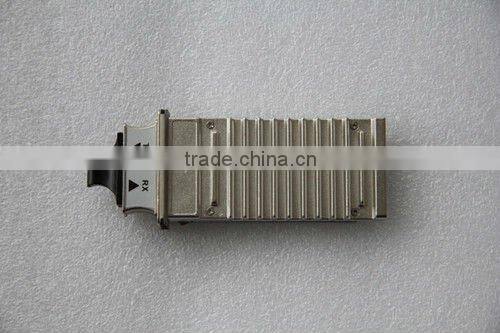

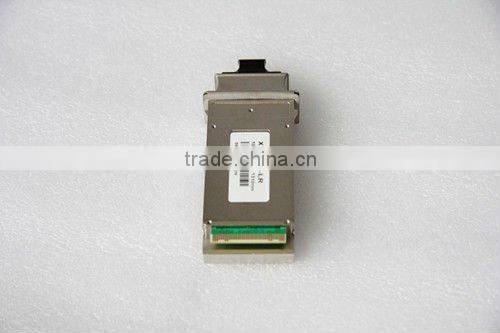

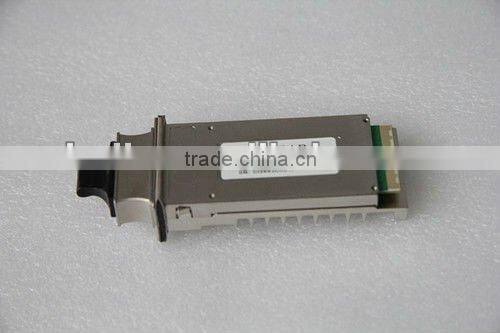

RoHS Compliant10Gb/s 1310nm Multi-rate X2 Optical Transceivers
Description :
10GbE X2 transceiver module X2-10GB-LR is a hot pluggable in the Z-direction module that is usable in typical ruter line card applications, Storage, IP network and LAN and compliant to X2 MSA .
This type is a fully integrated 10.3Gbit/s optical transceiver module that consists of a 10.3Gbit/s optical transmitter and receiver. This version of transceiver line uses a 1550nm EA-DFB Laser Diode to achieve 40km over standard single mode fiber as specified by 10GBASE-ER in the IEEE 802.3ae standard.
Feature :
1. Hot Z-pluggable
2. X AUI Electrical Interface : 4lanse @ 3.125Gbit./s
3. Below 4Wpower dissipation
4. SC-Duplex Optical Receptacle
5. Digital Diagnostic Monitor Interface
6. Very low EMI and excellent ESD protection
7. Uncooled 1310nm DFB laser and PIN ROSA
8. Up to 10KM for single mode fiber
9. Operating temperature range 0°C to 70°C
Absolute Maximum Ratings
| Parameter | Symbol | Min. | Max. | Unit |
| Storage Temperature | TS | -40 | 85 | °C |
| Case Temperature | Tc | 0 | 70 | °C |
| Power Supply Voltage | VCC3 | 0 | 4 | V |
| Vcc5 | 0 | 5.5 | V | |
| Vccaps | 0 | 1.5 | V | |
| Operating Relative Humidity | RH | 85 | % |
| Optical Characteristics (TOP = 0 to 70 °C) | ||||||
| Transmitter (0~70°C@9.953Gb/s~11.1Gb/s) | ||||||
| Parameter | Symbol | Min. | Typ. | Max. | Unit | Note |
| Operating Date Rate | 10.3125 | Gb/s | ||||
| Ave. Output Power | Po | -2 | dBm | 1 | ||
| Output Centre Wavelength | λ | 1260 | 1350 | nm | ||
| Disable Power | Poff | -30 | dBm | |||
| Extinction Ratio | ER | 3.5 | dB | 1 | ||
| Sidemode Supression Ratio | 30 | dB | ||||
| Rise/Fall Time (20%~80%) | Tr/Tf | 45 | ps | |||
| Signal Speed Variation from nominal | -100 | 100 | ppm | |||
| Receiver (0~70°C@9.953Gb/s~11.1Gb/s) | ||||||
| Parameter | Symbol | Min. | Typ. | Max. | Unit | Note |
| Operating Date Rate | 10.312 | Gb/s | ||||
| Overload | Po | 0.5 | dBm | |||
| Input Centre Wavelength | λ | 1260 | 1350 | nm | ||
| Receiver Sensitivity | Pmin | -14.4 | dBm | 1 | ||
| Stressed Sensitivity in OMA | -11.3 | dBm | 2 | |||
| LOS Assert | LosA | -30 | dBm | |||
| LOS De-assert | LosD | -18 | dBm | |||
| LOS Hysteresis | 0.5 | 4 | dB | |||
| Optical Return Loss | 14 | dB | ||||
| Jitter Tolerance | GR-253-CORE/ITU-T G.783 | 1 | ||||

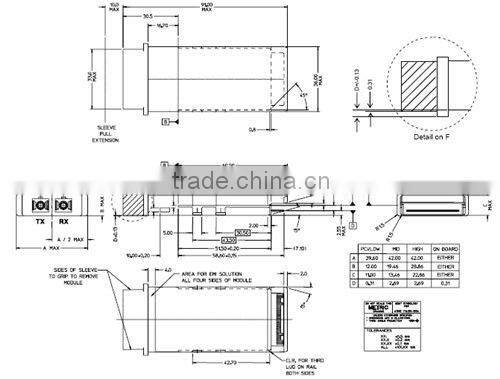

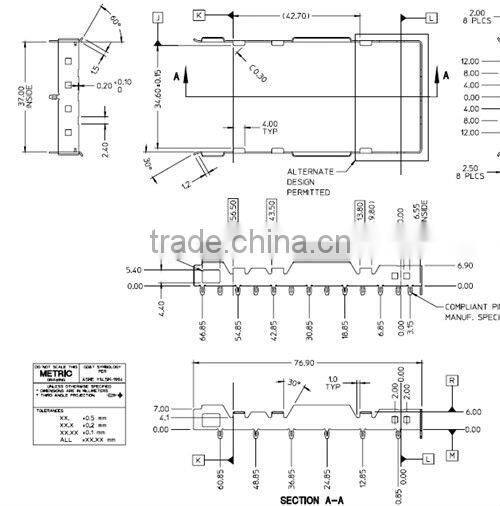

Package Dimensions
