I. Main performance and structure features
1. Double frequency conversion control, bag length can be set and cut in one step, saving time and film;
2. Adopt PLC&HMI programming software, easy operating and setting;
3. Self failure diagnosis and clear failure display;
4. High sensitivity photoelectric eye color trace the bag, numerical input of cutting sealing position for extra accuracy;
5. PID control temperature independently which is more suitable for packing different materials
6. Positioned stop function, without sticking knife or wasting time;
7. Simple driving system, reliable working, convenient maintenance.
8. All control is realized through software and it can install intermittent air device and spray alcohol device. The adjustment can be realized at any time and technical upgrade.
II. Application
Suitable for packing regular objects such as biscuit, bread, instant noodle, moon cakes, industrial parts, paper box or trays.
III. Optional device
1. Coding machine
2. Air filling device
3. Punch machine
4. All stainless steel frame
IV. Specification
Type |
SK-350B |
SK-350D |
SK-400B |
SK-400D |
SK-450B |
SK-450D |
Film width |
Max.350mm |
Max.400mm |
Max.450mm |
|||
Bag length |
65-190mm |
90-220mm |
130-320mm |
180-400mm |
130-320mm |
180-420mm |
Bag width |
50-160mm |
50-185mm |
50-210mm |
|||
Product height |
Max.40mm |
Max.60mm |
Max.40mm |
Max.60mm |
Max.40mm |
Max.60mm |
Film roll diameter |
Max.320mm |
|||||
Packaging rate |
40-230bags/min |
|||||
Power |
220V 50/60Hz 2.6KVA |
|||||
Machine Size |
4020x770x1410mm |
4020x770x1450mm |
4020x800x1450mm |
|||
Machine weight |
700KG |
800KG |
920KG |
|||
Remarks |
Date printer; Air filling device |
|||||
V. Electric detailed list:
NO. |
Product Name |
Brand |
1 |
PLC |
Panasonic (Japan) Schneider Siemens |
2 |
INVERTER |
Schneider (France) |
3 |
Proximity switch |
Omron (Japan) |
4 |
7 inch Touch screen |
WECON (Taiwan) |
5 |
Button Switch |
Schneider (France) |
6 |
Terminal Blocks |
Weidmuller(Germany) |
7 |
Intermediate Relay |
Schneider (France) |
8 |
Switching power |
Meanwell (Taiwan) |
9 |
Solid state relay |
Schneider (France) |
10 |
Temperature controller |
YaTay (Taiwan) |
11 |
Emergency Stop Switch |
Schneider (France) |
12 |
Two-position switch |
Schneider (France) |
13 |
Dynamo |
Yongkun (Taiwan) |
14 |
Encoder |
PASO |
15 |
Electric eye |
YaTay(Shanghai) |
16 |
Circuit breaker |
MUNLAN |
Disc feeding packing machine | ||
17 |
Electric Eye |
SICK (Germany) |
18 |
Inverter |
V.T.V-Beijing |
19 |
Dynamo |
Schneider (France) |
20 |
Touch Screen and extension |
Honest (Guangzhou) |

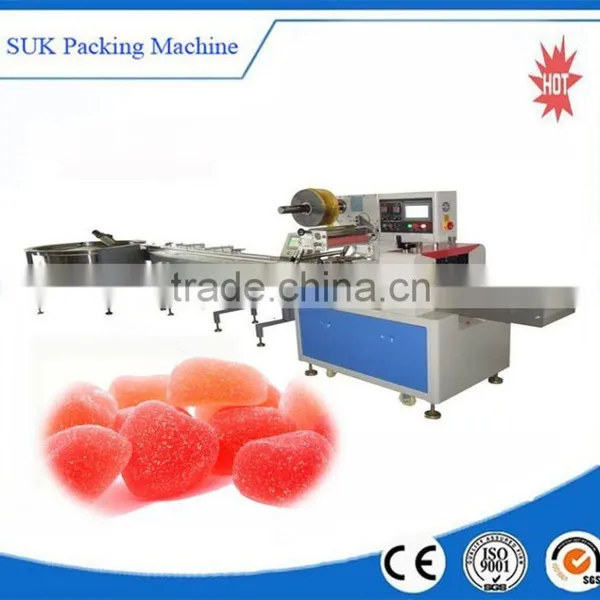

Machine pictrues:
Effect of packing :
Quality guarantee:
1. Each machine is manufactured by our professional workers.
2. Each machine with a strict inspection before out of storage.
3. Each machine use a large number of 304 stainless steel.
4. Each machine use good quality electric elements.
5. After-sales service commitment: after one month, 3 months... we will have return visiting by phone or mail.
6. The warranty time is one year.
Within Warranty period, if under the usage of instruction sheet, any product broken or damage, we will offer the repair service for free or replace for free, but clients pay for the freight from China to local place. If need our engineer go to help, clients need to pay for the freight of round-trip.
7. Beside the warranty days, we continue to provide life-long maintenance services.
Terms:
1. Original: made in China
2. Package: wooden case.
3. Loading port: Foshan
4. Payment terms: 30% deposit with the order, 70% balance before shipment.
5. Delivery time:45 days after receiving deposit and samples
6. Guarantee: 1 year
7. Installation: We can send one technician to buyer's factory to install machine and train their worker. The buyer has to pay USD80 per day for the technician as subsidy. All the expense, such as visa, round trip tickets, and accommodation should be born by buyer.
8. Remark: If you have special demand of some parts like motor, cylinder, control panel, filling, material, conveyor, collect table, plexiglass cover and others, please tell us.
