Introduction
PEX series jaw crusher is one production which is based on years’experience and technology development. The continuous improvement and refinement have made them a preferred crusher for professionals and our customers. They can meet most crushing requirements in primary and secondary crushing. The largest compression resistance of the material that jaw crusher suitable to crush is less than 320MPa.This series are widely used in stone mining, metallurgy, construction, smelting, hydraulic and chemical industries, etc.
Advantages and Features
1, Symmetrical deep crushing chamber is adopted to maximize range of feed size, capacity and crushing ratio. 2, Three-dimensional software is adopted to optimize crusher parameters and parameter proportion, and reduce equipment self-weight, so capacity is increased more than 30%.
3, Bearing seat is designed integrally, so manufacturing difficulty is greatly reduced, and bearing life is increased.
4, There is a thick replaceable plate on the top of moving jaw to prevent moving jaw from being impacted.
5, Wedge is adopted to replace traditional gasket, so the adjustment is much easier and more reliable. Discharge size can be adjusted.
Working Principle
The motor transmits power through belt, driving the active jaw to do periodic motion towards the fixed jaw by the eccentric shaft. The angle between toggle plate and moving jaw plate increases when active jaw moves. The angle between toggle plate and moving jaw decreases when moving jaw moves down. The materials will be crushed in this process. The moving jaw moves leaves fixed jaw by pulling rod and spring, the final crushed stuff will be discharged from the outlet.
Specification
In order to choose the suitable model ,please let us know more information in your enquiry:
What is the type and size of raw material?
What is the raw material max size before crushed(mm)?
What is required size of final product(mm)?
What is required capacity of final product(t/h)?

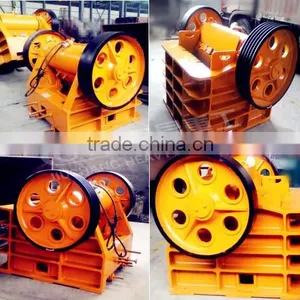

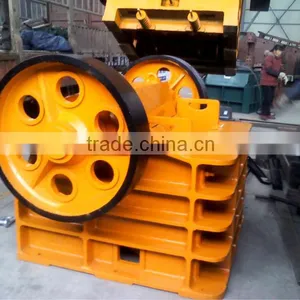

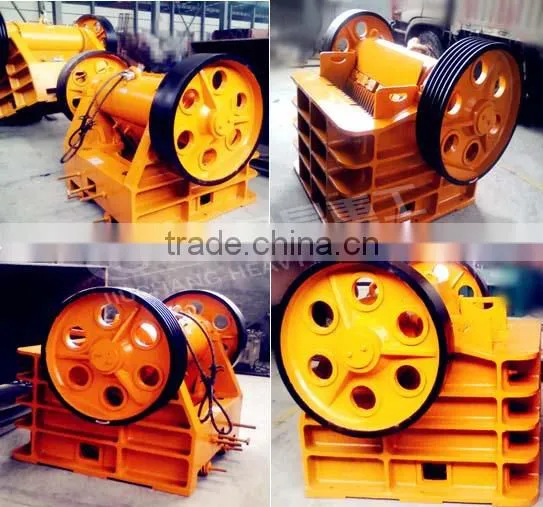

Equipment photos

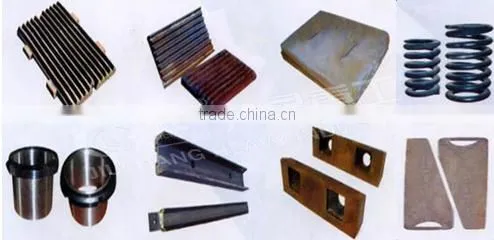

Key spare parts
Packing: Export standard package, usually in bulk or wood case as per different requirements.
Shipping: We transport the goods to the port of shipment, then ship the goods to your required destination port.
Pre-sale services
1- select the best model as per customer's specification,
2- disscuss and reasearch with customer, and design the best scheme for customer,
3- arrange pick-up for customer visiting the factory.
Services during sale
1- arrange production ASAP, ensure shorting the delivery time,
2- make test-run strictly, make sure the machine is in the best working state,
3- check all the parts of the machine, guarantee high quality,
4- prepare documents required to pass customs clearance,
5- arrange shipment as per your requirements,
After-sale services
1- provide installation and working instruction, arrange engineers to help to install the machine,
2- train the technical operator for customer,
3- provide technical exchanging at any time,
4- offer spare parts at best prices.
Company Overview
Shandong Jiuchang Heavy Industry Technology Co., Ltd. was established in 2008. We are a professional manufacturer of various type CRUSHERS for mining and construction in China. We have two factories located in Weifang city, Shandong province. The factory covers 140,000 square meter. Annual produce 5000 set of crushing machines to the world market. Our roller crusher is the top quality in China.
Jiuchang Heavy Industry has passed ISO9001:2008, all of our products with CE certificate.
By 2010, we are the TOP10 CRUSHER BRAND in China.
By 2011, our company was rated as HONEST AND TRUSTWORTHY ENTERPRISE by Shandong Provice.
Our key product is PG series roller crusher, PE series jaw crusher, PC series hammer crusher, PF series impact crusher, PGS shaft shredder, Cone crusher. We also specialize in mobile crushing plant, Construction waste crushing production line, Sand making production line. And also supply vibrating feeder, feeding bin, belt conveyor, vibrating screen, magnetic separator etc.
Products of Jiuchang have been sold to South Africa, Zimbabwe, Indonesia, Malaysia, Cyprus, Australia, South America, East Europe, Russia and so on, more than 20 countries.
We believe "Quality first, Customer first, Credibility first" . Always provide high quality machines, always provide customer-satisfied services. Jiuchang is always at your services.
Shandong Jiuchang Heavy Industry Technology Co., Ltd.
Address: 368 Quyang Road, Linqu Country, Weifang City, Shandong Provice, China.
Phone: 0086-536-2082685 Mr. Eric Hu
Workshop
Customer visit
On the exhibition

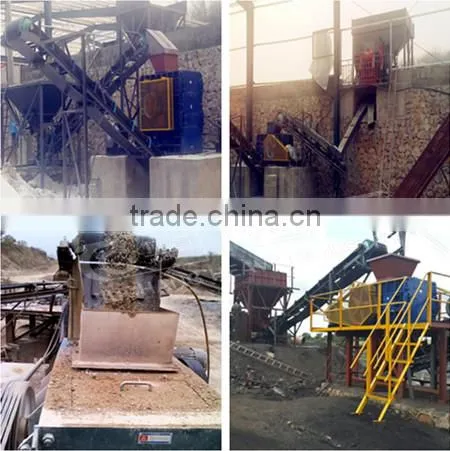

Work site
Certificate
What about the quality of your products ?
1- Company passed ISO9001:2008, all the product with CE certificate,
2- 7 years experience in manufacturing various crusher, very skillful at the machines,
3- Each worker in our factory is with strict professional training, only that passed the test can start working,
4- All products adopt famous brand parts, ensure high working performance,
5- Make test-run and check all the parts before machine leaving our factory, to provide you the best goods.
Welcome to contact me for more information about the crusher
