Jaw crusher from Jiuchang Heavy Industry
Introduction of Jaw Crusher
PE Series Jaw crusher are used for the primary and secondary crushing of hard material. There are two types of crusher, including coarse jaw crusher and fine jaw crusher. Jaw crusher is especially used in mining and construction industries, it is especially fit to crush various stone and ores that compression strength less than 300Mpa , such as
Hard stone: granite,quartz stone, basalt, dolomite, basalt etc.
Hard ores: iron ore, copper ore, gold ore, phosphorus ore, silicon etc.
Soft stone and ores:coal, limestone,petroleum coke etc.
Advantages of Jaw Crusher
1 Less noise and dust.
2 High crushing ratio, improving production efficiency.
3 Simple structure, safe work, low operating cost.
4 Deep crushing chamber with no dead zone, improves the feeding size which leads to a high capacity.
5 Equipment energy-saving: save 15%-30% energy,save system energy more than twice.
6 Gasket discharge gate adjusting device makes it more convenient to use.
Jaw Crusher Working Principle
The working part of the jaw crusher is two pieces of jaw plate, one is fixed on the front wall of machine body, which is called fixed jaw, the other is swing jaw, which forming a crushing chamber with the fixed jaw, move back and forth periodically. When separating, the material enters into the crushing chamber and then the particle drops out from the bottom; when they get closer, the material is crushed by the compressive force, then the final product get out from the lower outlet.
Specification of jaw crusher from Jiuchang
| no. | model | inlet size(mm) | feed size(mm) | output size(mm) | production capacity(t/h) | motor power(kw) | dimension (mm) | weight(ton) |
| 1 | PE400x250 |
400x250 | <210 | 20-60 | 5-20 | 15 | 1450*1315*1296 | 2.8 |
| 2 | PE400x600 |
400x600 | <340 | 40-80 | 16-65 | 30 | 1565*1732*1586 | 5.5 |
| 3 | PE500x750 |
500x750 | <425 | 50-100 | 45-100 | 55 | 1890*1916*1870 | 10.2 |
| 4 | PE600x900 | 600x900 | <500 | 60-120 | 50-120 | 75 | 2305*1840*2298 | 16.5 |
| 5 | PE750x1060 | 750x1060 | <630 | 80-140 | 115-210 | 90 | 2730*2472*2800 | 29 |
| 6 | PE900x1200 | 900x1200 | <750 | 95-165 | 140-260 | 110 | 3335*3182*3025 | 50 |
| 7 | PE1200x1500 | 1200x1500 | <1100 | 110-200 | 300-800 | 160 | 4200*3300*3500 | 95 |
| 8 | PE1500x1800 | 1500x1800 | <1200 |
220-350 | 500-1000 | 315 | 5160*3660*4248 | 128 |
Note: all the specification is for your reference only, please contact us for the exact data.

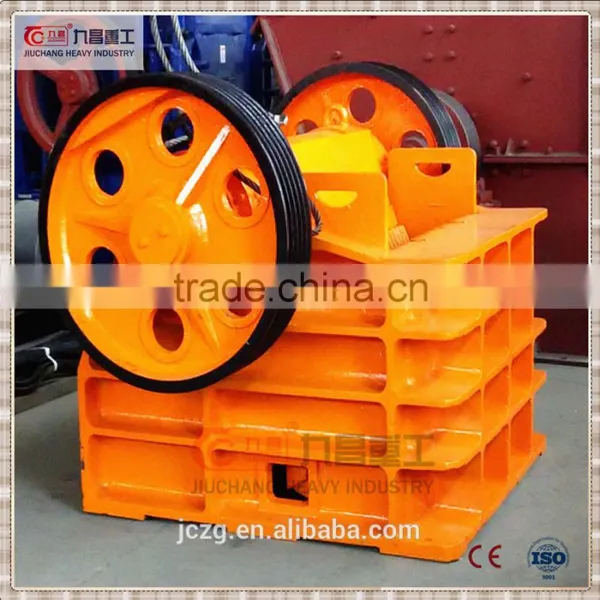

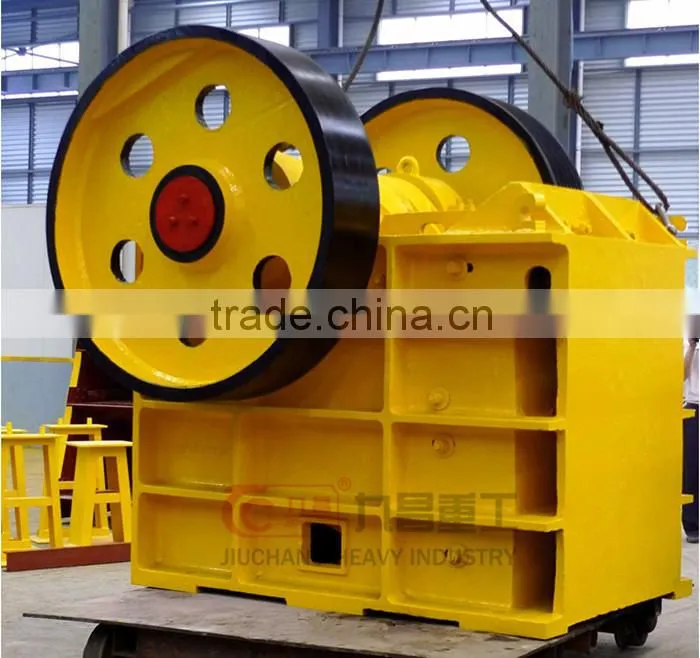

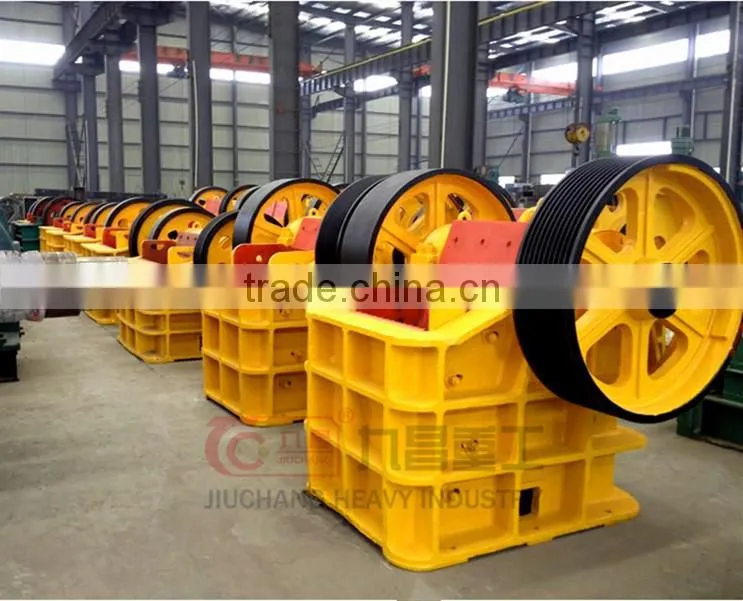

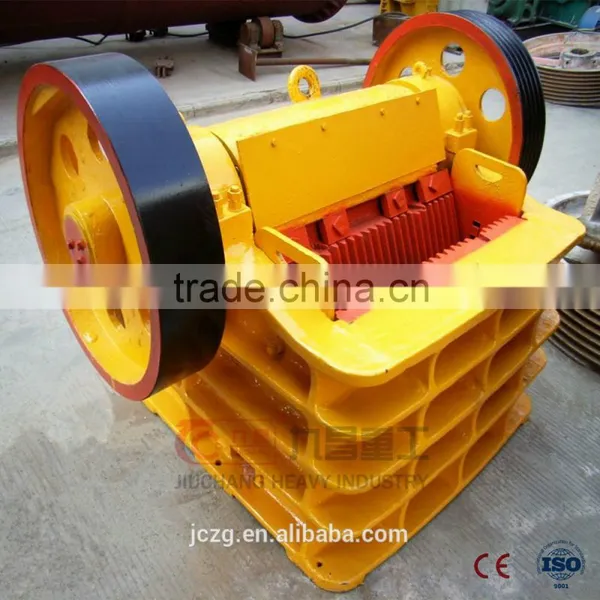

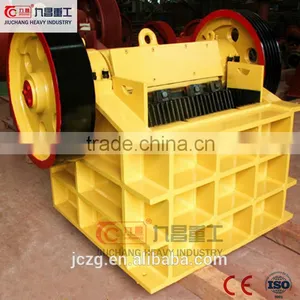

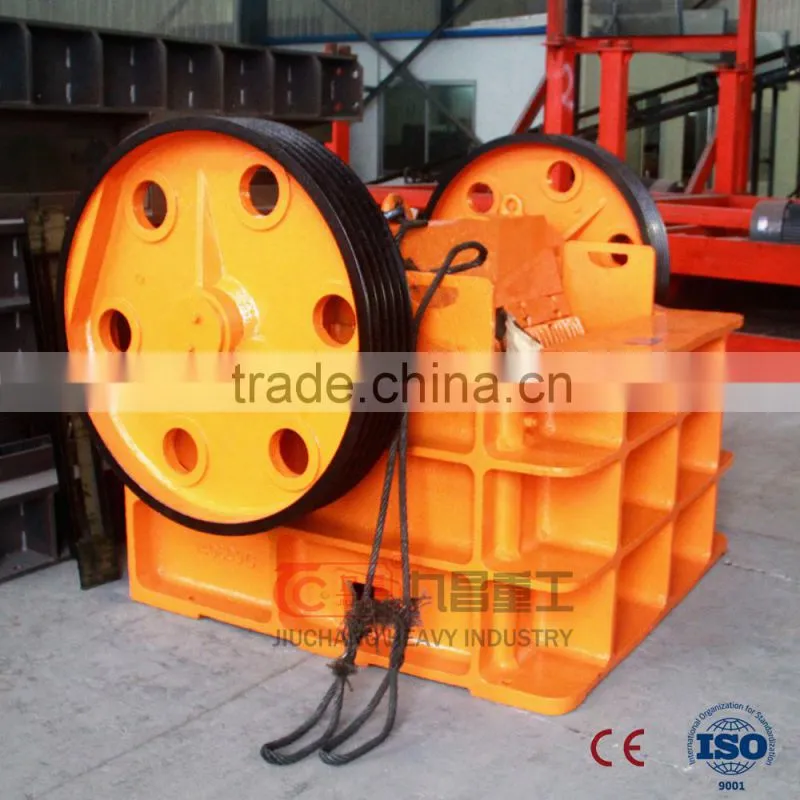

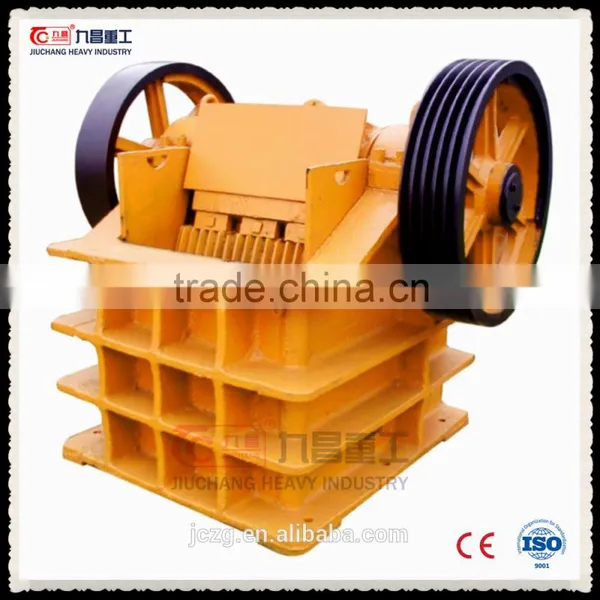

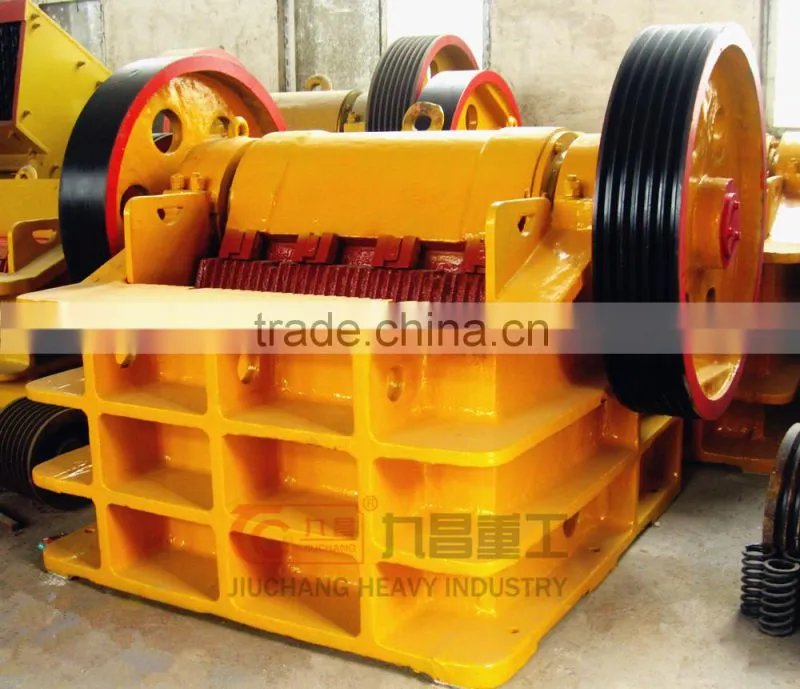

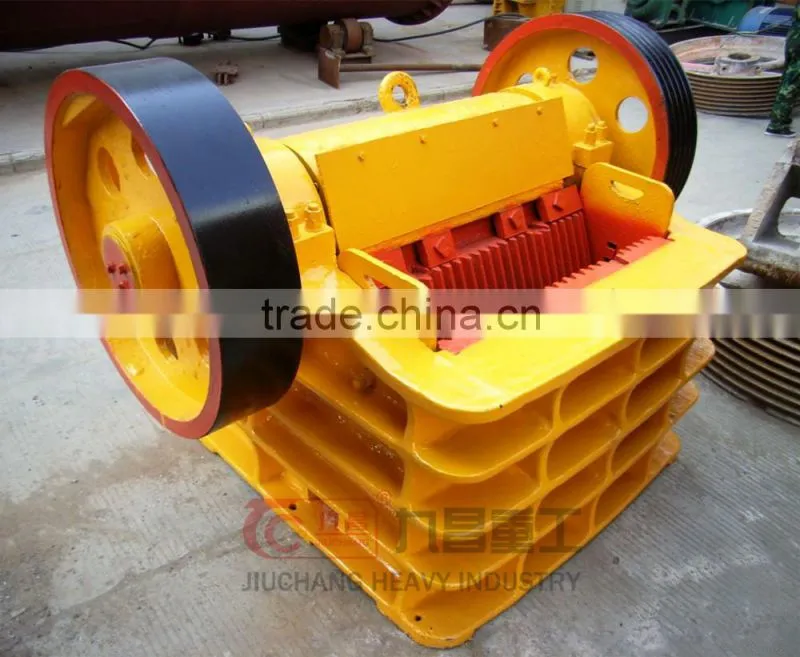

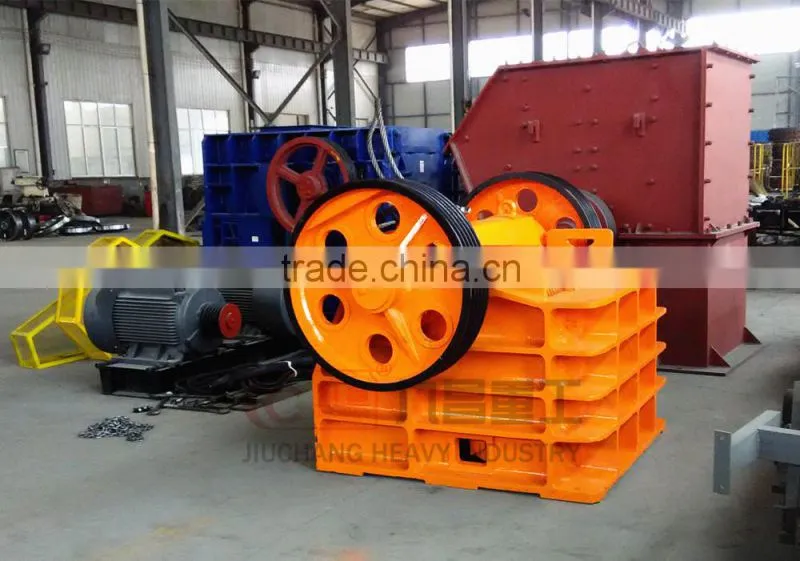

Actual picture of the jaw crsuher

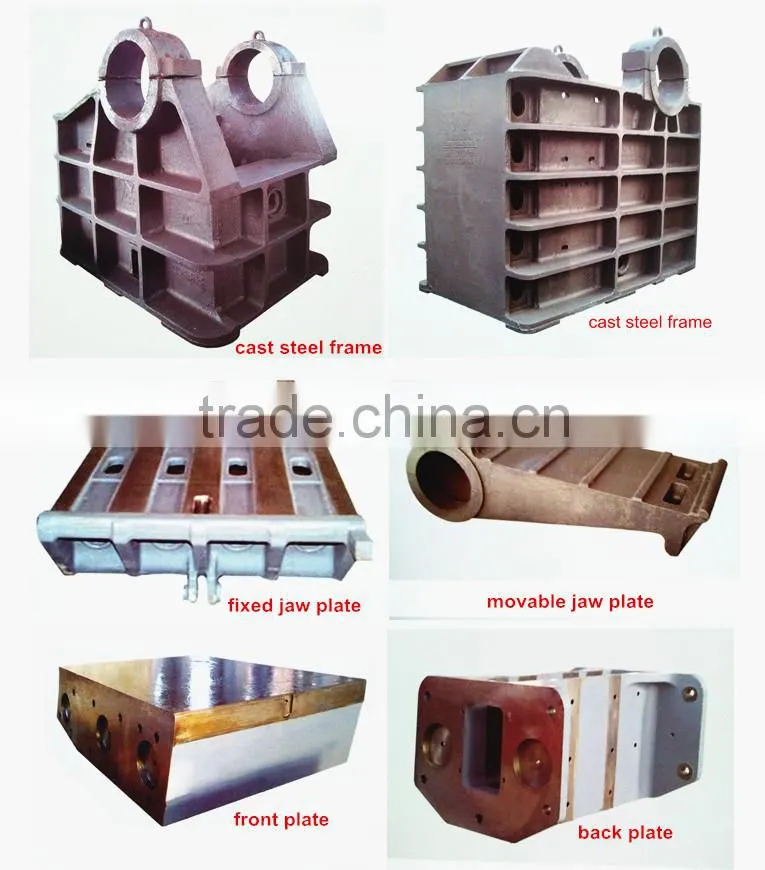

Key part of the jaw crusher

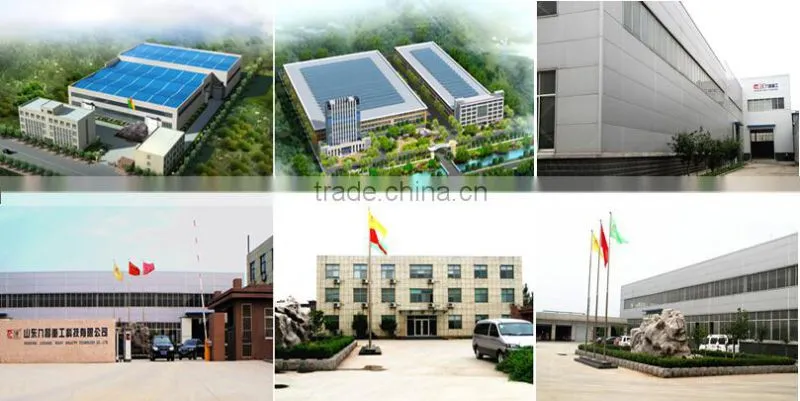

Shandong Jiuchang Heavy Industry Technology Co., Ltd. was established in 2008. We are a professional manufacturer and trading company of various type crushers for mining and construction in China. We have two factories located in Weifang city, Shandong province. The factory covers 140,000 square meter. Annual produce 5000 set of crushing machines to the world market. Our roller crusher is the top quality in China.
Jiuchang Heavy Industry has passed ISO9001:2008, all of our products with CE certificate.
By 2010, we are the TOP10 CRUSHER BRAND in China.
By 2011, our company was rated as HONEST AND TRUSTWORTHY ENTERPRISE by Shandong Provice.
Our key product is PG series roller crusher, PE series jaw crusher, PC series hammer crusher, PF series impact crusher, PGS shaft shredder, Cone crusher. We also specialize in mobile crushing plant, Construction waste crushing production line, Sand making production line. And also supply vibrating feeder, feeding bin, belt conveyor, vibrating screen, magnetic separator etc.
Products of Jiuchang have been sold to South Africa, Zimbabwe, Indonesia, Malaysia, Cyprus, Australia, South America, East Europe, Russia and so on, more than 20 countries.
We believe "Quality first, Customer first, Credibility first" . Always provide high quality machines, always provide customer-satisfied services. Jiuchang is always at your services.
Shandong Jiuchang Heavy Industry Technology Co., Ltd.
Address: 368 Quyang Road, Linqu Country, Weifang City, Shandong Provice, China.
Phone: 0086-536-2082685 Mr. Jack Wang
Qualification certificate
ISO9001 certificate CE certificate
What about the quality of your products ?
1- Company passed ISO9001:2008, all the product with CE certificate,
2- 7 years experience in manufacturing various crusher, very skillful at the machines,
3- Each worker in our factory is with strict professional training, only that passed the test can start working,
4- All products adopt famous brand parts, ensure high working performance,
5- Make test-run and check all the parts before machine leaving our factory, to provide you the best goods.
Can your machine surely meet our technical requirements ?
1- We design the machine as per your specification.
2- We make the production plan through strictly technical analysis and test,
3- We believe honesty and credibility the most important for an enterprise, so you can trust us.
If the machine works wrong, how does your company resolved ?
A: After receiving your request, We will arrange professional engineers to service you at first time.
Related maters:
1. MOQ: 1 set. 2. wanrranty: 12 months. 3. Provide the spare parts lifetime with best price.
Welcome to contact me for more information about the crusher.
