Pipe List Copper Pipe ,copper Pipe Insulation Air Condition

Dongguan Yidu Refrigeration Technology Co., Ltd.
Pipe List Copper Pipe ,copper Pipe Insulation Air Condition thumbnail-1
Pipe List Copper Pipe ,copper Pipe Insulation Air Condition thumbnail-2
Pipe List Copper Pipe ,copper Pipe Insulation Air Condition thumbnail-3
Pipe List Copper Pipe ,copper Pipe Insulation Air Condition photo-1
Pipe List Copper Pipe ,copper Pipe Insulation Air Condition photo-2
Pipe List Copper Pipe ,copper Pipe Insulation Air Condition photo-3
Negotiable MOQ: 1000 Sets (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Type:
Other, Air Conditioner Parts, Air Conditioning Fitting, insulated copper pipe
Application:
Other, Home, split air conditioner
Place of Origin:
Guangdong, China
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Other, Air Conditioner Parts, Air Conditioning Fitting, insulated copper pipe
Application Other, Home, split air conditioner
Place of Origin Guangdong, China
Brand Name YiDu
Model Number YD-YH-T-H



Product Description

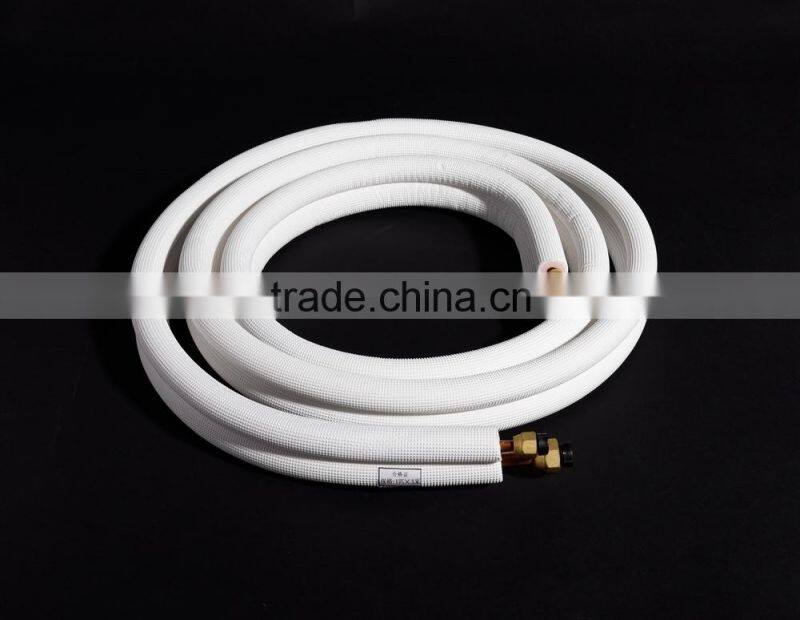

Insulated double pancake coil copper tube

The copper tube can be used in all plants for air conditioning and refrigeration and it is suitable for the use of refrigerating gas consistent with copper like R407 and R410A.

  Paremeter of double pancake coil copper tube



specificaton

Outer diameter of copper tube

Inside diameter of insulation tube

thickness

of insulation tube

1/4”+3/8”

6.35×0.5+9.52×0.5

Φ6.35+φ9.52

8mm/10mm/13mm

1/4”+1/2”

6.35×0.5+12.70×0.6

Φ6.35+φ12.7

8mm/10mm/13mm

1/4”+5/8”

6.35×0.5+15.88×0.75

Φ6.35+φ15.88

8mm/10mm/13mm

3/8”+5/8”

9.52×0.5+15.88×0.75

Φ9.52+φ15.88

8mm/10mm/13mm

3/8”+3/4”

9.52×0.5+19.05×0.8

Φ9.52+φ19.05

8mm/10mm/13mm

1/2”+3/4”

12.70×0.6+19.05×0.8

Φ12.7+φ19.05

8mm/10mm/13mm

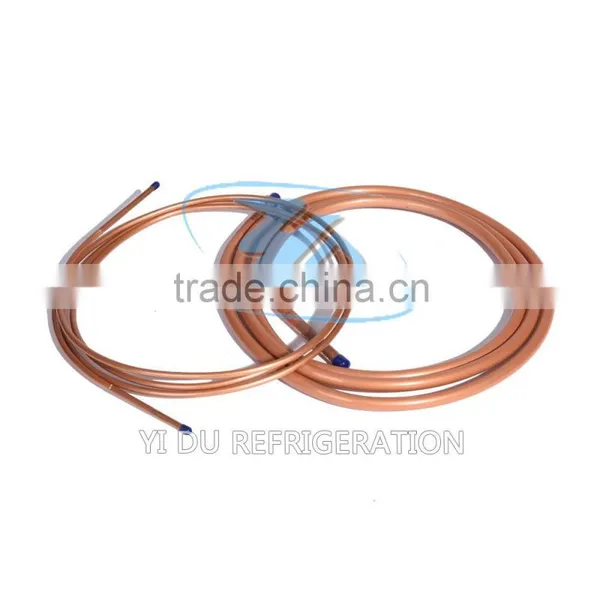

Insulated copper tube characteristics

Alloy:Copper Cu DHP 99.90 min.

Dimension and tolerances:according to the EN12735

Internal surface:smooth and mirror- like

Excellent resistance to corrosion

Suitable for the new gas R407C and R410A



ItemsTest methodResult
Airtightness property4.0MP A, 5 minNo leak
Presure resistance12MP A, 1 minNo crackle
BendabilityDiameter 180 degNo pleat and crackle

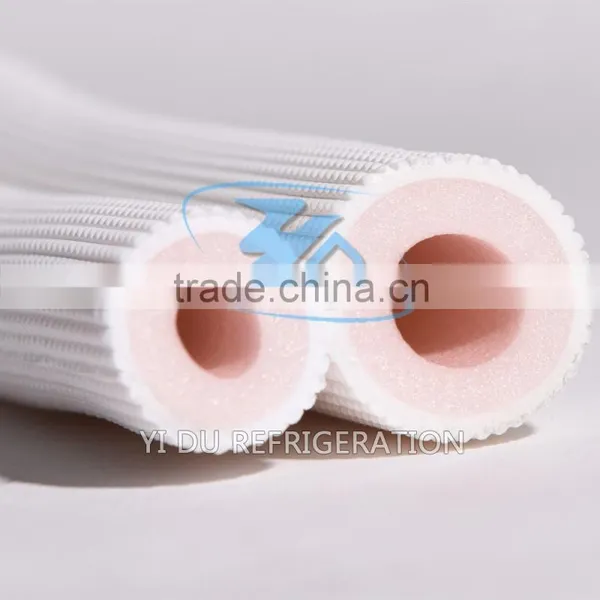

 Insulation tube

1.RoHS Certificate Approve

2.Working Temperature from -400C until +1200C

3.Vapor Resistance: μ>5000

4.Inside diameter:1/4-3/4

6.Inside diameter and thickness of insulation tibe can order according to the demand of customer

Packaging & Shipping

Packaging

plastic bags/corrugated cases/customers demands

 Shipping

7working days after payment

Advantages
why choose YIDu
Top technology .First class cutting machine would not hurt pipes, avoiding narrowing size, leakage or water drop.
No slag.100% no copper.
OEM service. the length and wall thickness of air conditioning pipe or insulation pipe can be customized.
No occlusion.Excellent welder with gas bar, makes sure the inside of pipe completely empty, no occlusion, meanwhile keep original size.

 pipe list copper pipe ,copper pipe insulation air condition


 pipe list copper pipe ,copper pipe insulation air condition

 pipe list copper pipe ,copper pipe insulation air condition



Our Services



Customerized services. The length of pipe, brass rods and wall thickness of  double coil air conditioner copper pipe  can be customized.

  Quick response. Quotation for double coil air conditioner copper pipe will be provided within 48 hrs.

  Free sample. Single coil air conditioner copper pipe can be available.

 Excellent after sale service. Professional engineer with six year experience to solve your problem regarding air conditioner copper pipe.

 100% compensation if any quality problem.

Company Information

  Dongguang YiDu Refrigeration Technology Co.,Ltd was established in 2009, specializing in the RD and manufacture of refrigeration accessories,especially the cooper/aluminum connecting pipe for air conditioner. Product arrange includes the central air-conditioner heat preservation copper tube, air-conditioning aluminum tube, air-conditioner coating tube. Due to innovative improve technology, YiDu can ensures 4 mian advantages compared with other competitors.  For six years,YiDu has already built a well-earned reputation for producing the finest products with reasonable cost. Manufacture capacity can reach 4k-6k sets daily. Products have been exported to Europe, America, Japan, Middle East, Southeast Asia,and so on. Welcome to contact our sales for quotation
