Covered Pvc Aluminum Copper Pipe

Dongguan Yidu Refrigeration Technology Co., Ltd.
Covered Pvc Aluminum Copper Pipe thumbnail-1
Covered Pvc Aluminum Copper Pipe thumbnail-2
Covered Pvc Aluminum Copper Pipe thumbnail-3
Covered Pvc Aluminum Copper Pipe photo-1
Covered Pvc Aluminum Copper Pipe photo-2
Covered Pvc Aluminum Copper Pipe photo-3
Negotiable MOQ: 1000 Sets (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Type:
Other, Air Conditioner Parts, Air Conditioning Fitting, insulated copper pipe
Application:
Other, Home, split air conditioner
Place of Origin:
Guangdong, China
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Other, Air Conditioner Parts, Air Conditioning Fitting, insulated copper pipe
Application Other, Home, split air conditioner
Place of Origin Guangdong, China
Brand Name YiDu
Model Number YD-YH-T-H

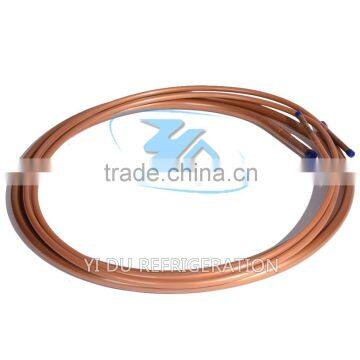

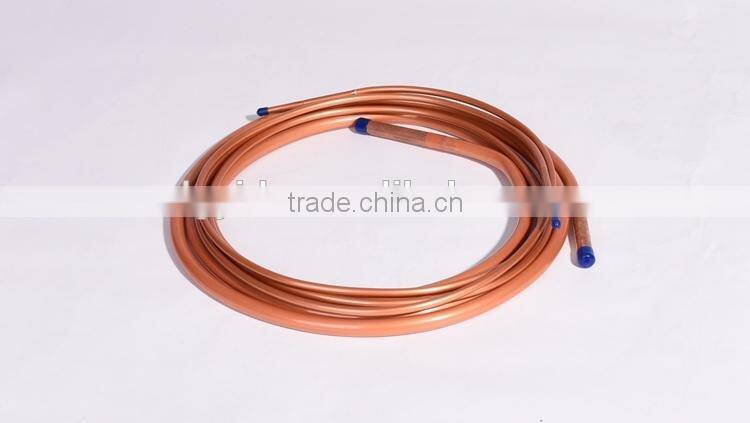

Insulated double pancake coil copper-aluminum tube with nuts



Materials:aluminun pipe and two ends are copper pipe.
Used for air conditioner installation to connect indoor and outdoor air conditioner.The copper tube inside is compatible for R410a,R407c,R404a,R507and R22 refrigerants.



Parameter of insulated double pancake coil copper-aluminum pipe





specificaton

Outer diameter of short copper tube

Inside diameter of aluminum tube

 the length of short copper tube

1/4”+3/8”

6.35×0.6+9.52×0.6

Φ6.35*0.7+φ9.52*0.7

 90mm/150mm

1/4”+1/2”

6.35×0.6+12.70×0.6

Φ6.35*0.75+φ12.7*0.8

  90mm/150mm

1/4”+5/8”

6.35×0.6+15.88×0.7

Φ6.35*0.7+φ15.88*0.9

  90mm/150mm

3/8”+5/8”

9.52×0.6+15.88×0.7

Φ9.52*0.7+φ15.88*0.9

  90mm/150mm

3/8”+3/4”

9.52×0.6+19.05×0.8

Φ9.52*+φ19.05*1.2

  90mm/150mm

1/2”+3/4”

12.70×0.6+19.05×0.8

Φ12.7*0.8+φ19.05*1.2

  90mm/150mm



Insulated double pancake coil copper-aluminum pipe characteristics



Alloy:Alloy



Dimension and tolerances:according to the EN12735



Internal surface:smooth and mirror- like



Excellent resistance to corrosion



Suitable for the new gas R407C and R410A



Length:3m~15m(including the length of the short copper tube)



 PE heat-shrikable tube to prevent oxidation, extend the life of the aluminum tube





ItemsTest methodResult
Airtightness property4.0MP A, 5 minNo leak
Presure resistance12MP A, 1 minNo crackle
BendabilityDiameter 180 degNo pleat and crackle






Packaging & Shipping

Packaging

plastic bags/corrugated cases/customers demands

 Shipping

7working days after payment

Advantages
why choose YIDu
Top technology .First class cutting machine would not hurt pipes, avoiding narrowing size, leakage or water drop.
No slag.100% no copper /aluminum slag.
OEM service. The length and wall thickness of air conditioning pipe or insulation pipe can be customized.
 No occlusion.Excellent welder with gas bar, makes sure the inside of pipe completely empty, no occlusion, meanwhile keep original size

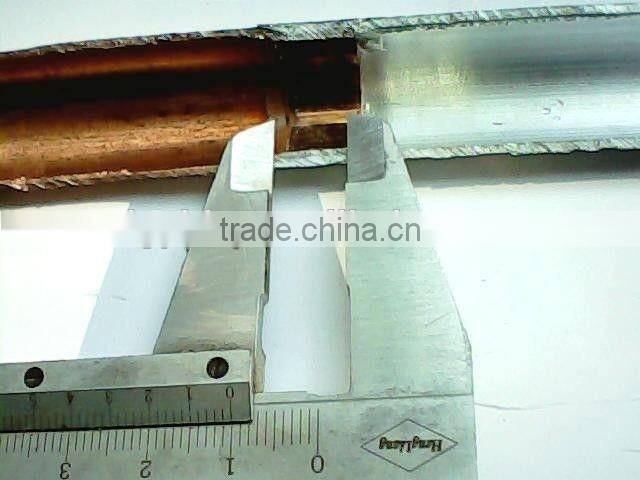

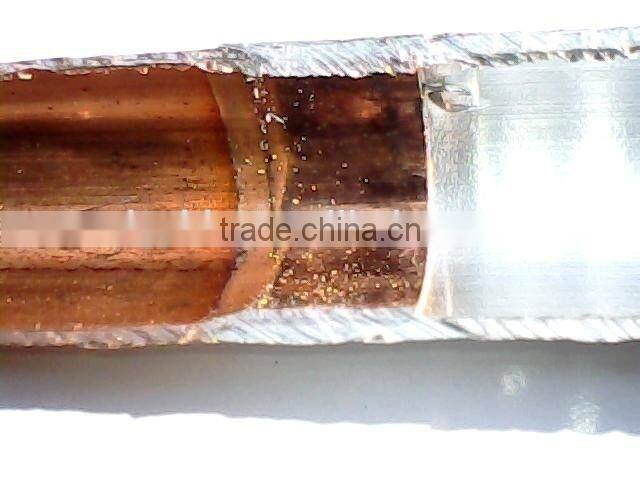

Covered pvc aluminum copper pipeCovered pvc aluminum copper pipe

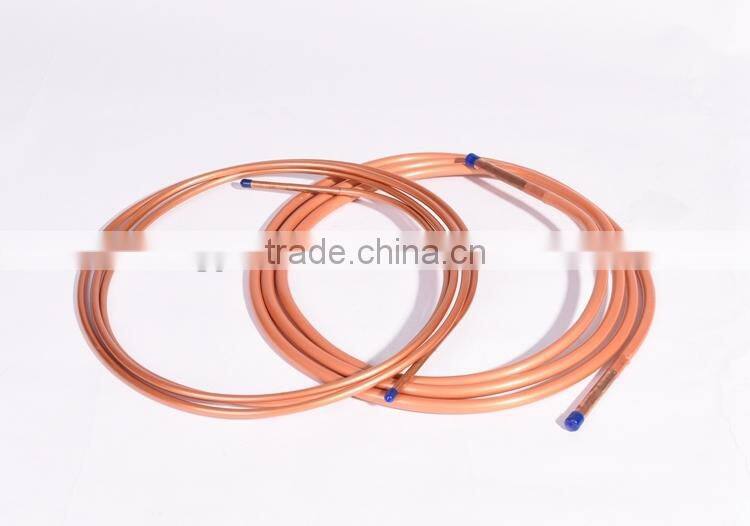

Covered pvc aluminum copper pipeCovered pvc aluminum copper pipe





Our Services



Customerized services.In compliance with the specific customer’s requirements ,pipes can beproduce according to different standardized regulations or with different diameters,wall thicknesses and length,once the technical feasibility has been verified.

Quick response. Quotation for double coil air conditioner copper pipe will be provided within 48 hrs.

Free sample. Single coil air conditioner copper pipe can be available.

Excellent after sale service. Professional engineer with six year experience to solve your problem regarding air conditioner copper pipe.

100% compensation if any quality problem.



Company Information

  Dongguang YiDu Refrigeration Technology Co.,Ltd was established in 2009, specializing in the RD and manufacture of refrigeration accessories,especially the cooper/aluminum connecting pipe for air conditioner. Product arrange includes the central air-conditioner heat preservation copper tube, air-conditioning aluminum tube, air-conditioner coating tube. Due to innovative improve technology, YiDu can ensures 4 mian advantages compared with other competitors. For six years,YiDu has already built a well-earned reputation for producing the finest products with reasonable cost. Manufacture capacity can reach 4k-6k sets daily. Products have been exported to Europe, America, Japan, Middle East, Southeast Asia,and so on. Welcome to contact our sales for quotation
