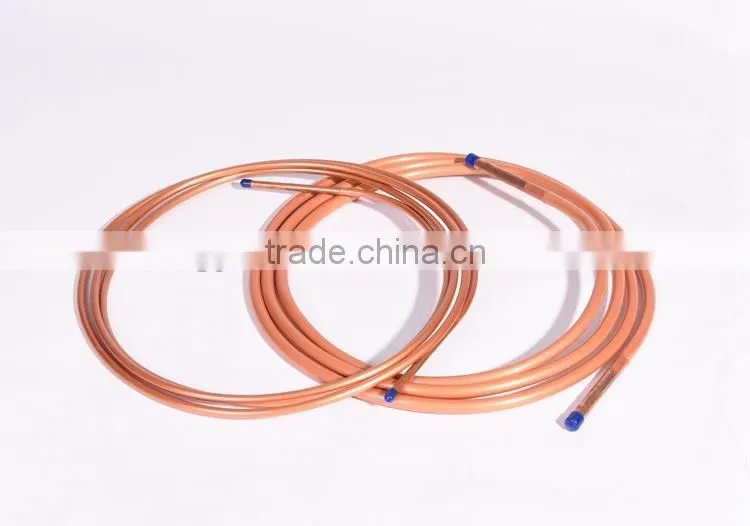

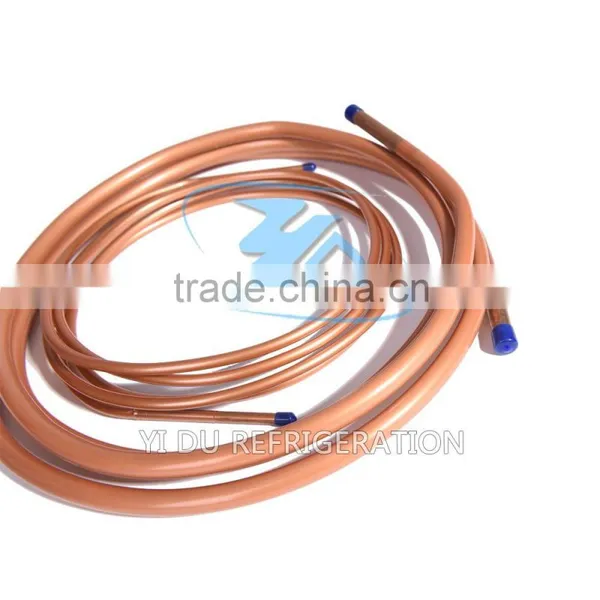

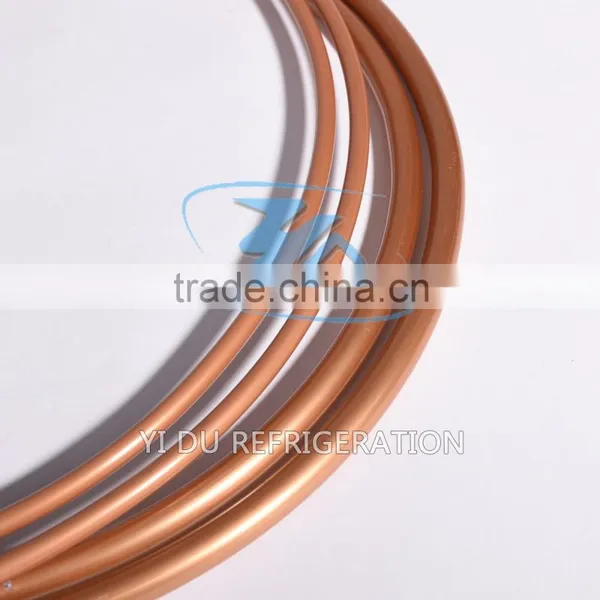

pancake coil copper aluminum tube
Materials:aluminun pipe and two ends are copper pipe.
Used for air conditioner installation to connect indoor and outdoor air conditioner.The copper tube inside is compatible for R410a,R407c,R404a,R507and R22 refrigerants.cross linked irrdiated .
parameter of copper aluminum pipe for air conditioner
specificaton |
Outer diameter of copper end |
Inside diameter of aluminum tube |
the length of copper end |
1/4”+3/8” |
6.35×0.6+9.52×0.6 |
Φ6.35*0.7+φ9.52*0.7 |
90mm/150mm |
1/4”+1/2” |
6.35×0.6+12.70×0.6 |
Φ6.35*0.75+φ12.7*0.8 |
90mm/150mm |
1/4”+5/8” |
6.35×0.6+15.88×0.7 |
Φ6.35*0.7+φ15.88*0.9 |
90mm/150mm |
3/8”+5/8” |
9.52×0.6+15.88×0.7 |
Φ9.52*0.7+φ15.88*0.9
|
90mm/150mm |
3/8”+3/4” |
9.52×0.6+19.05×0.8 |
Φ9.52*+φ19.05*1.2 |
90mm/150mm |
1/2”+3/4” |
12.70×0.6+19.05×0.8 |
Φ12.7*0.8+φ19.05*1.2 |
90mm/150mm |
Copper aluminum connecting tube characteristics
Alloy:Alloy
Dimension and tolerances:according to the EN12735
Internal surface:smooth and mirror- like
Excellent resistance to corrosion
Suitable for the new gas R407C and R410A
Length:3m~15m(including the length of the short copper tube)

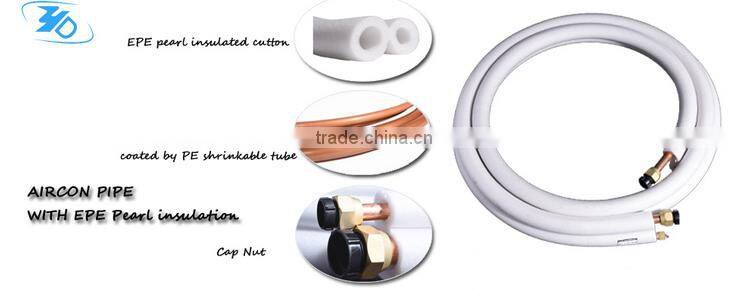

PVC heat-shrikable tube to prevent oxidation, extend the life of the aluminum tube
| Items | Test method | Result |
| Airtightness property | 4.0MP A, 5 min | No leak |
| Presure resistance | 12MP A, 1 min | No crackle |
| Bendability | Diameter 180 deg | No pleat and crackle |
Packaging
plastic bags/corrugated cases/customers demands
Shipping
7working days after payment
Customerized services. The length of pipe, brass rods and wall thickness of double coil air conditioner copper pipe can be customized.
Quick response. Quotation for double coil air conditioner copper pipe will be provided within 48 hrs.
Free sample. Single coil air conditioner copper pipe can be available.
Excellent after sale service. Professional engineer with six year experience to solve your problem regarding air conditioner copper pipe.
100% compensation if any quality problem.

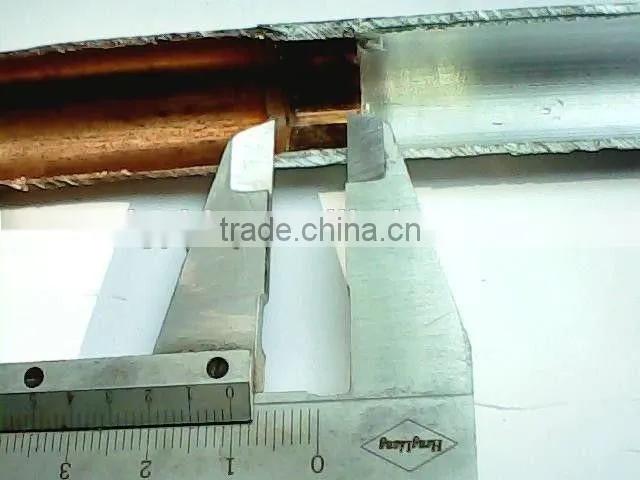

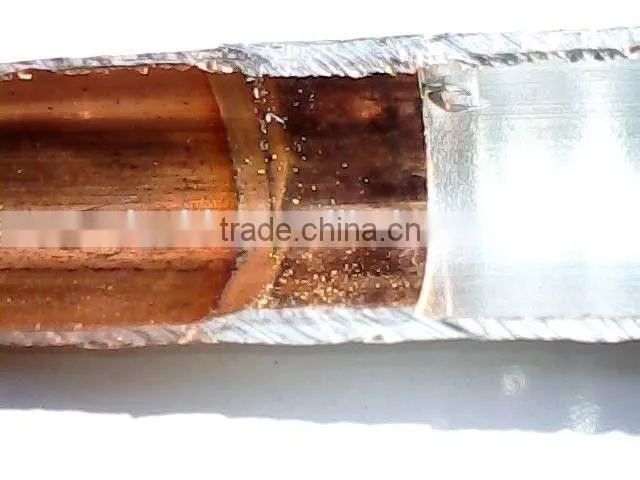

Dongguang YiDu Refrigeration Technology Co.,Ltd was established in 2009, specializing in the RD and manufacture of refrigeration accessories,especially the cooper/aluminum connecting pipe for air conditioner. Product arrange includes the central air-conditioner heat preservation copper tube, air-conditioning aluminum tube, air-conditioner coating tube. Due to innovative improve technology, YiDu can ensures 4 mian advantages compared with other competitors. A First class cutting machine would not hurt pipes, avoiding narrowing size, leakage or water drop. B Excellent welder with gas bar, makes sure the inside of pipe completely empty, no occlusion, meanwhile keep original size. C 100% no aluminum slag. D OEM service, the length and wall thickness of airconditioning pipe or insulation pipe can be customized. For six years,YiDu has already built a well-earned reputation for producing the finest products with reasonable cost. Manufacture capacity can reach 4k-6k sets daily. Products have been exported to Europe, America, Japan, Middle East, Southeast Asia,and so on. Welcome to contact our sales for quotation
