Specifications
High quality nonwoven slitting machine:1. Magnetic powder
2. Manual tension
3. Slitting spe

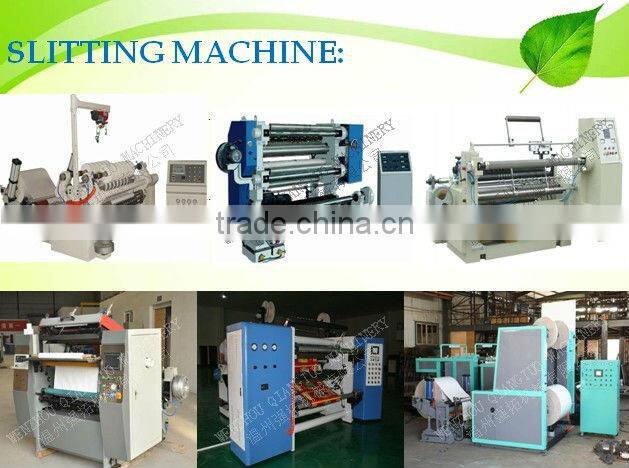

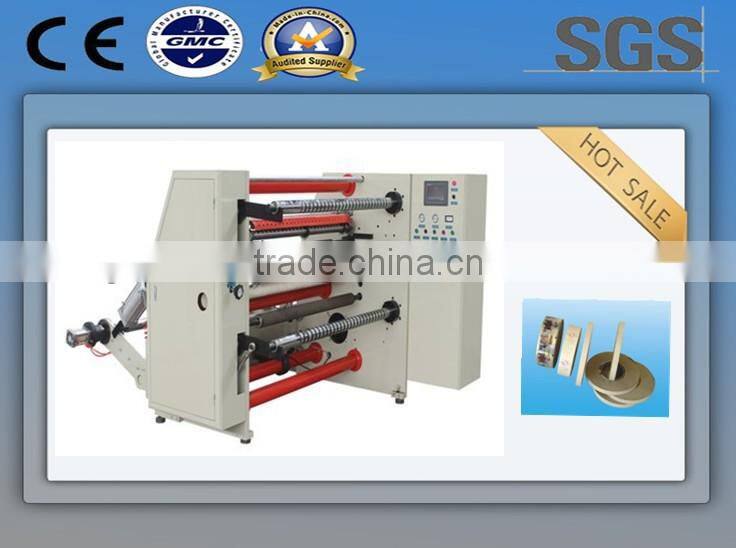

High quality nonwoven slitting machine
Applications:
This machine is suitable for slitting and cutting such various roll materials as BOPP, PET, CPP, CPE, PVC, aluminum foil and paper, etc. And can cut edge, separate cut according to different requirements during production.
Performances And Features:
1. The machine is a kind of vertical slitting machines, unwinding and rewinding can be in front of or at the back of the machine.
2. Independent master control screen, more flexible and even easier for operation.
3. Automatic deviation-rectifying of unwinding, photoelectric eye is suitable for tracking the edge and color of transparent material.
4. Unwinding tension adopts magnetic powder brake control.
5. Rewinding adopts magnetic powder clutch control.
6. Automatic slitter edge blowing-inhaling device.
7. Automatic meter counting for length of running material.
Main Technical Parameters:
Model |
LFQ-A1100 |
Max. width of unwinding |
1000mm |
Max. diameter of unwinding |
600mm |
Width of slitting |
20-1000mm |
Speed |
120-160m/min |
Deviation-rectifying Error |
±0.5mm |
Total power |
4kw |
Weight (approx.) |
1800kg |
Overall dimension (L×W×H ) |
1100×2600×1400mm |
