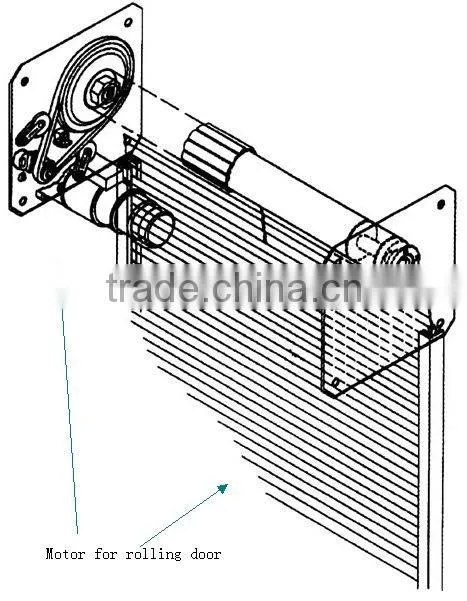

This kind of motor is suitable for driving fire proof rolling shutter. Connected to a fire proof control panel, the motor is able to start the fire proof door when the sensor is triggered by smoke or temperature. In emergence condition, the motor can be manually operated, to stat the door.
Main Features
1.fireproof
2.Connected to a fire control box,the motor can start the door automatically when it senses smoke or high temperature or when it receives a warning from the Fire Alarm Centre
3.can be operated by electricity automatically and manually by the release chain in case power cuts
Main Technical Parameter
| Spec. | FJJ210-3P | FJJ420-3P | FJJ650-3P | FJJ820-3P | FJJ1650-3P |
| Power(W) | 200 | 400 | 450 | 470 | 500 |
| Rated Voltage(v) | 380v 50Hz | ||||
| Rated Current(A) | 1.2 | 1.4 | 2 | 2.2 | 2.5 |
| Output Torque(N.m) | 210 | 420 | 650 | 820 | 1650 |
| Reel Diameter(mm) | 114 | 140 | 165 | 219 | |
| Output Rev.(r/min) | 8.3 | 5 | 3.9 | 3 | |
| Max.Lifting Weight(kg) | 300 | 600 | 800 | 1000 | 1500 |
| Max.Lifting Height(m) | 6.5 | ||||
| Chain Spec | 10A | 12A | |||
Remarks:1.Disadvantage: Price is not lowest.
Advantage: We are famous for rolling door motor in China. We ensure the quality(100%testing).Welcome your visiting, which is only 1.5hours driving to Shanghai.
2.Pls don't hesitate to contact us if you have any questions.
3.We can improve it as your designs without a large difference.
- Digital remote controller for motor of shutter door
- Tube type motor
- Nomal roller motor
- Anti-chain breaking device
- Sliding door motor
Additional Accessaries:(they are without in above quote, be ordered according demand)
Mainly used in
FOB/CIF price or EWORKS price
Whether to provide samples:not free,but revert after bulk order
Which port:Shanghai,Wuxi
Support what payment methods: before production after payment 50%,the other payment 50% before shipment
24 months after sale
