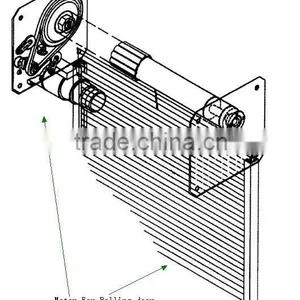

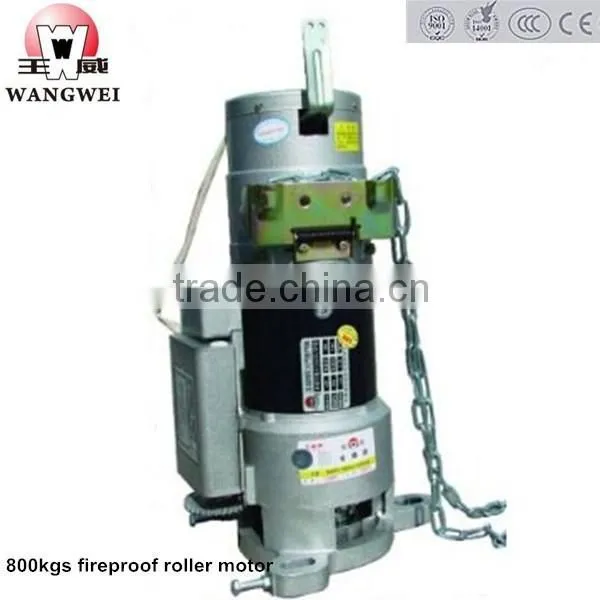

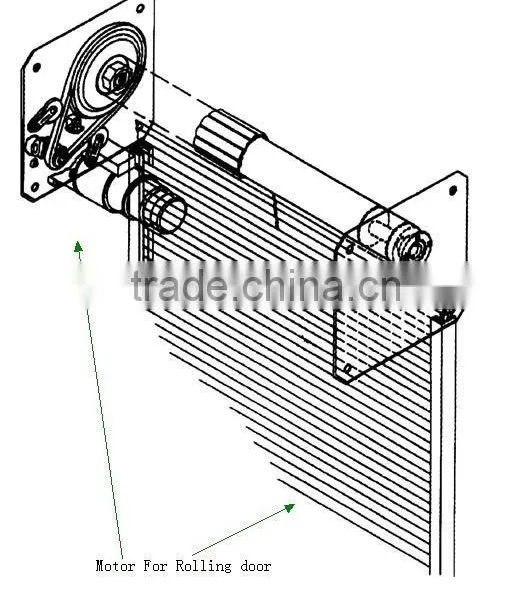

This kind of motor is suitable for driving fire proof rolling shutter. Connected to a fire proof control panel, the motor is able to start the fire proof door when the sensor is triggered by smoke or temperature. In emergence condition, the motor can be manually operated, to stat the door.
Main Features
1.fireproof

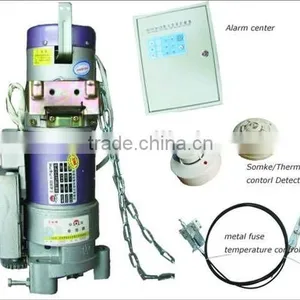

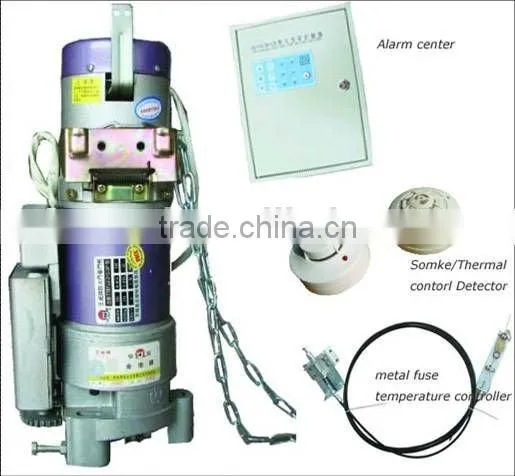

2.Connected to a fire control box,the motor can start the door automatically when it senses smoke or high temperature or when it receives a warning from the Fire Alarm Centre
3.can be operated by electricity automatically and manually by the release chain in case power cuts
Main Technical Parameter
| Ordinary door roll door models | Motor Power (W) |
Rated voltage (V) |
Rated current (A) |
Output torque (N·m) |
Reel diameter (φmm) |
Output Speed (r/min) |
Maximum lifting capacity (kg) |
Maximum lift height (m) |
No. use of chain |
| FJJ210-3P | 200 | 380v50Hz | 1.2 | 210 | 114 | 8.3 | 300 | 6.5 | 10A |
| FJJ420-3P | 400 | 1.4 | 420 | 140 | 5 | 600 | |||
| FJJ650-3P | 450 | 2 | 650 | 165 | 3.9 | 800 | |||
| FJJ820-3P | 470 | 2.2 | 820 | 1000 | 12A | ||||
| FJJ1650-3P | 500 | 2.5 | 1650 | 219 | 3 | 1500 | 16A |
Remarks:1.Disadvantage: Price is not lowest.
Advantage: We are famous for rolling door motor in China. We ensure the quality(100%testing).Welcome your visiting, which is only 1.5hours driving to Shanghai.
2.Pls don't hesitate to contact us if you have any questions.
3.We can improve it as your designs without a large difference.
Additional Accessaries:(they are without in above quote)
FOB/CIF price or EXWORKS price
Whether to provide samples:not free,but revert after bulk order
Which port:Shanghai,Wuxi
Support what payment methods: before production after payment 50%,the other payment 50% before shipment
24 months after sale
