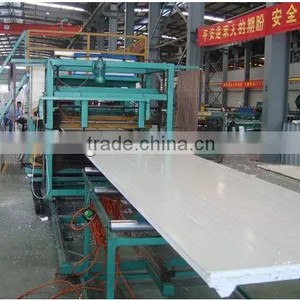

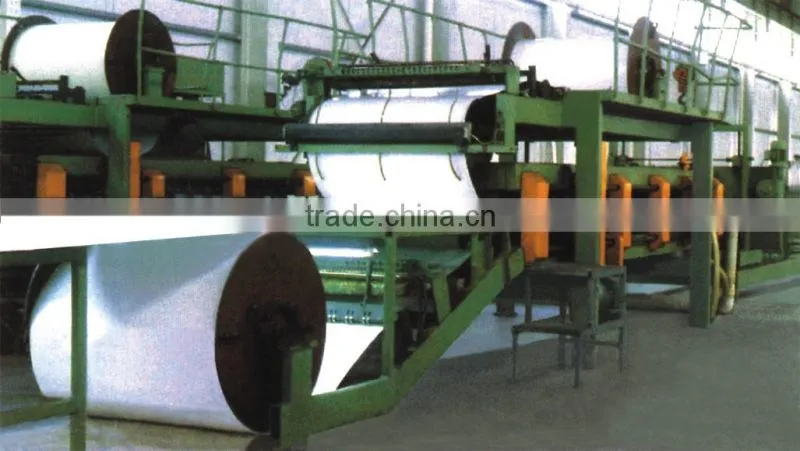

Sandwich Panel Forming Machine / used Eps Sandwich Panel Production Line
US$ 25,000 - 35,000
/ Set
1 Set(Min. Order)
- Shanghai or Ningbo
- T/T
You May Like
-
Hydraulic Pendulum steel Plate Shearers Machine
-
decking machine/Decking roll forming machine/deck steel floor
-
Decking roll forming machine/deck steel floor tile 51-240-720
-
Decking roll forming machine/deck steel floor 55-278-832
-
Deching machine/Decking roll forming machine/deck steel floor 51-190-760
-
Decking roll forming machine/deck steel floor 87-295-858
Product Details
| Condition | New | Type | Other, sandwich panel machine steel sheet | |
| Tile Type | Glazed Steel | Use | Roof | |
| Production Capacity | 1-5Meters/Min | Place of Origin | Zhejiang, China | |
| Brand Name | WILLING | Model Number | as customer's requirment | |
| Power(W) | 42KW | Voltage | as the client request | |
| Dimension(L*W*H) | 40M X 2M X 5 M | Weight | 20TON | |
| Certification | CE | Warranty | 1year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
We can design different kinds of profile for downpipe machine.EPS sandwich panel production line
1. Technical Parameters
| Sandwich panel specification | ||
| 1 | length | cutting length≥2 m |

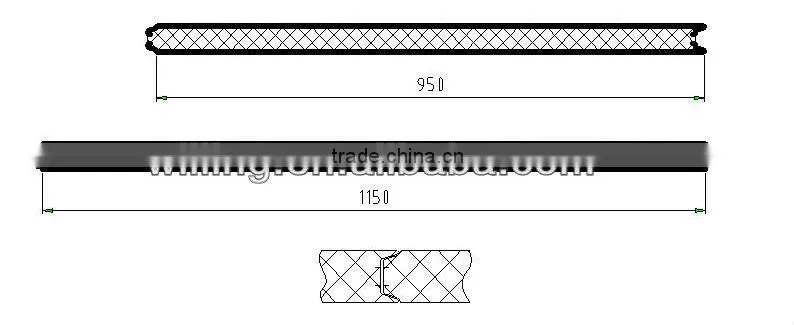

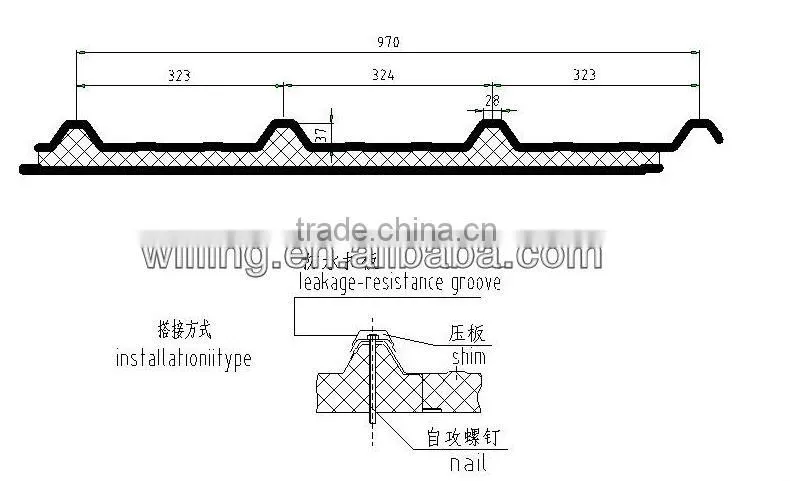

| 2 | width | (see profile drawing) |
| 3 | thickness | (see profile drawing) |
| raw material specification | ||
| 1 | coil thickness | 0.4~0.6 mm (steel be flat without ups and downs,deformation and bending) |
| 2 | coil stress | ≤235MPa |
| 3 | coil max width | 1200 mm (tolerance±2mm) |
| 4 | coil max weight | 5t |
| 5 | coil ID | 500 and 600 mm |
| 6 | coil OD | 1000 mm |
| 7 | EPS material | density is≥18kg/m3,unstraight of each side ≤mm/m,,curve ≤mm/m,surface be even,ineveness smaller than 1.mm/m,EPS material single piece length more than ≥3m. |
| 8 | Rockwool material | length more than 100mm,vertical lined,density ≥100kg/m3 ,single piece length more than ≥3m |
| 9 | Material suitable shape | see profile drawing.(prepared by customer and according to the ) |
| 10 | Material suitable width | minimum shall be 1/2mm of the finished panel width. |
| Machine line specification | ||
| 1 | Work line speed | 1000-3000mm/min (frequency speed adjustment).attention:depend on glue brand, temperature and proficiency of operators. |
| 2 | Machine length | about 40 m |
| 3 | Working height | 1050 mm(panel output height) |
| 4 | Laminating effective length | 7.5 m |
| 5 | Control way | adopt industrial computer PLC |
| 6 | Total power | about 40 kw |
| 7 | power | 380V/3phase/50 Hz |
| 8 | control voltage | 24 V/110 V/220 V |
| 9 | pneumatic | 0.7 Mpa (self prepared by factory) |
| 10 | best working temperature | around 25°C |
2. Component
1) roll foming machine | |
| A) | Hydraulic uncoiler |
| B) | Guide device |
| C) | Filming system |
| D) | Flat sheet slitting system |
| E) | Roll forming system |
| F) | Panel support frame |
| G) | Assistant forming system |
| 2) Laminating body | |
| A) | Guiding device |
| B) | Inside material feeding device |
| C) | Laminating |
| D) | Film covering device |
| E) | Cutting device |
| F) | Glue supplying system |
| G) | Gelatinizing device |
| H) | Core material groove making system |
| I) | Dusting device |
| J) | Electrical controller |
Machine Loading
Because of the long trip and your super trust, we will make sure Purlin roll forming machine can be
appeared in front of you in fully good condition, you will fall in love with it with first glimpse!
The competitive advantage of product line:
We mainly export to South America, Eastern Europe, Southeast Asia, Africa, Mid East, Central America and South Asia. They can be manufactured according to clients' requirements.
