Specifications
The corrugated profile sheet produced by this machine has high strength with big rib, which adheres well to concrete.Packaging & Delivery
| Packaging Detail: | Rollfoming lines: 1. rollers are put on anti-rust oil and packed by bubble wraps; some other electric parts are packed by bubble wraps as well; 2. the oil hose and electric wires ae marked, and easy to be connected when used; 3. in container loading, sea-worthy, well fixed by wire rope, wooden block and nails. |
| Delivery Detail: | 90 days |
Specifications

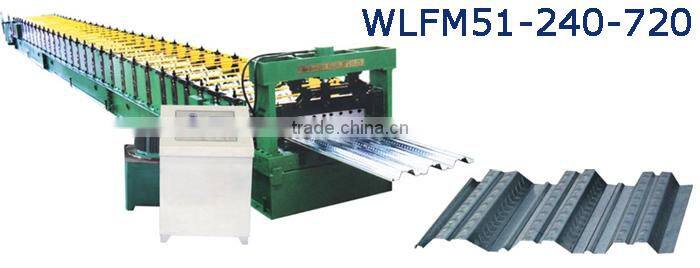

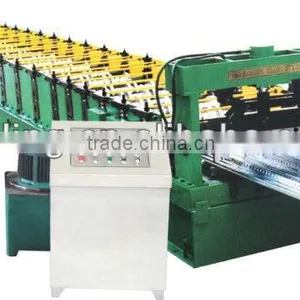

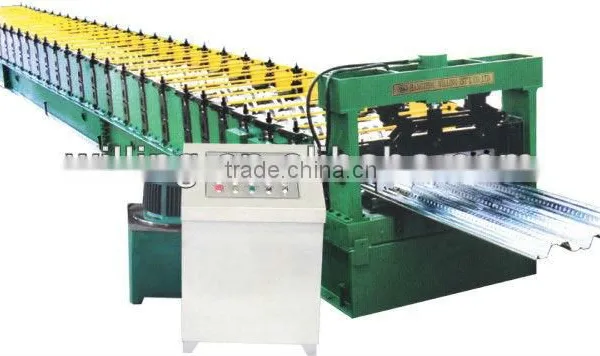

deck flooring roll forming machine
1.simple structure and beautiful outlook
2.good service
3.high efficiency high quality
Quick Details
- Condition: New
- Production Capacity: 10-12m/min
- Place of Origin: Zhejiang, China (Mainland)
- Brand Name: Willing
- Model Number: WLFM76-305-915
- Power(W): 10-12m/min
- Certification: CE and ISO9001:2008
- Warranty: 1 years
- After-sales Service Provided : Engineers available to service machinery
- Main motor power: 27500KW
Technical parameters: |
|
Material type |
galvanized steel sheet |
Material thickness (mm) |
0.8 - 1.2 mm |
Material yield stress (Mpa) |
230~300 |
Max. forming speed (m/min) |
8-12 |
Roll material |
Steel with chrome treatment |
Roller driven type |
Chain transmission |
Controller & operation |
PLC& touch screen and button |
Hydraulic system pressure (Mpa) |
12 |
Hydraulic station motor power (KW) |
5.5 |
Main motor power (KW) |
22~30 |
Total power (KW) |
27.5-35.5 |
Total weight (Kg) |
About 18000 |
Quantity of stands |
about: 24 groups |
Index error of length |
10m±2mm |
Voltage |
380V 3 phase 60Hz or at buyer's requirement |
Working Flow
Uncoiling the sheet Sheet guiding Straightening Pre-punching
Pre-cutting Roll forming Rectifying Panels to the supporter
