Specifications
We can design different kinds of profile and fitting for roof roll Forming machine, as per customers' requireSpecifications
roll forming machines
1.We are specialied in making forming machine.
2.we can design all kinds of pattern.
Specifications:
Model |
|||
Material |
Typle |
Pre-painted steel sheet |
|
Thickness(mm) |
0.2-0.7 |
||
Yield stress(Mpa) |
230-550 |
||
Max. Forming speed(m/min) |
8-12 |
||
Roller material |
45# steel with chrome treatment |
||
Roller driven type |
Chain transmission |
||
Controller |
PLC |
||
Operation |
Touch screen and button |
||
Hydraulic system pressure(Mpa) |
12 |
||
Hydraulic station motor power(KW) |
3 |
||
Main motor power(KW) |
5.5 |
||
Total power(KW) |
8.5 |
||
Total weight(Kg) |
About 8000 |
||
Working Flow:
Decoiling the Sheet→Sheet Guiding→Film Covering→Roll Forming→Measure Lengh → Cutting the Panel→Panels to the Supporter
We do you like,Optional components
1) Coil Feeding Equipment: Consists of one uncoiler with capacity of 3000kgs and its base. The steel sheet is
manually fed to the guiding equipment under the function of friction and traction.
2) Guiding Equipment : Adopting guiding bar and sliding block to control the width and position of the steel sheet. The coil is guided in the correct position and passed to the roll forming equipment
.
3) Mainframe Transmission :Transfer the main motor power to the rollers through chains and sprockets, and also transfer the coil sheet.

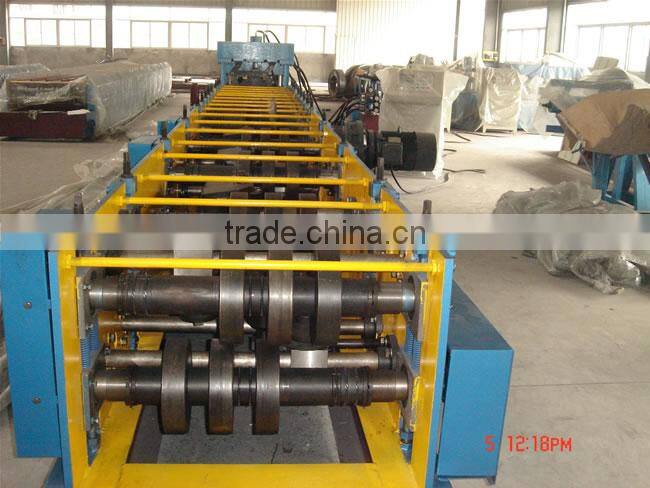

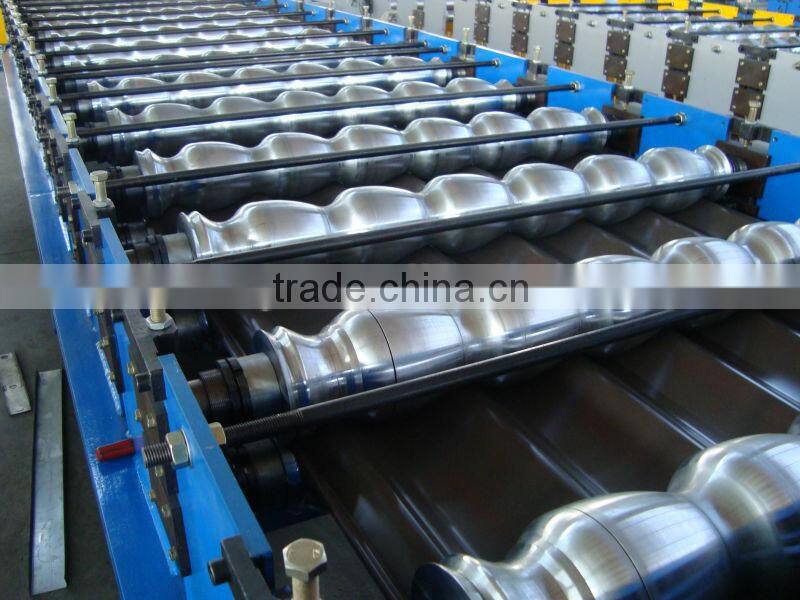

4) Roll forming system: The main frame of machine is welded separately and the outside wall is connected by screw after being rotoblasted on the surface.The rollers are surface-chromeplated after being machined by the exact machine tool.
5)Pressing equipment: After formed the shape of the tile panel, pressing the tile panel with pressing equipment which ensures the shape lasting and more beautiful.
6) Post Cut Equipment: The length and blocks can be set by the buyer through the control panel, when reach the set length, the machine will cut the panel automatically. The cutting is finished under the power of hydraulic station which guarantees the precision of cutting. The cutting blade shall be change when the size of purlin is changed. The machine is shipped with cutting blades with all sizes of C purlin.
7) Hydraulic Station: Supplies the initial power to the cuter through a closed oil tank. It is off without cutting, which can save the power.

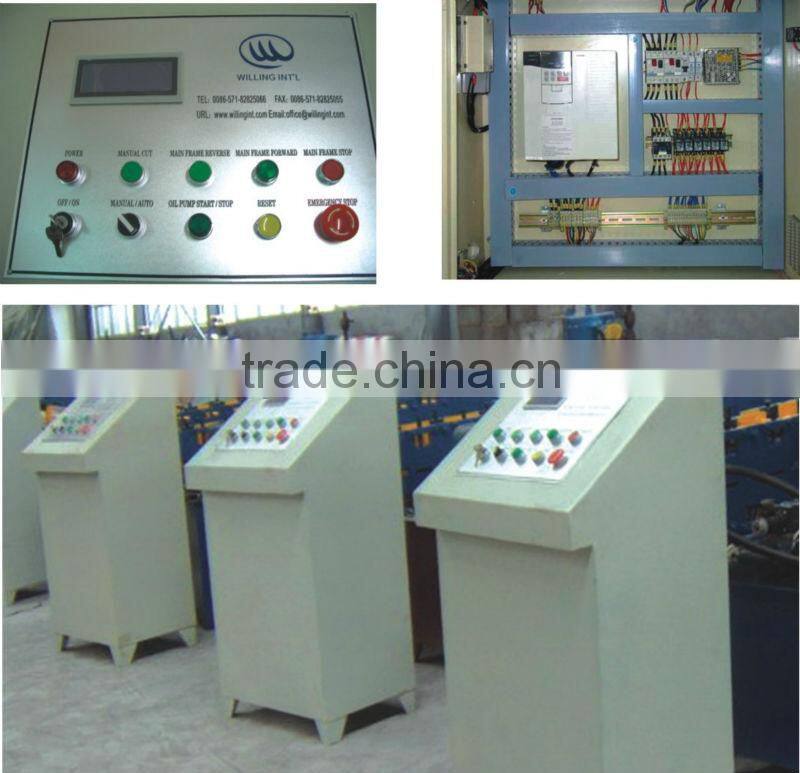

8) PLC Control Panel:
The electric controlling system of this machine consists of five parts: operating system, screen, PLC, transducer and strong electricity part. The controlling system of this machine are imported from Mitsubishi company of Japan. The system uses modularized structure and has convenient, reasonable, canonical wiring arrangement, and its maintenance is quite easy. The independent operating console facilitates the mutual dialogue between the operator and the machine. The operation is easy and steady and can be choosed operation by manual or automatically.
4. We do Your care, Machine Loading
Because of the long trip and your super trust, we will make sure Purlin roll forming machine can be
appeared in front of you in fully good condition, you will fall in love with it with first glimpse!
5.We do our utmost, Why WILLING
1). Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available across the world. We
need your machines running in order to keep your business running.
2). Q: How do your machines compare with other big companies in this market?
A: We are up to date with the latest technology and improve our machines accordingly
3). Q: How does your factory do regarding quality control?
A: Quality is priority. WILLING People always attach great importance to quality control from the very
beginning to the end of the production. Every product will be fully assembled and carefully tested before
it's packed for shipment.
4). Q: Do you sell only standard machines?
A: No, most of our machines are built according to customers specifications, using top brand name
components.
5). Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. The core of our company culture is honesty and credit. If you check with WILLING, you will see that we have never got any complaint from our customers.
