Slitting Line for Hot Roll Steel and Cold Roll Steel and Stainless Steel

Name: Slitting Line for Hot Roll Steel and Cold Roll Steel and Stainless Steel
Brand: willing
SKU: 127406589

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Place of Origin:

Zhejiang, China

Brand Name:

willing

Hangzhou Willing International Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

ningbo/shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Zhejiang, China

Brand Name willing

Certification CE

After-sales Service Provided Engineers available to service machinery overseas

Specifications

Slitting Line for Hot Roll Steel and Cold Roll Steel and Stainless Steel

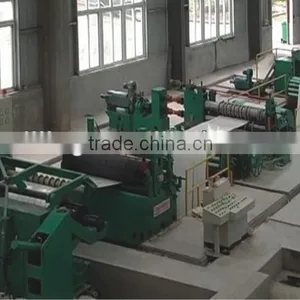

slitting line includes supportable table ,coil car, hydraulic uncoiler, sheet guiding equipment, leveling system.

Slitting Line Feature:

1)Material Spec:	galvanized steel sheet at stress 235Mpa (33ksi); less than 450Mpa.
2)Thickness:	0.3mm-3.0 mm
3)Coil width:	500-1600mm
4) Coil inner diameter:	508mm-610mm
5)Coil out diameter :	less than 2000mm
6) Max coil weight :	30T
7)Product coil inner diamer:	508mm
8) Product coil out diamter:	less than 1500mm
9) Product coil weight :	10T
10) Production speed:	0-120m/min
11)The slit width tolerance:	±0.05 at thickness 0.5-1.0mm ±0.1mm at thickness 1.1-2.0mm ±0.15mm at thickness 2.1-3.0mm
12)Slitting straighten tolerance:	0.2mm/m
13)The slitting burr:	less than 0.05mm
14) Min slit width:	30mm
15)The slit strip quantity:	20 strips
16)The waste edge:	3-15mm
17)The quantity of waste edge:	2strips
18)The Max weight of waste edge:	less than 150kgs/roll
19) The main power:	220kw
20)The weight of the line:	about 68T
21) The dimension of the line:	2500 0 mm*8500 mm
