Help CenterAutomatic Carbonated Drink Filling Machine
Related Products

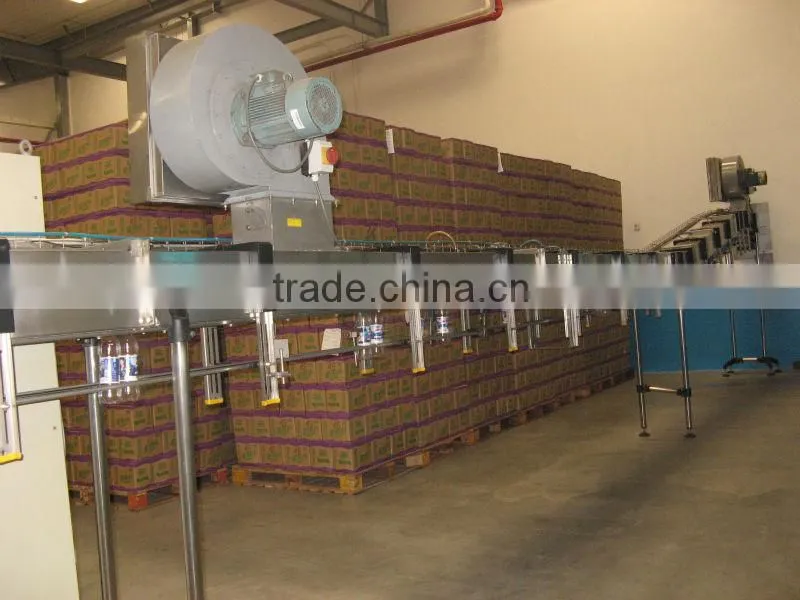

1.Direct connection technology between air conveyor and in-feeding starwheel is applied to replace in-feeding screw and conveying chain to ease bottle changing process with only to change few parts. Newly-designed bottle-separating grippers are assembled to starwheel.
2.Neck-hanging technology is applied in bottle transportation. Instead of traditional starwheel, we use neck-hanging gripper to make bottle-size-changing easily , without equipment height adjustment ,only few parts need to be adjusted .

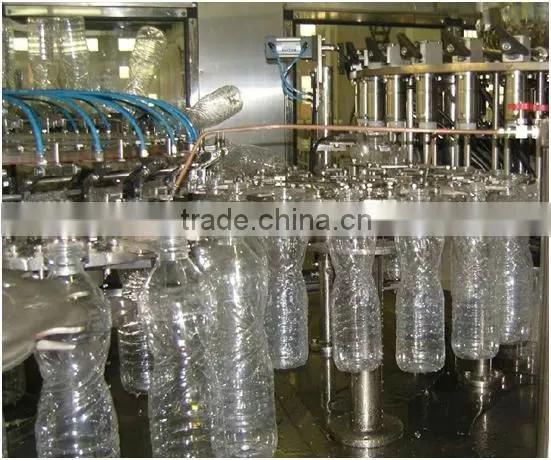

3.Specially-designed rinser grippers which are made of stainless steel are firm and endurable, with no contact to screw part of the bottle to prevent second pollution.

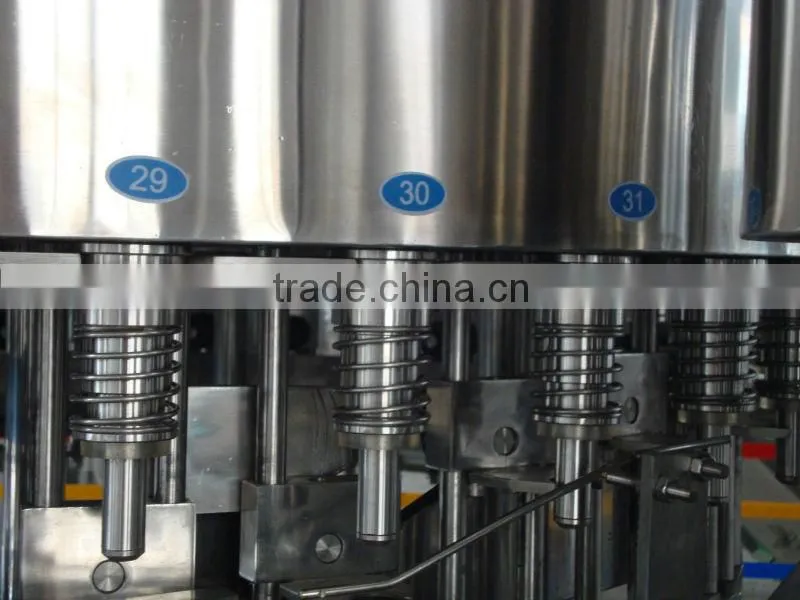

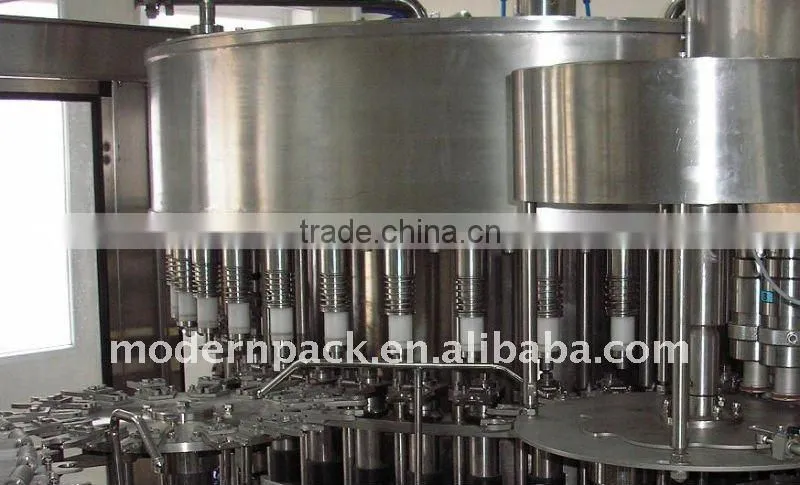

4.High-speed, easily-cleaned filling valves with big flow volume are equipped with well CIP system and control system to rinse the equipment throughly.

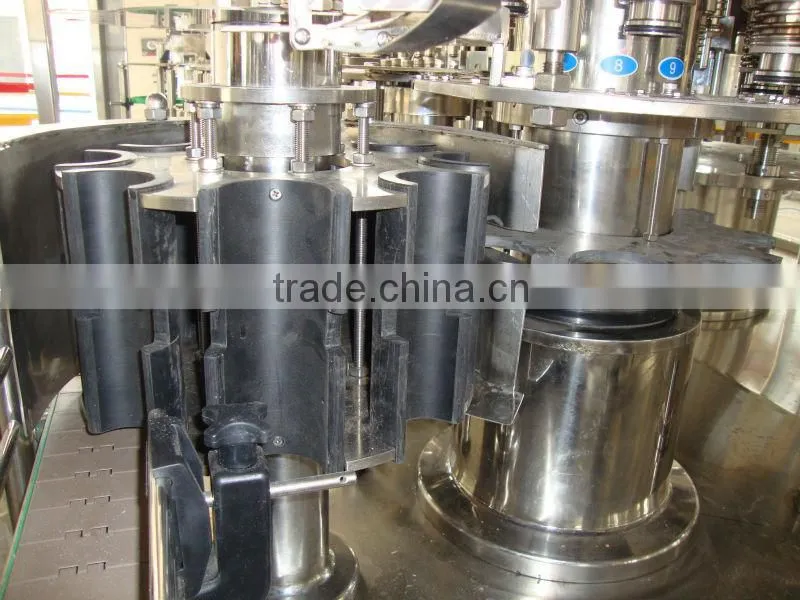

5.splint of starwheel using twist descending way to simplify the process of bottle-size-changing. Only need to change arch board and starwheel ,within ten minutes.
bottle filling machine
Mineral Water filling machine 1.Capacity:2000-30000b/h 2.Bottle Specification:D=50-108mm H=170-340mm.
| Technical Data | ||||
| Model | CGF12126 | CGF18186 | CGF24248 | CGF323210 |
| The number of Washing, Filling, Capping | 12-12-6 | 18-18-6 | 24-24-8 | 32-32-10 |
| Producing capacity; The number of bottle(600ml)/hour | 3000-4000 | 6000-7000 | 8000-10000 | 12000-15000 |
| Applicable bottle specifications (mm) | φ=50-108 H=170-340 330ml-2.25L | |||
| Pressure (kg/cm2) | 2~3 | |||
| Motor power (kw) | Main motor 1.5kw | Main motor 2.2kw | Main motor 3kw | Main motor 4kw |
| Outside vacuum pump power (kw) | 0.75 | 1.1 | 1.5 | 2.2 |
| Overall dimension (mm) (LxWxH) | 2100x1400x2500 | 2460x1720x2650 | 3100x2100x2650 | 3500x2500x2650 |
| Weight(kg) | 2500 | 3500 | 4200 | 5500 |
| Technical Data | |||
| Model | CGF404010 | CGF484812 | CGF606015 |
| The number of Washing, Filling, Capping | 40-40-10 | 48-48-12 | 60-60-15 |
| Producing capacity: The number of bottle(600ml)/hour | 18000-20000 | 22000-25000 | 28000-30000 |
| Applicable bottle specifications (mm) | φ=50-108 H=170-340 330ml-2.25L | ||
| Pressure (kg/cm2) | 2~3 | ||
| Motor power (kw) | Main motor 7.5kw | Main motor 9.5kw | Main motor 12kw |
| Outside vacuum pump power (kw) | 2.2 | 3 | 4 |
| Overall dimension (mm) (LxWxH) | 4600x1800x2650 | 5200x4500x3400 | 6500x4500x3400 |
| Weight(kg) | 6800 | 7600 | 9800 |
Zhangjiagang Modern Beverge Packing Machinery Co.,LTD. is a collection development, research, design, production and technical services and marketing into one professional engaged in the manufacture of mechanical equipment packages beverages, food packaging machinery equipment, high-tech enterprises. Companies have excellent development and design system experienced technical team, continually introducing Italy, and Germany abroad latest beverage packaging machine games, focusing on the reliability of the overall performance, development and improvement of their own products. Our company mangaerial concept is "cooperate honestly,base on the credit,be superior in quality".We would like to cooperate with all old and new customers to co-develop,establish long-term stable business relationship,and make a bright future together. Provide long-term mineral water, pure water (bpd) gasoline production lines on a tea, juice beverages hot, cold beverage production lines on a carbonic acid beverages bottled production line on a beverage tastes gasoline production lines on a purely Shengpijiu gasoline production lines on a yellow wine and white spirit, wine beverage production lines and various ancillary equipment, and the turnkey contract works.
