Home > Packaging & Printing > Packing Machinery > Filling Machine > Vitamin Beverage Filling and Capping Machine

Vitamin Beverage Filling and Capping Machine

Name: Vitamin Beverage Filling and Capping Machine
Brand: Modern pack
SKU: 127404361

Vitamin Beverage Filling and Capping Machine thumbnail-1

Vitamin Beverage Filling and Capping Machine photo-1

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Condition:

New

Application:

Beverage

Packaging Type:

Bottles

Contact Supplier Request Quote Chat Now

Zhangjiagang Modern Beverage Packing Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Application Beverage

Packaging Type Bottles

Packaging Material Wood

Automatic Grade Automatic

Driven Type Electric

Voltage by order

Place of Origin Jiangsu, China

Brand Name Modern pack

Certification CE

Product Description

Specfication of vitamin beverage filling and capping machine

1. Rinsing empty bottle, filling, and capping functions are integrated in one system, fully automatic synchronized working. Bottle travels on neck to neck from in-feed till out-feed resulting scratch free movement of bottle.

2. Pressure filling nozzles deliver fast, efficient, and accurate dispensing with minimal dripping and leakage.

3. No Bottle No Filling, no caps no capping, no caps auto stops. When bottle jam auto stop, machine accident auto stop. Open the window when machine running, machine auto paused. Heavy duty stainless steel filling pump & rinsing pump. Food grade 316L or 304stainless steel contact parts, smooth & fine Polish, no dead angles.

4. Adopted first class component from Mitsubishi, OMRON, SIEMEN, With PLC, invertors control, touch screen, sensor, switch and other electric parts

5. Machine and cable arrangement designed according to CE standard and all safety standard.

Outstanding features of vitamin beverage filling and capping machine

A. High automation level, compact structure, attractive appearance, convenient and simple operation, safe and reliable and adjustable continuous production capacity, low labor intensity.

B. The main machine adopts advanced PLC control technology

C. The key electric elements adopt products made by international famous companies, such as Mitsubishi and Siemens. (pure water filling machine)

Parameters of vitamin beverage filling and capping machine

Model	CGF16-12-6	CGF18-18-6	CGF24-24-8	CGF32-32-10	CGF40-40-12
Production Capacity(500mm)(b/h)	2000-4000	4000-6000	8000-10000	12000-15000	16000-18000
Filling Precision	≤±5mm(Liquid Level)
Polyester Bottle Standard(mm)	Diameter: D40-D80, Height: 130-280mm	Bottle Diameter D50-D100,Height:150-320mm
Suitable Cap Shape	Plastic Screw Cap
Water Pressure of Washing Bottle(Mpa)	0.18
Water Consumption for Water Bottle(kg/h)	800	1600	2500	3500	1000
Spraying Position	5	5	6	12	5
Dripping Bottle Position	3	3	3.5	7	8
Gas Source Pressure(Mpa)	Normal Pressure
Gas Consumption(m3/min)	0.3	0.3	0.4	0.5	0.6
Total Power(kw)	4.23	5.03	6.57	8.63	9.63
Total Weight	2000	3500	5500	6000	8000
Dimension(LWH)(mm)	210015002200	245018002200	275021802200	350022002250	350022002250

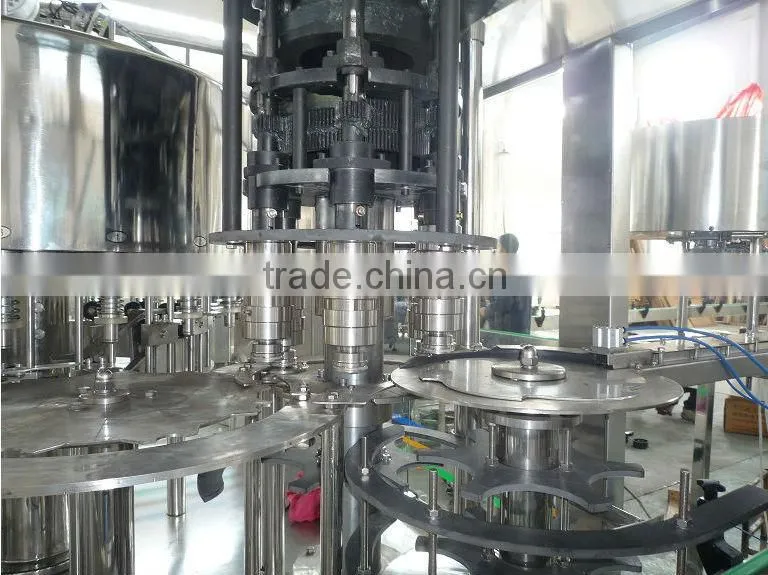

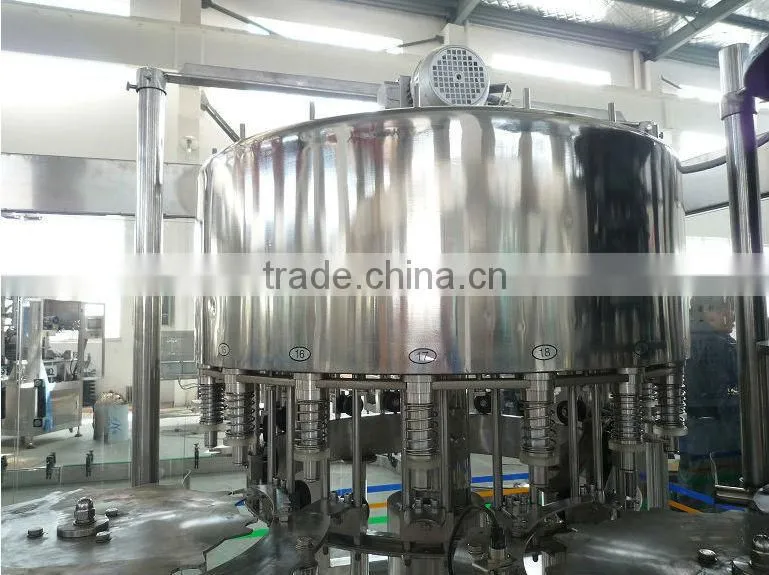

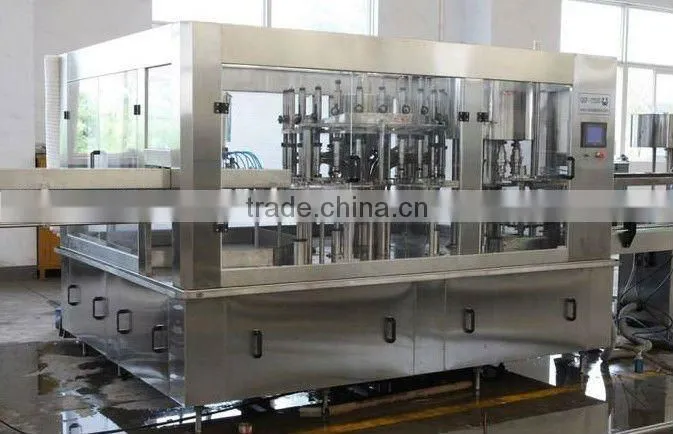

Main pictures of vitamin beverage filling and capping machine

Packaging & Shipping

Our packing

We normally use the standard wooden box to pack machines,but if our machine will export to Europ Country,the wooden box will be after fumigated. If enter container the packages is too tighter,we may use PE film to wrapping the machine to protect it, or according to customer special request do packing.

Our Services

What will you get:

1.Your inquiry related to our product & price will be replied within 24hours;

2.Well-trained & experienced staff are to answer all your inquiries in English or Chinese;

3.Working time: 08:00 ~17:00, Monday to Saturday(UTC+8);

4.OEM & ODM projects are both available;

5.Your business relationship with us will be confidential to any third party;

6.Good after-sale service offered, please get back to us if you got any questions;
