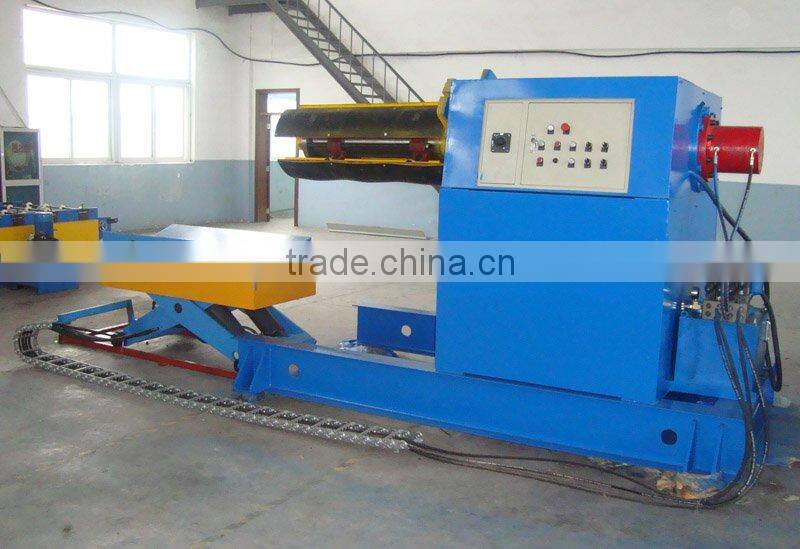

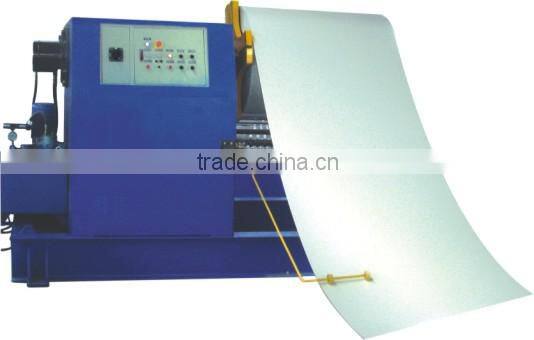

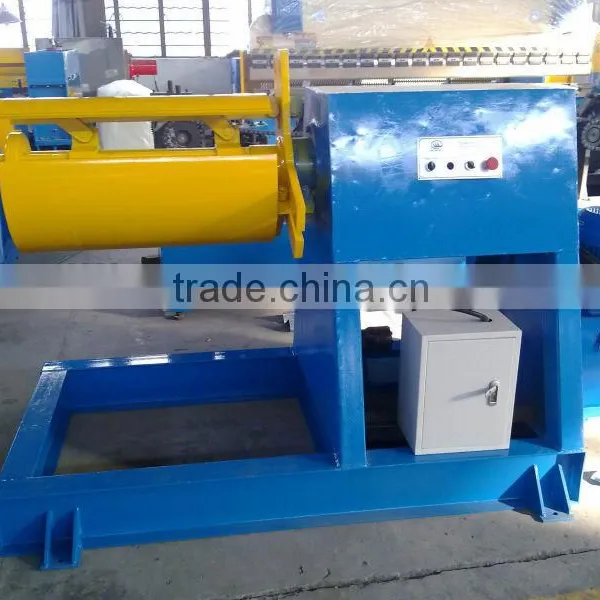

Hydraulic Steel Coil Uncoiler Machine

Hydraulic Steel Coil Uncoiler Machine thumbnail-1
Hydraulic Steel Coil Uncoiler Machine photo-1
US$ 18,000 - 28,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Willing
After-sales Service Provided:
Engineers available to service machinery overseas
Contact Supplier Request Quote Chat Now
Hangzhou Willing International Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name Willing
After-sales Service Provided Engineers available to service machinery overseas

Specifications

1: simple structure and beautiful outlook;
2: easy to set and to operate



Product Description



Specifications

Capacity: max. 10tons

Speed: 6m/min
Lifting: max 550mm
Moving: max 3000mm

Components:

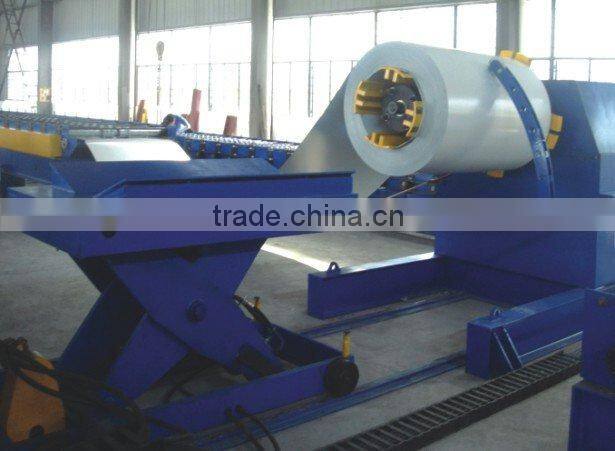

The uncoiler consists of the lifting dolly, uncoiler with pressing arm, frame with lead rail, and hydraulic system. The moving dolly can be lifted, move on the lead rail, carry the coil to the uncoiler, the leafs of the ucoiler expanse, the coil be fixed on the uccoiler, main axis of the uncoiler rotate, the coil sheet comes out. After the coil sheet fed into the roll forming machine, the coil sheet will be pulled back to minimize the pendant.



Work Flow:

Fix the coil to the uncoiler →fix coil sheet to lifting dolly →lifting dolly moves to uncoiler →lifting dolly lifts to the same center with uncoiler → lifting dolly moves more closely to uncoiler arms of uncoiler →expanse →lifting dolly returns axis of uncoiler rorate

Hydraulic Steel Coil Uncoiler MachineHydraulic Steel Coil Uncoiler MachineHydraulic Steel Coil Uncoiler Machine
