Specifications

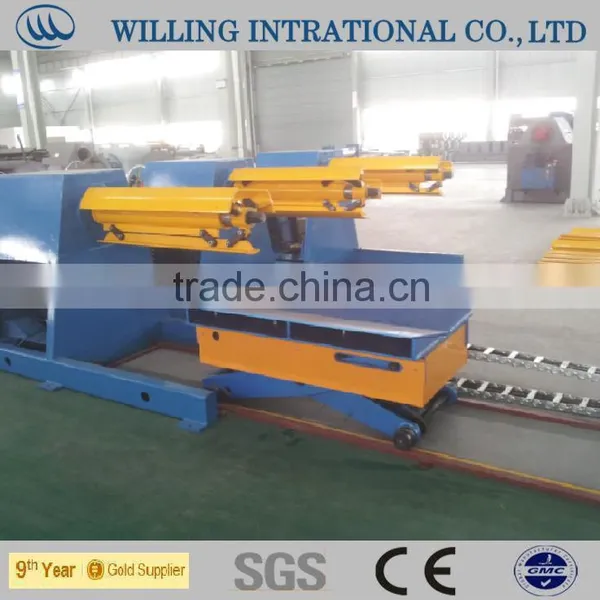

High quality 10 ton & 5 ton hydraulic uncoiler, hydraulic decoiler wih coil car, hydraulic uncoiler with dolly car.High quality hydraulic uncoiler,
10 ton & 5 ton hydraulic uncoiler,
hydraulic uncoiler
* Technical Parameters for Hydraulic Uncoiler *
For lifting dolly
1) Capacity: see the type of uncoiler, max. 5 tons.
2) Speed: 6m/ min.
3) Lifting: max. 5500mm.
4) Moving: max. 3000mm.
For decoiler
1) Capacity: see the type of uncoiler, max. 5tons.
2) Inner dia: 508mm, and 610mm (gasket is required).
3) Width: max. 1500mm.
4) Center adjust: max. 250mm.
5) Equipped with optical sensor, laid before decoiler, if sheet is close to sensor, it will stop releasing coil sheet; if sheet leaves sensor, the decoiler will release coil sheet.
For hydraulic
1) Max. hydraulic pressure: 16 Mpa.
2) Motor power: 10.5 KW.
3) Air pressure: 0.9 Mpa.
Work Flow
Fix coil to the decoiler ---- fix coil sheet to lifting dolly ---- lifting dolly moves to decoiler --- lifting dolly lifts to the same center with decoiler ---- lifting dolly moves more closely to arms of decoiler---- expanse (coil moves to the decoiler) ---- lifting dolly returns ---- axis of decoiler rotate (coil sheet comes out).
