Specifications
1.fuel gas cutting machine2.1200*2000mm,1500*2500mm, 1500*3000mm
3.good cutting effect,stable
4.Libraray with shapes

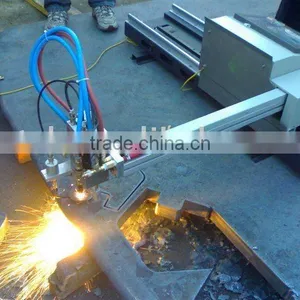

Portable CNC plasma cutting machine / CNC flame cutting machine is used for cutting metal plate, such as steel plate. The beam can be easily disassembled, easy for packing and shipment. Sealing perfect, dust-proof, light, smart and portable. The effective cutting size can be 1200*2000mm, 1500*2500mm, 1500*3000mm and so on.
fuel gas cutting machine Specifications
1. The overall processing machine base, good stability, not deformed
2. Using beeline and double-slide lead rails, high accuracy
3. A detachable structural design for arm, convenient transportation and installation
4. Beautiful structure, coordination, light weight;
5. Machine base is made in steel.
6. The CNC control system has the following character :
1) High reliability, such as anti-plasma jamming, and lightning strike, Surge;
2) 32M users program storage capacity can update to 64M;
3) In both English and Chinese interface conversion;
4) During plasma processing, auto-complete the speed control of the corner
5) Rich software features and practical flame / plasma cutting process;
6) In particular small line section procedure processing can be widely used in metal materials and advertisement, Iron;
7) Dynamic graphics, zoom in 1-8X the graphics, fixed point of automatic tracking;
8) Using USB Flash Drive reading procedure and timely upgrade software;
9) Built-in the rich graphics, makes programming easy to learn.
Major Parameters:
Input voltage |
220V |
Rated power |
160W |
Power frequency |
50HZ |
CNC control system |
SH2012AH-QG |
LCD size |
7’’ color display |
Fuel gas source pressure |
Max .0.1Mpa |
Oxygen Source Pressure |
Max. 1.5Mpa |
Cutting type |
Flame or Plasma |
Max. cutting speed |
0-8m/min |
Cutting thickness for flame |
6-150mm |
Cutting thickness for plasma |
0.1-50mm(according to plasma source) |
Fuel |
Propane, Acetylene, Methane |
