Specifications
mini cnc plasma metal sheet cutting machineeasy to use,easy to move
automatic cutting
save cost
best after-sale service

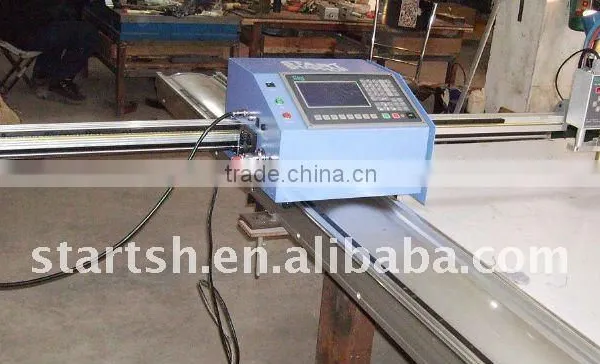

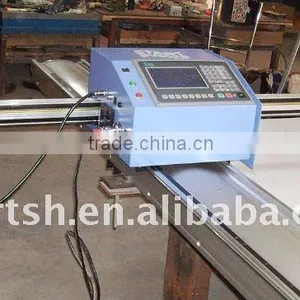

mini cnc plasma metal sheet cutting machine (Model: MS1225)
Input Voltage |
220V |
Power Frequency |
50/60Hz |
CNC Cutting Controller |
SH-2012AH-QG 7’’ Color LCD Screen |
Max. Fuel Pressure |
0.1 Mpa |
Max. Combustive Gas Pressure |
1.5 Mpa |
Cutting Type |
Flame or Plasma |
Cutting Speed |
50 ~ 750 mm/min (flame); 50 ~ 6000 mm/min (plasma) |
Cutting Thickness |
5 ~ 150 mm (flame); 0.5 ~ 60 mm (plasma) |
Fuel |
Propane, Acetylene, Methane |
Cutting Precision |
0.2 mm |
Cutting Nesting Software |
IBE (Standard & Expert version) |
Differences from other machines.
1. Good stability: rigid construction design, made by high pressure and high temperature.
2. High precision: advanced parallel orientation technology, and slider block is made by German machine.
3. Simple installation: integration structure design to avoid troublesome installation.
4. No deformation: aluminium has better heat dissipation than steel
5. Easy to move
6. The CNC cutting controller has the following characters:
1) high reliability, such as anti-plasma interference, anti-lightning strike and surge
2) 32M program storage capacity can update to 64M
3) language: English and Russia
4) during plasma process, automatically complete the speed control of the corner
5) rich software features and practical flame / plasma cutting process
6) in particular small line section procedure processing can be widely used in metal materials and advertisement, Iron;
7) dynamic graphics zoom in 1-8X the graphics, fixed point of automatic tracking
8) use USB flash disk to store programs into the controller
9) rich built-in shapes, easy application
