Home > Manufacturing & Processing Machinery > Building Material Making Machinery > Tile Making Machine > Z Shape Roof Purlin Steel Sheet Cold Roll Forming Machine in China
Z Shape Roof Purlin Steel Sheet Cold Roll Forming Machine in China
US$ 36,000 - 46,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, Z shape purlin roll forming machine
Tile Type:
Steel
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or Ningbo China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
C and U Shape Roof Purlin Steel Sheet Cold Roll Forming Machine in ChinaUS$ 34,000 - 44,000MOQ: 1 Set -
Light Steel Metal Stud and Track Roll Forming MachineUS$ 30,000 - 44,000MOQ: 1 Set
-
Dry Wall Stud and Track Roll Forming MachineUS$ 30,000 - 44,000MOQ: 1 Set
-
Lip Purlin Channel Roll Forming MachineUS$ 24,000 - 44,000MOQ: 1 Set
-
C Z Purlin Roll Forming MachineUS$ 30,000 - 34,000MOQ: 1 Set
Condition
New
Type
Other, Z shape purlin roll forming machine
Tile Type
Steel
Use
Roof
Production Capacity
0-15m/min
Place of Origin
Zhejiang, China
Brand Name
WILLING
Model Number
any size as buyer request
Power(W)
18.5-22kw
Voltage
380v or as buyer request
Dimension(L*W*H)
7500mm*1400mm*1500mm
Weight
5000kg
Certification
CE, ISO9001:2008,GMC,Soncap, AAA credit
Warranty
12 month
Specifications
Roller driven type: chain transmissionController: PLC
Operation: touch screen button
Hydraulic system pressure: 20Mpa

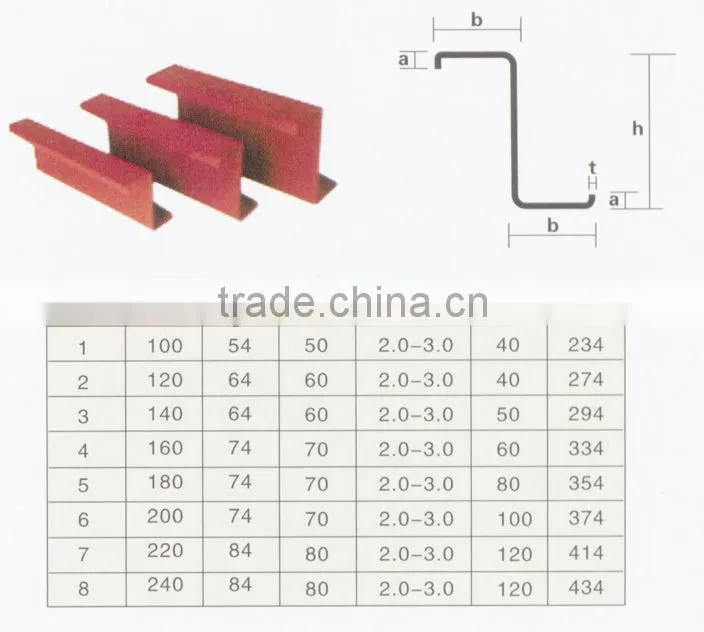

1. PROFILE DRAWING
2. MACHINE LAYOUT
3. MACHINE PICTURE
4. FINISHED PRODUCTS
5. WORKING FLOW
Decoiling the sheet------ Sheet guiding------Flat Sheet Flattening------Set to Length------Roll forming------Finished Profile Rectification------Cutting the Finished Panel------Finished Product Comes out to the Run out Table
6. STANDARD EUIPMENT OF MACHINE
Passive Uncoiler 1set
Guiding Equipment 1set
Flattening Rollers 1set
Encoder System 1set
Roll Forming Equipment 1set
Rectification Roller System 1set

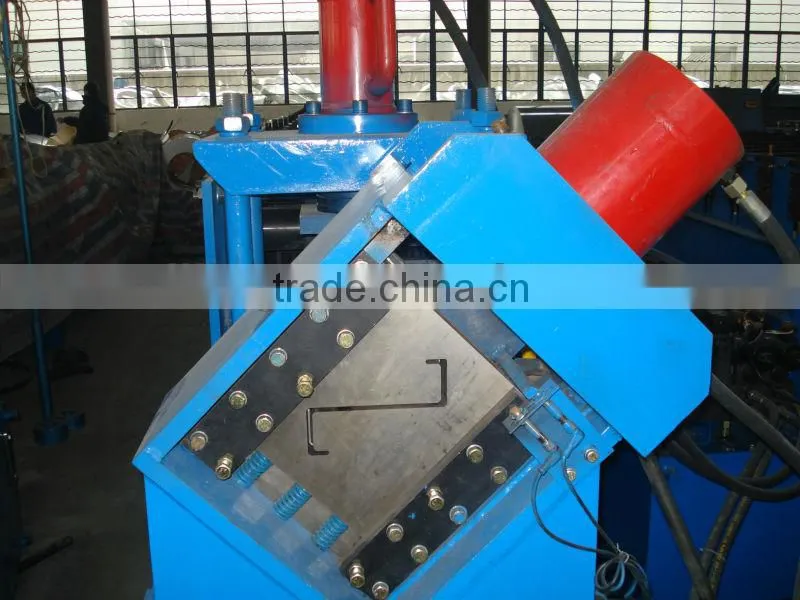

Post-cutting Equipment 1set
Hydraulic Station 1set
PLC Controller (Desk) 1set
Run out Table 2sets
Send Inquiry to This Supplier
Business Type
Manufacturer, Trading Company
Year Established
2004
Factory Size
50,000-100,000 square meters
Total Employees
51 - 100 People
