Specifications
Roller driven type: chain transmissionController: PLC
Operation: touch screen button
Hydraulic system pressure: 20Mpa
Light steel metal stud and track roll forming machine

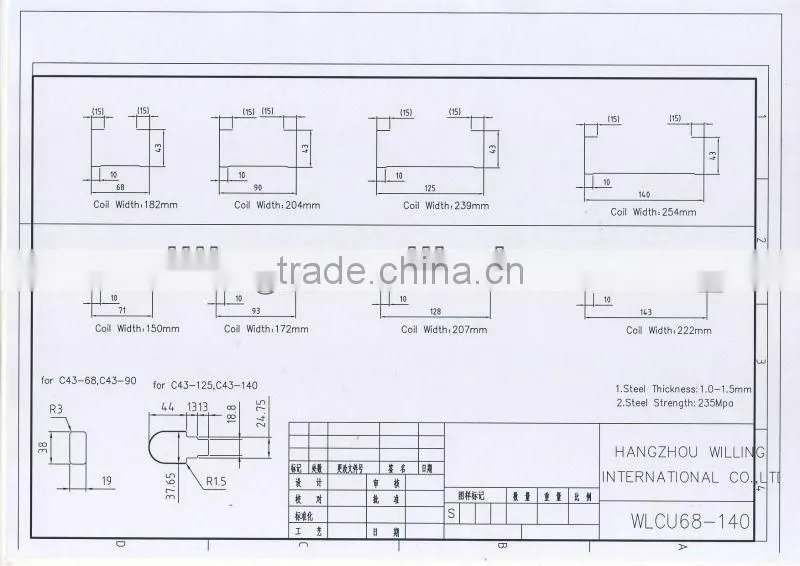

1. Profile drawing

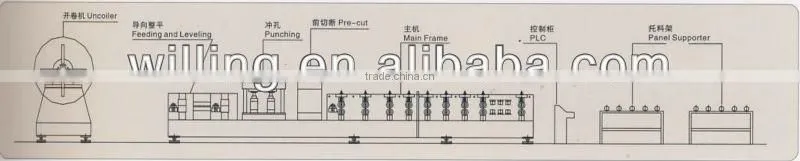

2. Machine layout
3. Main parameter
Material spec: |
Color steel sheet; |
Thickness: |
0.3 -1.0mm, 1.0-1.5mm |
Coil width: |
depends |
Working speed: |
0-15m/min. (Nodal distance at 250mm) |
Cutting tolerance: |
±2mm |
Main motor power: |
4Kw |
Hydraulic station power: |
3Kw |
Decoiler |
manual decoiler, max capacity 5000kgs |
Main roller qty: |
about 16 stands but depends on last design |
Type of cutting: |
Roll-formed and length-set cutting |
Main body dimension: |
About 5000mm*1500mm*1400mm |

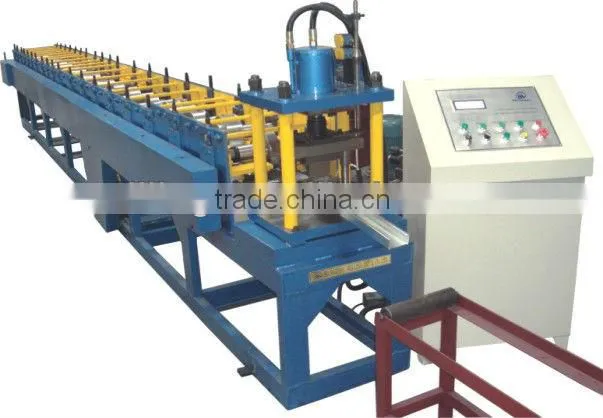

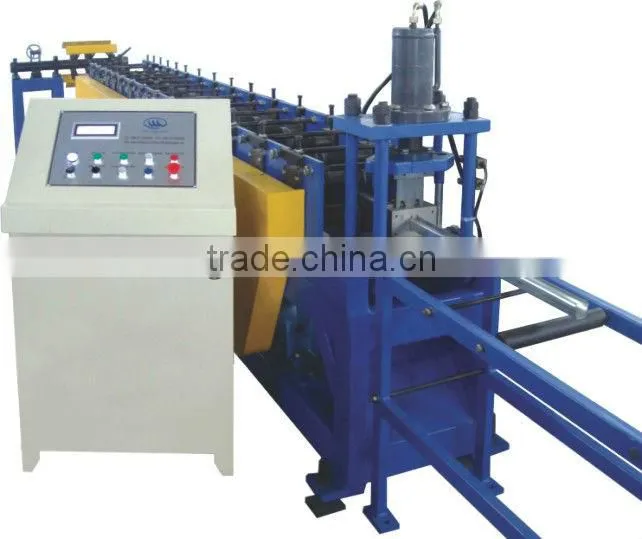

4. Machine picture
5. Working flow
Decoiling the sheet------ Sheet guiding------Flat Sheet Flattening------Set to Length------Roll forming------Finished Profile Rectification------Cutting the Finished Panel------Finished Product Comes out to the Run out Table
6. Standard equipment of machine
5tons passive uncoiler |
1set |
Guiding Equipment |
1set |
Roll Forming Equipment |
1set |
Punching equipment |
1set |
Post Cut Equipment |
1set |
Hydraulic Station |
1set |
PLC Control Penal |
1set |
Supporter Table |
2sets |
