Specifications
High Quality Slitting Production Line, Slitting Machine, steel slitting product line.High Quality Slitting Production Line,
Slitting Machine,
steel slitting product line
1. Main Parameters
NO. |
Name |
Unit |
Parameters |
1 |
Control model |
|
Frequency conversion control |
2 |
Material |
|
CRS/Galvanized steel coils |
3 |
Thickness |
mm |
0. 2-2.0 |
4 |
Width(max) |
mm |
1250 |
5 |
Coil ID |
mm |
508 |
6 |
Coil OD |
mm |
1400 |
7 |
Weight |
ton |
5tons |
8 |
Blade specification |
mm |
Φ220×Φ120×10 |
9 |
Material of blade |
|
6CrW2Si |
10 |
Line speed |
m/min |
≤40 |
11 |
Power of decoiler |
kw |
7.5 |
12 |
Power of recoiler |
kw |
11 |
13 |
Power of recoiler |
kw |
30 |
14 |
Quantity of strips can slit (Max) |
strips |
10 |

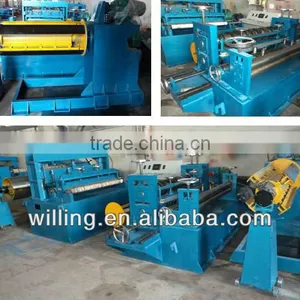

2. Components
1) Manual expand and shrink un-coiler (1 unit)
2) Storage pit 1
3) Φ220×1250mm disc slitting machine(1 Unit)
4) Scrap winder
5) Storage pit 2
6) First pre-dividing,and press device(1 unit)
7) Hydraulic cutting machine
8) Φ520(MAX)×1350 mechanical recoiler(1 Unit)
9) Second dividing and pressing device(1 unit)
10) Electrical control case(1 unit)
