The Cut to Length line includes in decoiler unit, sheet guiding equipment, levelling system, post cutting equipment...Components for the Machine

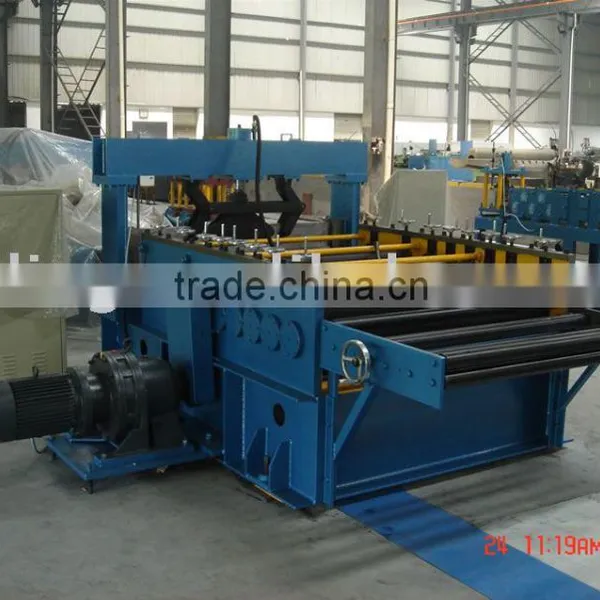

The Cut to Length line includes in decoiler unit, sheet guiding equipment, levelling system, post cutting equipment, hydraulic station, electric controlling system and run out table .
Technical Parameters
Material Spec Color steel sheet Q235/33ksi; galvanized steel sheet
Thickness 0.3-1.0mm
Working Speed 14 20 m/min.
Cutting Tolerance ≤±2.5mm ( length ≤ 5000mm)
≤±3mm ( 5000mm < length ≤ 10000mm)
Power Requirement Main motor power: 4Kw
Hydraulic station power 2.2Kw
Passive Uncoiler Max. Capacity: 5000kgs
Type of cutting Roll-formed and length-set cutting
Machine Dimension About 2500×1500×1400mm
Total weight About 3000kg
Material of Main Equipment
Roller MaterialHigh grade No.45 forged steel, Coating with hard chrome.
Active Shaft Material High grade No.45 carbon wrought steel,which can improve the integrated mechanic feature of the shaft
Electric Elements PLC control panel, transducer imported from Mitsubishi of Japan.Other elements from famous suppliers in China
Cutter blade Cr12 mould steel with quenched treatment
Component and Function
Coil Feeding Equipment Consists of one uncoiler with capacity of 5000kgs and its base. The steel sheet is manually fed to the guiding equipment under the function of friction and traction
Guiding Equipment Adopting guiding bar and sliding block to control the width and position of the steel sheet. The coil is guided in the correct position and passed to the roll forming equipment.
Mainframe Transmission Transfer the main motor power to the rollers through chains and sprockets, and also transfer the coil sheet.
Post Cut Equipment The length and blocks can be set by the buyer through the control panel, when reach the set length, the machine will cut the panel automatically. The cutting is finished under the power of hydraulic station which guarantees the precision of cutting.
Hydraulic Station Supplies the initial power to the cuter through a closed oil tank. It is off without cutting, which can save the power.
PLC Control Panel The electric controlling system of this machine consists of five parts: operating system, screen, PLC, transducer and strong electricity part. The controlling system of this machine are imported from Mitsubishi company of Japan. The system uses modularized structure and has convenient, reasonable, canonical wiring arrangement, and its maintenance is quite easy. The independent operating console facilitates the mutual dialogue between the operator and the machine. The operation is easy and steady and can be choosed operation by manual or automatically.
Supporter Table To support the finished panels. The quantity we supply is 2 pieces with length 2000mm, it can support panels with 10000mm at normal condition.
Working Flow
Decoiling the sheet------Sheet guiding------levelling------Measure length------Cutting the panel------panels to the supporter
Standard Equipment of Machine
Passive Uncoiler 1pc
Guiding Equipment 1set
Post Cut Equipment 1set
Hydraulic Station 1pc
PLC Control Penal 1pc
Supporter Table 2pcs
