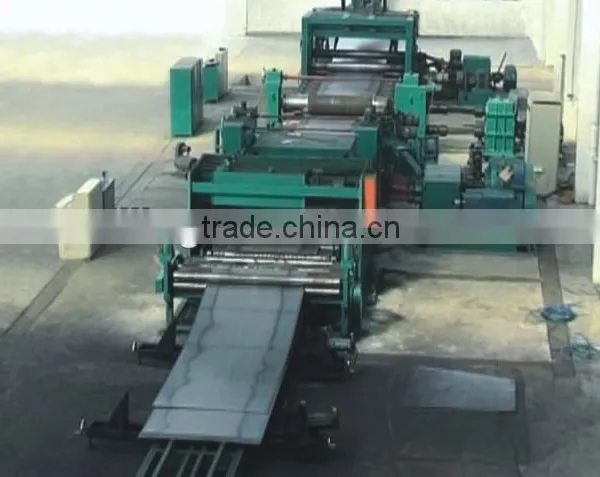

High Speed Cut to Length Line for Cold Roll Steel/carbon Steel

High Speed Cut to Length Line for Cold Roll Steel/carbon Steel thumbnail-1
High Speed Cut to Length Line for Cold Roll Steel/carbon Steel photo-1
US$ 200,000 - 300,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Zhejiang, China
Brand Name:
Willing
Contact Supplier Request Quote Chat Now
Hangzhou Willing International Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Zhejiang, China
Brand Name Willing
Model Number Cut to length
Voltage 40kw
Rated Power 380v 3phase 50hz or at buyer`s requirement
Warranty 1year

Specifications

High degree of automation,simple&reliable operation
High cutting precision&sheet flatness

I.        This line is apply for:

  1. Thickness of coil plate: 1—10mmcold carbon steel plate ;
  2. Width of coil plate:     2200mm;
  3. Coil I.D:               508mm—800mm;
  4. Coil O.D:             ≤2100mm;
  5. Weight of coil plate:    30T;
  6. Range of cut to length: 2 to 10 m



II.     Technical parameter

1.          Width of crosscut shearing maching: 2500mm;

2.          Precision of leveling:   length tolerance: ±1.0mm/2000mm;

diagonal tolerance: ±1.5mm/2000mm;

3.  Material of leveling roller: 40Cr

hardness of leveling roller surface: HRC50—54;



  1. Leveling roller diameter:160mm, distance: 180mm.
    1. Hydraulic station: flux 40 L/min; pressure 16Mpa; capacity of hydraulic                                                                                                              case: 100 L, power of motor: 7.5KW
    2. Leveling speed: 0—24m/min(adjustable)

calculated by 8m plate: 2 pcs/min





III.  Composed Device

  1. Hydraulic coil car:     loading capacity of 30T
  2. Hydraulic uncoiler:

This is composed of bottom-stand(guiding track pattern), frame, brake, uncoiler axle, conical uncoiler tray, hydraulic brake pulley, etc.

  1. Hydraulic pressing and guiding, shovel-head, pinch and preliminary leveling device:

This is composed of frame-stand, hydraulic pressing and guiding arm, coil opener, hydraulic shovel-head device, hydraulic pinch and preliminary leveling device, power device, etc.

(a)      Hydraulic pressing & guiding device:

This is composed of hydraulic pressing and guiding arm, pressing and guiding wheel(cover by rubber), sprocket wheel, chain, accompany of seam needle decelerating motor:11KW, etc.

(b)     Hydraulic shovel-head device:

This is composed of shovel-head body, hydraulic shovel-head, balanced device for hydraulic shovel-head.

(c)      Hydraulic pinch and preliminary leveling machine

This is composed of slide-stand, pinch roller(2pcs), hydraulic pinch   device, 2pcs of preliminary leveling rollers, hydraulic preliminary leveling device, etc.

(d)     Power device for pinch

This is composed of AC speed adjustable motor:22KW, decelerator500, gear, a set of spindle and connect-cover, universal coupling, clutch, etc.

  1. Transitional table   4m

This is composed of worktable frame, rollings, bearing-stand, etc.

  1. Guiding machine:

This is composed of worktable frame, guiding pole, lead-screw drive, moveable plane plate and clutch with multiroller, etc.

  1. Leveller:

Power part: This is composed of power-stand, ZQ750-23.34decelerator, DC speed adjustable motor:Z4-200-21, 110KW, motor wheel, coupler, YWZ brake, distributing case for power, universal cross joint, etc.

Host machine: This is composed of bottom-stand, frame, under-axle stand, sliding axle stand, 13pcs of leveling roller,upper pressing frame, up and down supporting wheel stand, supporting wheel, mechanically lifting &pressing adjustment device, accompany of two motors: 3KW.

  1. Encoding and length gauge device

This is composed of coding transition table, coding device, encoder, etc.

  1. Cut to length machine :

13×2500mm

  1. Worktable, swaying pneumatic pinch device(air resource shall provided by user-self)

This is composed of worktable, frame, rollers, bearing-stand, etc. accompany of seam needle decelerating motor:4KW

  1. Unloading dolly:     8m

Vertically and horizontally pneumatic pushing device

  1. Full set of electric control system

This is composed of host electric cabinet, two operating panels, etc.

  1. Hydraulic system

This is composed of hydraulic station, pipe, fittings, etc. Hydraulic oil, lubricate oil shall provided by user-self.
