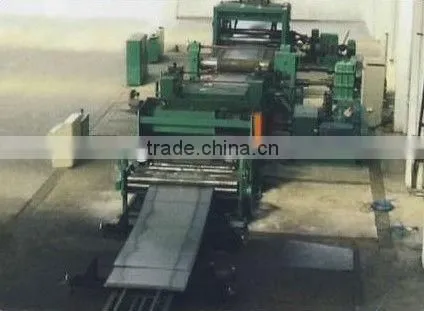

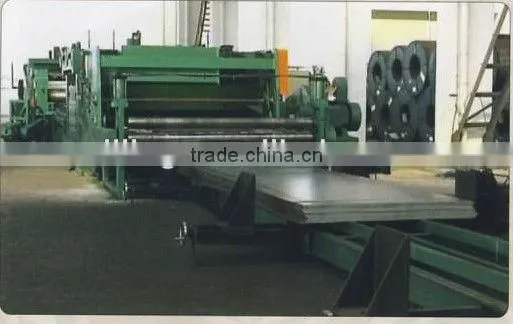

Help CenterSteel Length Cutting Machine
Related Products
Specifications
1. High precision;High speed;High reliability.2- For this line ,we will offer installation in your country.
For the cut to length line, we will offer installing service in your country. Our three engineers will go to your country and install the line for almost 20 days. For more details, please contact Sugo.
Material cutting |
Cold roll steel, galvaniz roll, stainless steel , aluminum |
|
Item |
Unit |
Range |
Thickness |
MM |
0.3-2, 0.5-3, 1-6, 2-8, 3-12, 6-25 |
Width |
MM |
1250,1500,2000, 2500 |
Load weight |
T |
15, 35 |
Leveling precision |
MM/M2 |
1 |
Measuring precision |
MM/M |
0.5 |
Line speed |
M/MIN |
15-60 |
A Technical parameter
- Material of processible coil: apply for CR b<350Mpa
- Thickness of coil: DIA=0.3—3mm;
- Width of coil: 1600mm;
- Loading capacity of uncoiler: 25T;
- Coil I.D: DIA508mm—DIA610mm;
- Coil O.D: <1500mm;
- Precision of cutting: length tolerance: ±1.0mm/2000mm;
diagonal tolerance: ±1.5mm/2000mm;
- Material of leveling roller: 40Cr, hardness of leveling roller surface: HRC50—54;
- Leveling speed: 0—24m/min;
- Power: 380V three-phase electricity 50Hz;
- Hydraulic coil car loading capacity of 25T

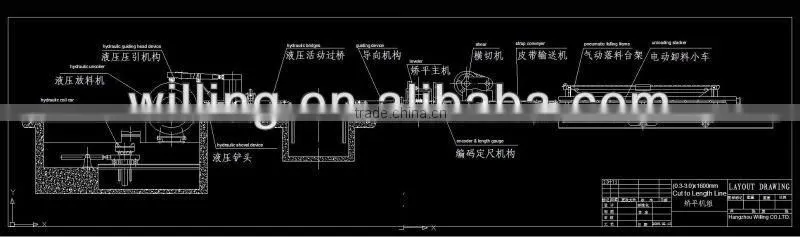

B. Composed Devices
This car’s lifting and horizontal moving are all driven by oil cylinder.
Lifting cylinder: Φ200×700mm, moving cylinder: Φ100×2500mm.
- Hydraulic expansion uncoiler loading capacity of 25T
Coil I.D:DIA 508mm, DIA610mm. Bottom-stand is driven by oil cylinder.
Centering cylinder: DIA125×1100mm, hydraulic expansion cylinder: DIA160×90mm.

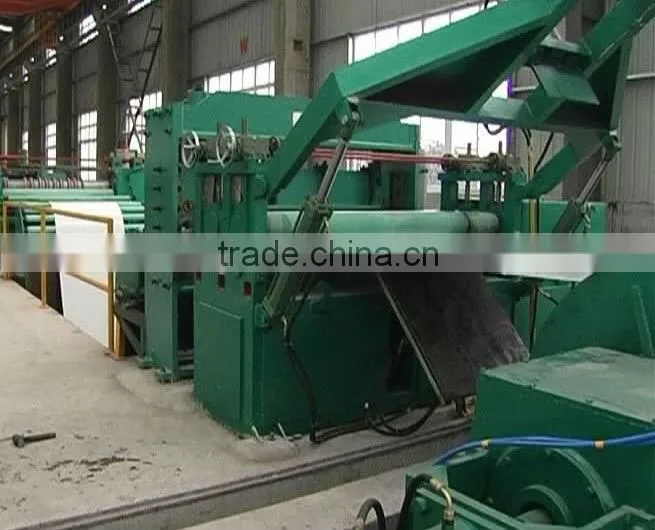

- Hydraulic guiding-head, shovel-head
This is composed of gantry frame stand, hydraulic pressing and guiding arm, hydraulic coil opener, hydraulic shovel-head and balancing device, accompany of seam needle decelerating motor: 5.5kw, chain, sprocket wheel, etc.
Shovel blancing cylinder: DIA63×500mm, shovel telescopic cylinder: DIA80×390mm, guiding cylinder: DIA125×350mm, coil opener cylinder: DIA80×500mm.

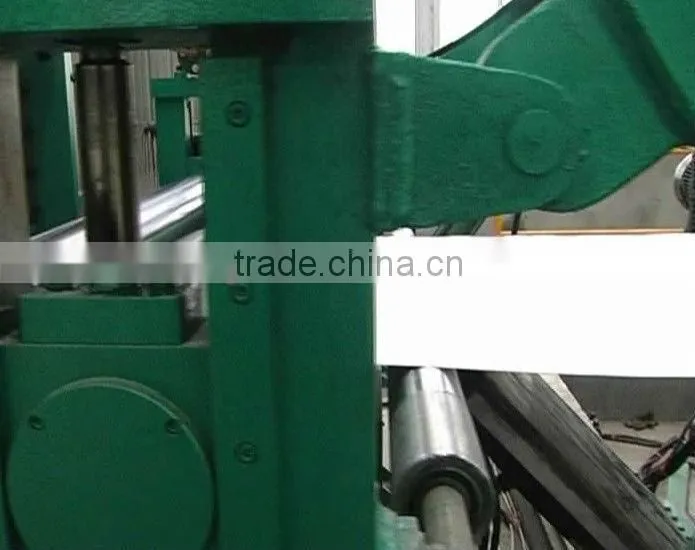

- Hydraulic feeding machine
This is composed of frame , housing, squareness slide, pinch rollers(2pcs), the lifting and pressing device for pinch roller is driven by oil cylinder, accompany of clutch, decelerator350, speed adjustable AC motor: 5.5KW
Pinch press down cylinder: DIA80×150mm
- Hydraulic magazine bridge
This is composed of frame, moveable bridge, hydraulic lifting device, rollers (Chromium coat)etc., hydraulic lifting cylinder: DIA100×290mm
- Guiding (steering)device
This is composed of worktable frame, guiding pole, adjustment device, moveable plane plate and clutch with multiroller, etc.
7. Leveling machine:
Power part: This is composed of power-stand, decelerator, DC speed adjustable motor:30KW(Eurotherm), coupler, power distributing case, universal coupling(15pcs), etc.
Host machine: This is composed of leveling-stand, frame, bottom axe-stand, leveling roller 15pcs(roller diameter: DIA100mm, chromium coat), upper supporting frame, upper &under supporting wheel-stand, supporting wheel, electronic lifting &pressing device, accompany of two motors:2.2KW.
Pinch air cylinder: DIA80×77mm.
8. Encoder and length gauge device
This is composed of coding transition table, encoding adjustment device, encoder, etc., press down air cylinder: DIA100×120mm.
9. Cut to length machine (V type)
4×2000mm
10. Strap conveyer worktable
This is composed of frame, delivering strap, delivering axe, bearing stand, chain, sprocket wheel, strap adjustment device, accompany of seam needle decelerating motor:3KW, lifting cylinder: DIA50×495mm.
11. Pneumatic stacker: length 4m (pneumatic resource shall provide for user-self)
This is composed of falling frame, pneumatic falling orbit(moveable), pneumatic falling device, pneumatic falling adjustment device, length gauge machine, transverse orientation device with two sides, accompany of two sets of seam needle decelerating motor: 2.2KW, one set of motor: 0.75KW, board reversing air cylinder: DIA100×250mm
12. Unloading car: 4m
The operation of this car is driven by motor, accompany of seam needle decelerating motor:3KW, 2 pcs of guiding rail 18 kg/m.
- Electric controlling system
This is composed of DC cabinet and electric operation panels.
-
Hydraulic station(accompany of joints for all pipes, various valves, soft and hard pipes) lubricate oil, hydraulic oil are provided by user-self.
